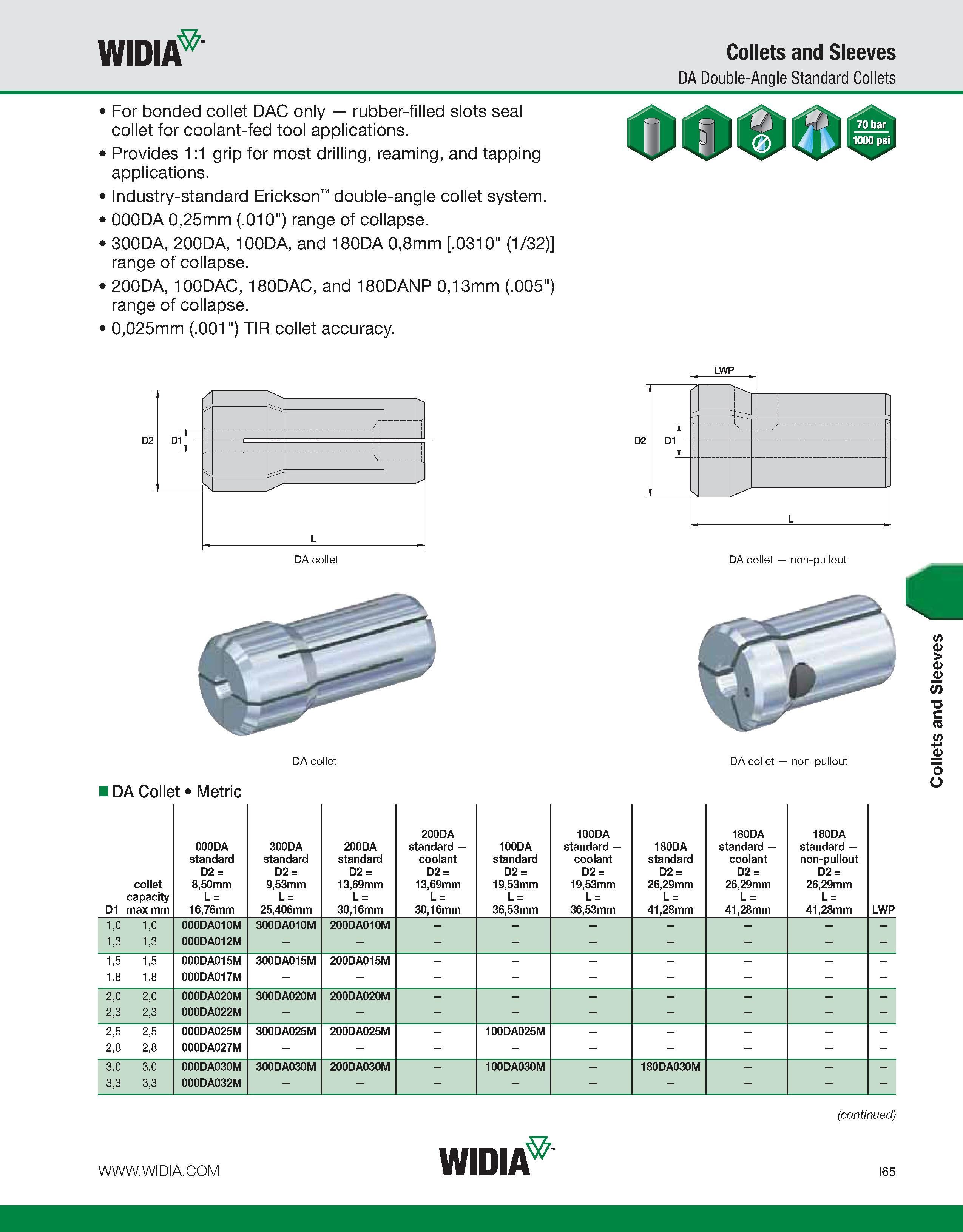

WIDIA Collets and Sleeves DA Double-Angle Standard Collets For bonded collet DAC only rubber-filled slots seal collet for coolant-fed tool applications. Provides 1:1 grip for most drilling, reaming, and tapping applications. Industry-standard Erickson double-angle collet system. 000DA 0,25mm (.010") range of collapse. 300DA, 200DA, 100DA, and 180DA 0,8mm .0310" (1/32) range of collapse. 200DA, 100DAC, 180DAC, and 180DANP 0,13mm (.005") range of collapse. 0,025mm (.001") TIR collet accuracy. B DA collet DA collet i DA Collet Metric DA collet non-pullout DA collet non-pullout D1 collet capacity max mm 000DA standard D2 = 8,50mm L = 16,76mm 300DA standard D2 = 9,53mm L = 25,406mm 200DA standard D2 = 13,69mm L = 30,16mm 200DA standard -coolant D2 = 13,69mm L = 30,16mm 100DA standard D2 = 19,53mm L = 36,53mm 100DA standard -coolant D2 = 19,53mm L = 36,53mm 180DA standard D2 = 26,29mm L = 41,28mm 180DA standard -coolant D2 = 26,29mm L = 41,28mm 180DA standard -non-pullout D2 = 26,29mm L = 41,28mm LWP 1,0 1,0 000DA010M 300DA010M 200DA010M 1,3 1,3 000DA012M 1,5 1,5 000DA015M 300DA015M 200DA015M 1,8 1,8 000DA017M 2,0 2,0 000DA020M 300DA020M 200DA020M 2,3 2,3 000DA022M 2,5 2,5 000DA025M 300DA025M 200DA025M - 100DA025M 2,8 2,8 000DA027M 3,0 3,0 000DA030M 300DA030M 200DA030M - 100DA030M - 180DA030M 3,3 3,3 000DA032M (continued) Collets and Sleeves
