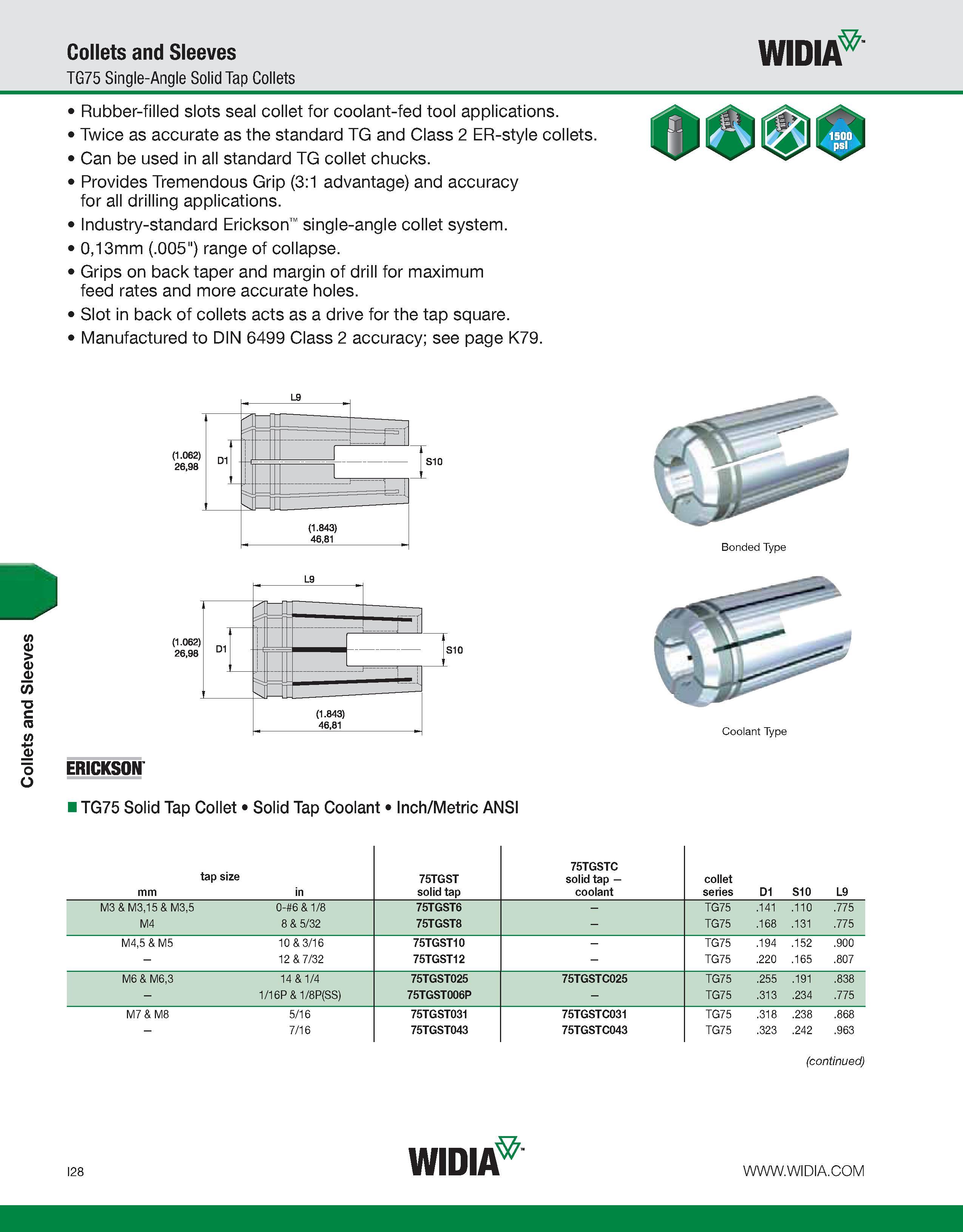

Collets and Sleeves Collets and Sleeves TG75 Single-Angle Solid Tap Collets WIDIA Rubber-filled slots seal collet for coolant-fed tool applications. Twice as accurate as the standard TG and Class 2 ER-style collets. Can be used in all standard TG collet chucks. Provides Tremendous Grip (3:1 advantage) and accuracy for all drilling applications. Industry-standard Erickson single-angle collet system. 0,13mm (.005") range of collapse. Grips on back taper and margin of drill for maximum feed rates and more accurate holes. Slot in back of collets acts as a drive for the tap square. Manufactured to DIN 6499 Class 2 accuracy; see page K79. (1.062) 26,98 D1 (1.062) 26,98 (1.843) 46,81 L9 (1.843) 46,81 S10 Bonded Type Coolant Type ERICKSON i TG75 Solid Tap Collet Solid Tap Coolant Inch/Metric ANSI tap size mm in 75TGST solid tap 75TGSTC solid tap -coolant collet series D1 S10 L9 M3 & M3,15 & M3,5 0- 6& 1/8 75TGST6 - TG75 .141 .110 .775 M4 8 & 5/32 75TGST8 - TG75 .168 .131 .775 M4,5 & M5 10 & 3/16 75TGST10 - TG75 .194 .152 .900 - 12 & 7/32 75TGST12 - TG75 .220 .165 .807 M6 & M6,3 14 & 1/4 75TGST025 75TGSTC025 TG75 .255 .191 .838 - 1/16P & 1/8P(SS) 75TGST006P - TG75 .313 .234 .775 M7 & M8 5/16 75TGST031 75TGSTC031 TG75 .318 .238 .868 - 7/16 75TGST043 75TGSTC043 TG75 .323 .242 .963 (continued) I28 WIDIA
