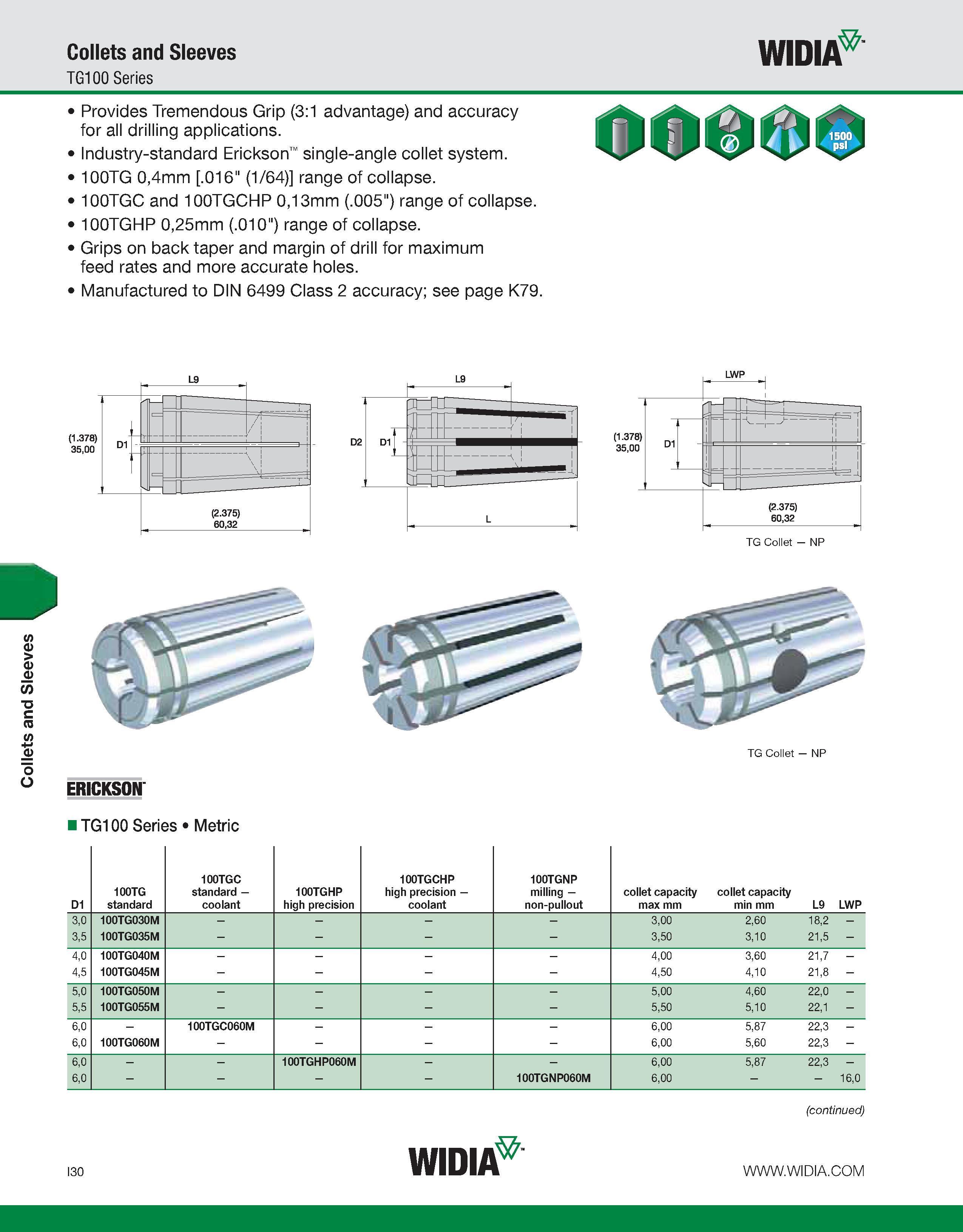

Collets and Sleeves Collets and Sleeves TG100 Series WIDIA Provides Tremendous Grip (3:1 advantage) and accuracy for all drilling applications. Industry-standard Erickson single-angle collet system. 100TG 0,4mm .016” (1/64) range of collapse. 100TGC and 100TGCHP 0,13mm (.005”) range of collapse. 100TGHP 0,25mm (.010”) range of collapse. Grips on back taper and margin of drill for maximum feed rates and more accurate holes. Manufactured to DIN 6499 Class 2 accuracy; see page K79. (1.378) 35,00 ERICKSON i TG100 Series Metric I WP TG Collet - NP TG Collet - NP I30 WIDIA (continued)
