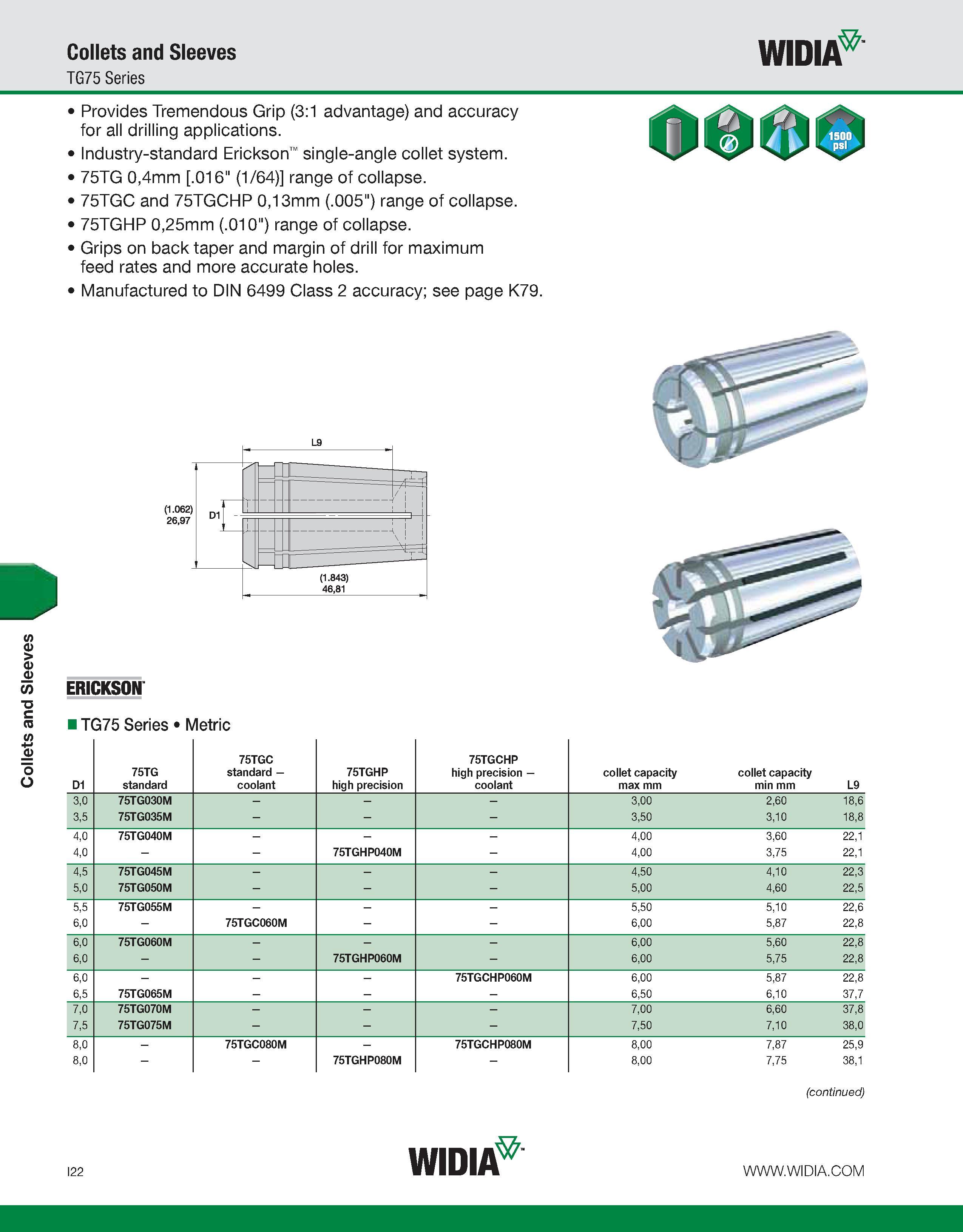

Collets and Sleeves Collets and Sleeves TG75 Series WIDIA Provides Tremendous Grip (3:1 advantage) and accuracy for all drilling applications. Industry-standard Erickson single-angle collet system. 75TG 0,4mm .016" (1/64) range of collapse. 75TGC and 75TGCHP 0,13mm (.005") range of collapse. 75TGHP 0,25mm (.010") range of collapse. Grips on back taper and margin of drill for maximum feed rates and more accurate holes. Manufactured to DIN 6499 Class 2 accuracy; see page K79. (1.062) 26,97 ERICKSON i TG75 Series Metric D1 75TG standard 75TGC standard -coolant 75TGHP high precision 75TGCHP high precision -coolant collet capacity max mm collet capacity min mm L9 3,0 75TG030M - 3,00 2,60 18,6 3,5 75TG035M - 3,50 3,10 18,8 4,0 75TG040M - 4,00 3,60 22,1 4,0 75TGHP040M - 4,00 3,75 22,1 4,5 75TG045M - 4,50 4,10 22,3 5,0 75TG050M - 5,00 4,60 22,5 5,5 75TG055M - 5,50 5,10 22,6 6,0 - 75TGC060M 6,00 5,87 22,8 6,0 75TG060M - 6,00 5,60 22,8 6,0 75TGHP060M - 6,00 5,75 22,8 6,0 - 75TGCHP060M 6,00 5,87 22,8 6,5 75TG065M - 6,50 6,10 37,7 7,0 75TG070M - 7,00 6,60 37,8 7,5 75TG075M - 7,50 7,10 38,0 8,0 - 75TGC080M - 75TGCHP080M 8,00 7,87 25,9 8,0 75TGHP080M - 8,00 7,75 38,1 (continued) I22 WIDIA
