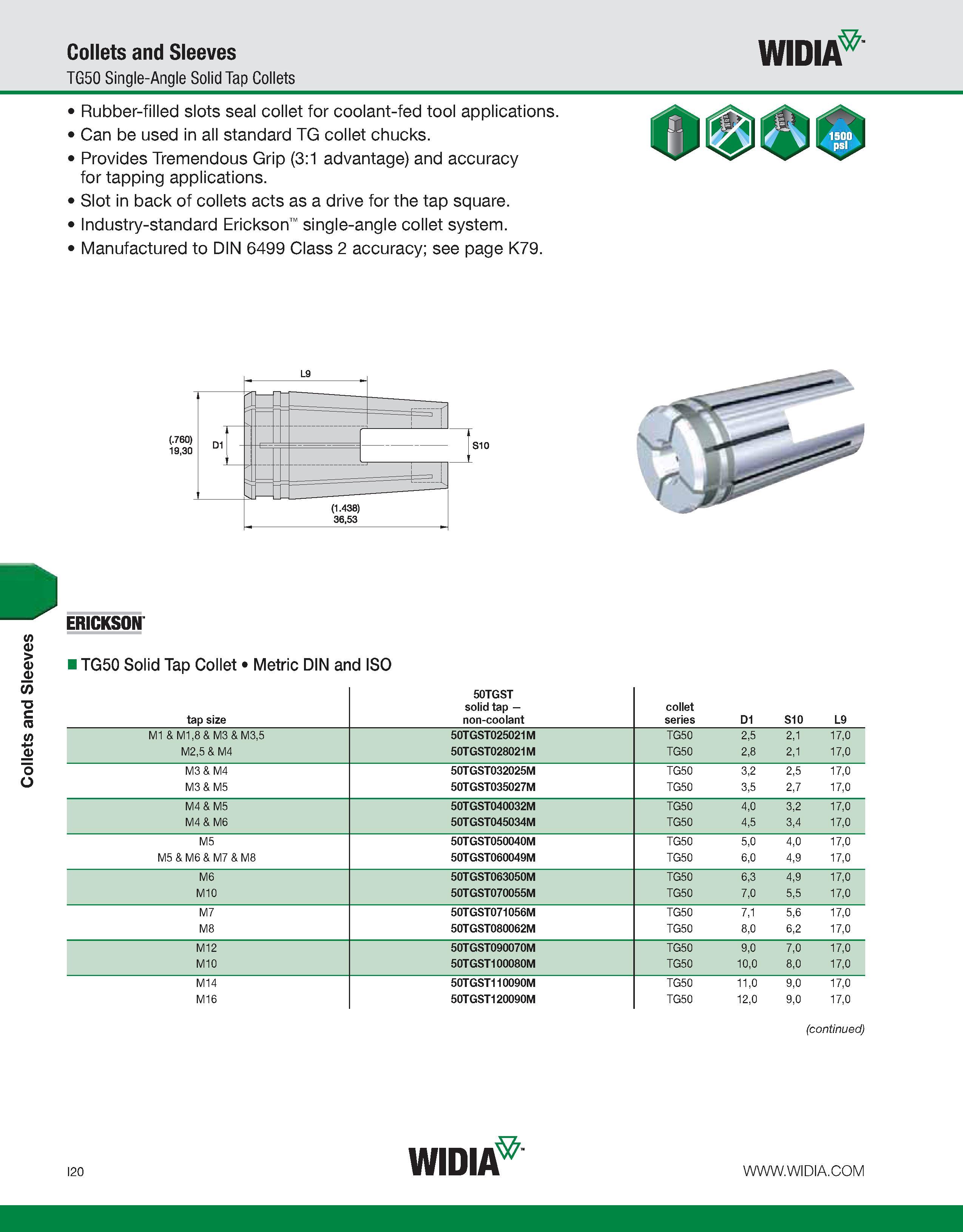

Collets and Sleeves Collets and Sleeves WIDIA TG50 Single-Angle Solid Tap Collets Rubber-filled slots seal collet for coolant-fed tool applications. Can be used in all standard TG collet chucks. Provides Tremendous Grip (3:1 advantage) and accuracy for tapping applications. Slot in back of collets acts as a drive for the tap square. Industry-standard Erickson single-angle collet system. Manufactured to DIN 6499 Class 2 accuracy; see page K79. TG50 Solid Tap Collet Metric DIN and ISO tap size 50TGST solid tap -non-coolant collet series D1 S10 L9 M1 & M1,8 & M3 & M3,5 50TGST025021M TG50 2,5 2,1 17,0 M2,5 & M4 50TGST028021M TG50 2,8 2,1 17,0 M3 & M4 50TGST032025M TG50 3,2 2,5 17,0 M3 & M5 50TGST035027M TG50 3,5 2,7 17,0 M4 & M5 50TGST040032M TG50 4,0 3,2 17,0 M4 & M6 50TGST045034M TG50 4,5 3,4 17,0 M5 50TGST050040M TG50 5,0 4,0 17,0 M5 & M6 & M7 & M8 50TGST060049M TG50 6,0 4,9 17,0 M6 50TGST063050M TG50 6,3 4,9 17,0 M10 50TGST070055M TG50 7,0 5,5 17,0 M7 50TGST071056M TG50 7,1 5,6 17,0 M8 50TGST080062M TG50 8,0 6,2 17,0 M12 50TGST090070M TG50 9,0 7,0 17,0 M10 50TGST100080M TG50 10,0 8,0 17,0 M14 50TGST110090M TG50 11,0 9,0 17,0 M16 50TGST120090M TG50 12,0 9,0 17,0 (continued) I20 WIDIA
