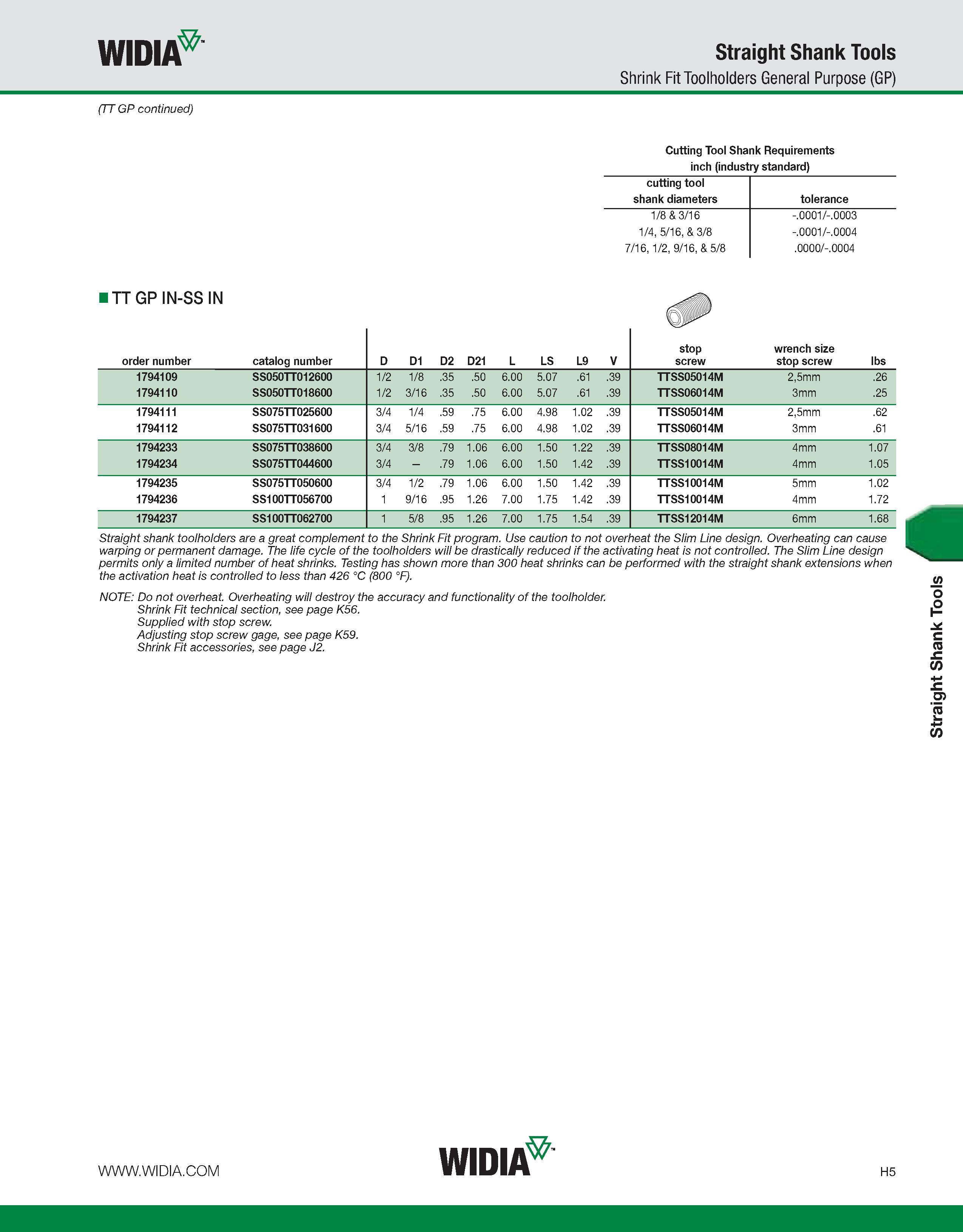

WIDIA Straight Shank Tools Shrink Fit Toolholders General Purpose (GP) (TT GP continued) Cutting Tool Shank Requirements inch (industry standard) cutting tool shank diameters tolerance 1/8 & 3/16 -.0001/-.0003 1/4, 5/16, & 3/8 -.0001/-.0004 7/16, 1/2, 9/16, & 5/8 .0000/-.0004 ITT GP IN-SS IN order number catalog number D D1 D2 D21 L LS L9 V stop screw wrench size stop screw lbs 1794109 SS050TT012600 1/2 1/8 .35 .50 6.00 5.07 .61 .39 TTSS05014M 2,5mm .26 1794110 SS050TT018600 1/2 3/16 .35 .50 6.00 5.07 .61 .39 TTSS06014M 3mm .25 1794111 SS075TT025600 3/4 1/4 .59 .75 6.00 4.98 1.02 .39 TTSS05014M 2,5mm .62 1794112 SS075TT031600 3/4 5/16 .59 .75 6.00 4.98 1.02 .39 TTSS06014M 3mm .61 1794233 SS075TT038600 3/4 3/8 .79 1.06 6.00 1.50 1.22 .39 TTSS08014M 4mm 1.07 1794234 SS075TT044600 3/4 - .79 1.06 6.00 1.50 1.42 .39 TTSS10014M 4mm 1.05 1794235 SS075TT050600 3/4 1/2 .79 1.06 6.00 1.50 1.42 .39 TTSS10014M 5mm 1.02 1794236 SS100TT056700 1 9/16 .95 1.26 7.00 1.75 1.42 .39 TTSS10014M 4mm 1.72 1794237 SS100TT062700 1 5/8 .95 1.26 7.00 1.75 1.54 .39 TTSS12014M 6mm 1.68 Straight shank toolholders are a great complement to the Shrink Fit program. Use caution to not overheat the Slim Line design. Overheating can cause warping or permanent damage. The life cycle of the toolholders will be drastically reduced if the activating heat is not controlled. The Slim Line design permits only a limited number of heat shrinks. Testing has shown more than 300 heat shrinks can be performed with the straight shank extensions when the activation heat is controlled to less than 426 °C (800 °F). NOTE: Do not overheat. Overheating will destroy the accuracy and functionality of the toolholder. Shrink Fit technical section, see page K56. Supplied with stop screw. Adjusting stop screw gage, see page K59. Shrink Fit accessories, see page J2. Straight Shank Tools
