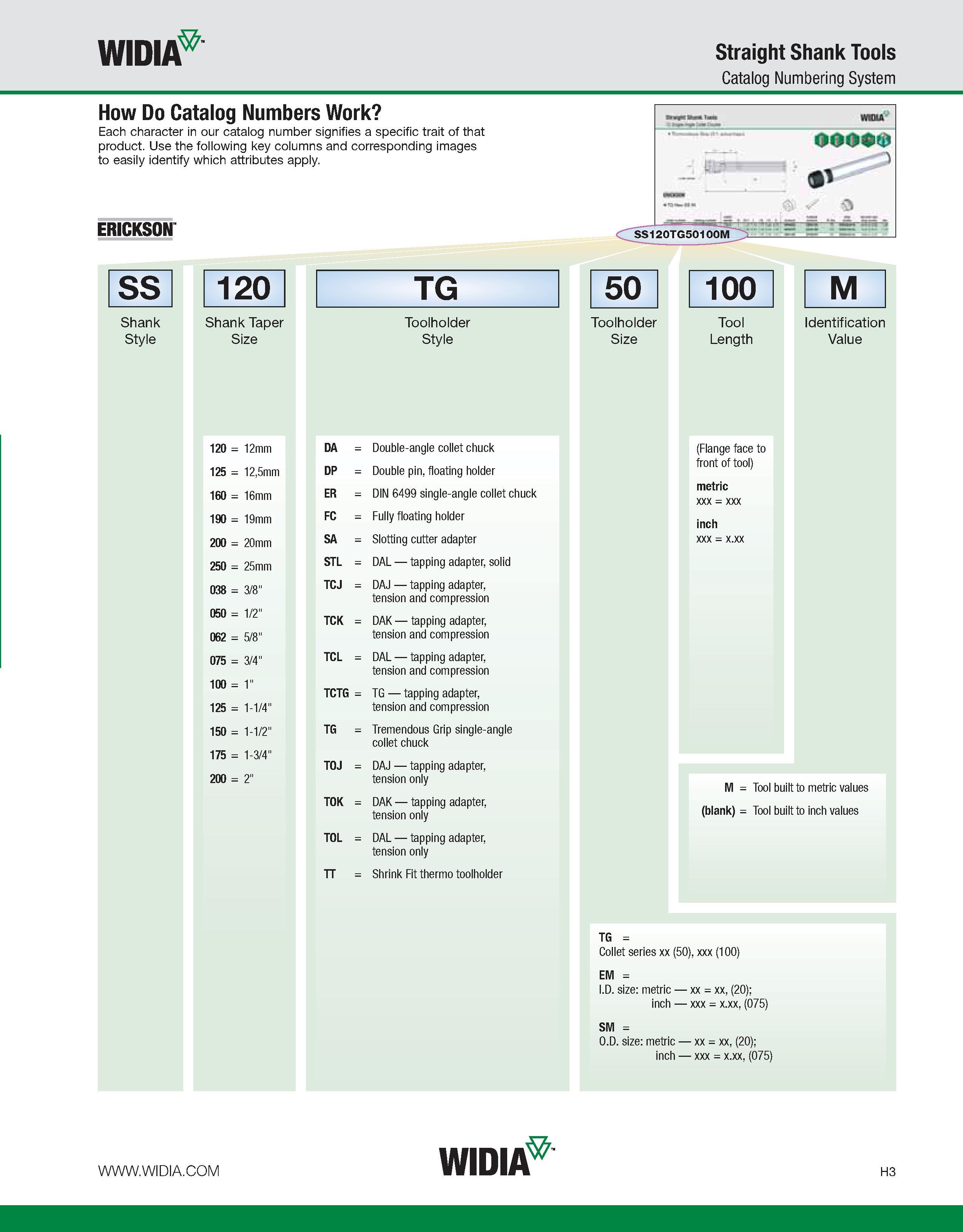

WIDIA Straight Shank Tools Catalog Numbering System How Do Catalog Numbers Work Each character in our catalog number signifies a specific trait of that product. Use the following key columns and corresponding images to easily identify which attributes apply. ERICKSON SS 120 TG 50 Shank Style Shank Taper Size 120 = 12mm 125 = 12,5mm 160 = 16mm 190 = 19mm 200 = 20mm 250 = 25mm 038 = 3/8" 050 = 1/2" 062 = 5/8" 075 = 3/4" 100 = 1" 125 = 1-1/4" 150 = 1-1/2" 175 = 1-3/4" 200 = 2" Toolholder Style DA = DP = ER = FC = SA = STL = TCJ = TCK = TCL = TCTG = TG = TOJ = TOK = TOL = TT Double-angle collet chuck Double pin, floating holder DIN 6499 single-angle collet chuck Fully floating holder Slotting cutter adapter DAL tapping adapter, solid DAJ tapping adapter, tension and compression DAK tapping adapter, tension and compression DAL tapping adapter, tension and compression TG tapping adapter, tension and compression Tremendous Grip single-angle collet chuck DAJ tapping adapter, tension only DAK tapping adapter, tension only DAL tapping adapter, tension only Toolholder Size M = Tool built to metric values (blank) = Tool built to inch values = Shrink Fit thermo toolholder TG = Collet series xx (50), xxx (100) EM = I.D. size: metric xx = xx, (20); inch xxx = x.xx, (075) SM = O.D. size: metric xx = xx, (20); inch xxx = x.xx, (075)
