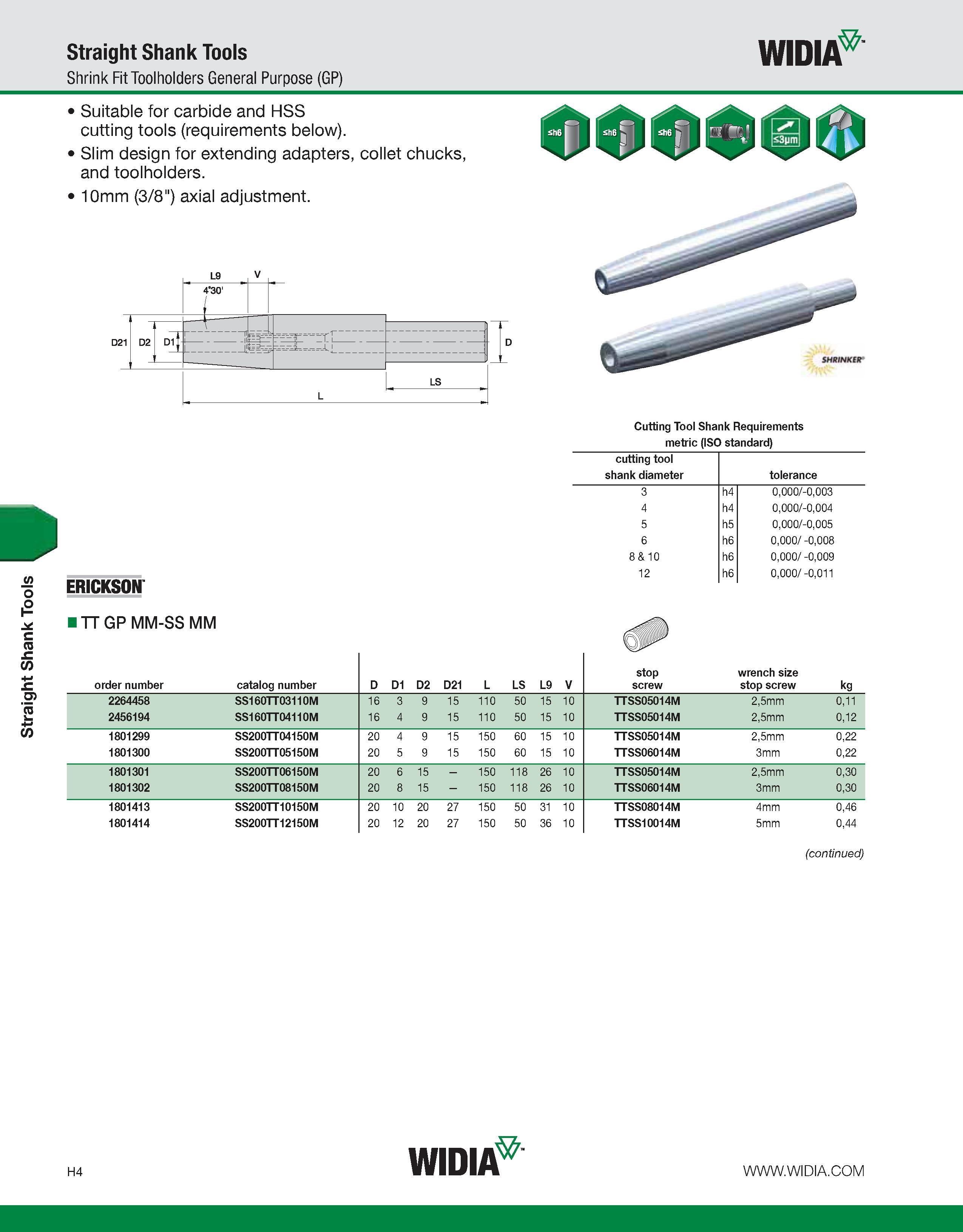

Straight Shank Tools Straight Shank Tools Shrink Fit Toolholders General Purpose (GP) WIDIA Suitable for carbide and HSS cutting tools (requirements below). Slim design for extending adapters, collet chucks, and toolholders. 10mm (3/8") axial adjustment. D21 D2 D1 JL L9 4’30' LS ERICKSON Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 3 h4 0,000/-0,003 4 h4 0,000/-0,004 5 h5 0,000/-0,005 6 h6 0,000/ -0,008 8 & 10 h6 0,000/ -0,009 12 h6 0,000/ -0,011 ITT GP MM-SS MM order number catalog number D D1 D2 D21 L LS L9 V stop screw wrench size stop screw kg 2264458 SS160TT03110M 16 3 9 15 110 50 15 10 TTSS05014M 2,5mm 0,11 2456194 SS160TT04110M 16 4 9 15 110 50 15 10 TTSS05014M 2,5mm 0,12 1801299 SS200TT04150M 20 4 9 15 150 60 15 10 TTSS05014M 2,5mm 0,22 1801300 SS200TT05150M 20 5 9 15 150 60 15 10 TTSS06014M 3mm 0,22 1801301 SS200TT06150M 20 6 15 - 150 118 26 10 TTSS05014M 2,5mm 0,30 1801302 SS200TT08150M 20 8 15 - 150 118 26 10 TTSS06014M 3mm 0,30 1801413 SS200TT10150M 20 10 20 27 150 50 31 10 TTSS08014M 4mm 0,46 1801414 SS200TT12150M 20 12 20 27 150 50 36 10 TTSS10014M 5mm 0,44 (continued) H4 WIDIA
