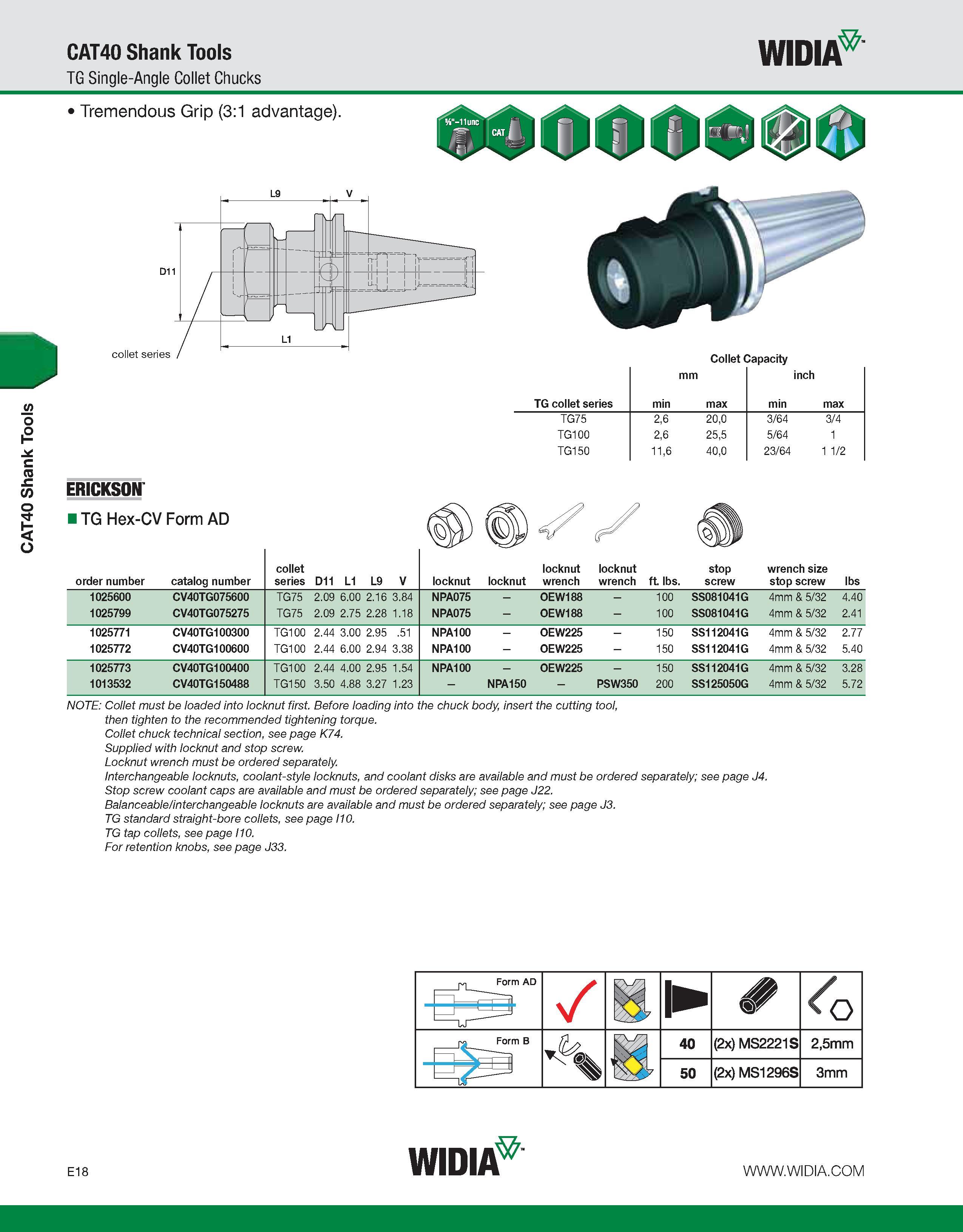

CAT40 Shank Tools CAT40 Shank Tools TG Single-Angle Collet Chucks WIDIA Tremendous Grip (3:1 advantage). Collet Capacity TG collet series mm min max inch min max TG75 2,6 20,0 3/64 3/4 TG100 2,6 25,5 5/64 1 TG150 11,6 40,0 23/64 1 1/2 ERICKSON I TG Hex-CV Form AD order number catalog number collet series D11 L1 L9 V locknut locknut locknut wrench locknut wrench ft. lbs. stop screw wrench size stop screw lbs 1025600 CV40TG075600 TG75 2.09 6.00 2.16 3.84 NPA075 - OEW188 - 100 SS081041G 4mm & 5/32 4.40 1025799 CV40TG075275 TG75 2.09 2.75 2.28 1.18 NPA075 - OEW188 - 100 SS081041G 4mm & 5/32 2.41 1025771 CV40TG100300 TG100 2.44 3.00 2.95 .51 NPA100 - OEW225 - 150 SS112041G 4mm & 5/32 2.77 1025772 CV40TG100600 TG100 2.44 6.00 2.94 3.38 NPA100 - OEW225 - 150 SS112041G 4mm & 5/32 5.40 1025773 CV40TG100400 TG100 2.44 4.00 2.95 1.54 NPA100 - OEW225 - 150 SS112041G 4mm & 5/32 3.28 1013532 CV40TG150488 TG150 3.50 4.88 3.27 1.23 - NPA150 - PSW350 200 SS125050G 4mm & 5/32 5.72 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable locknuts, coolant-style locknuts, and coolant disks are available and must be ordered separately; see page J4. Stop screw coolant caps are available and must be ordered separately; see page J22. Balanceable/interchangeable locknuts are available and must be ordered separately; see page J3. TG standard straight-bore collets, see page I10. TG tap collets, see page I10. For retention knobs, see page J33.
