717 Каталог WIDIA 2011 Инструментальная оснастка для металлорежущих станков Стр.E17

Каталог WIDIA 2011 Инструментальная оснастка Стр. E17 0717 ENG Lab2u

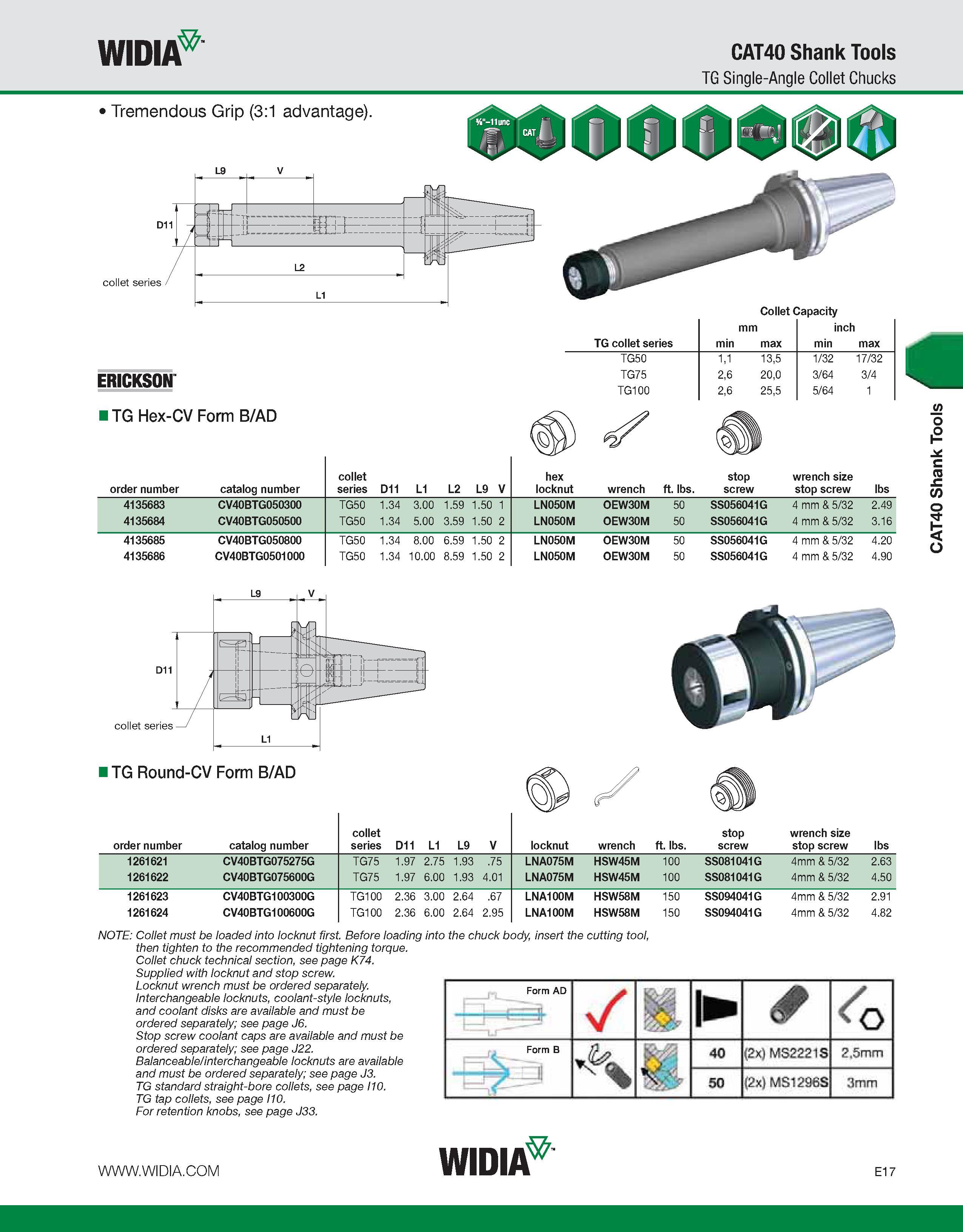

WIDIA CAT40 Shank Tools TG Single-Angle Collet Chucks Tremendous Grip (3:1 advantage). Collet Capacity ERICKSON mm inch TG collet series min max min max TG50 1,1 13,5 1/32 17/32 TG75 2,6 20,0 3/64 3/4 TG100 2,6 25,5 5/64 1 ITG Hex-CV Form B/AD order number catalog number collet series D11 L1 L2 L9 V hex locknut wrench ft. lbs. stop screw wrench size stop screw lbs 4135683 CV40BTG050300 TG50 1.34 3.00 1.59 1.50 1 LN050M OEW30M 50 SS056041G 4 mm & 5/32 2.49 4135684 CV40BTG050500 TG50 1.34 5.00 3.59 1.50 2 LN050M OEW30M 50 SS056041G 4 mm & 5/32 3.16 4135685 CV40BTG050800 TG50 1.34 8.00 6.59 1.50 2 LN050M OEW30M 50 SS056041G 4 mm & 5/32 4.20 4135686 CV40BTG0501000 TG50 1.34 10.00 8.59 1.50 2 LN050M OEW30M 50 SS056041G 4 mm & 5/32 4.90 ITG Round-CV Form B/AD order number catalog number collet series D11 L1 L9 V locknut wrench ft. lbs. stop screw wrench size stop screw lbs 1261621 CV40BTG075275G TG75 1.97 2.75 1.93 .75 LNA075M HSW45M 100 SS081041G 4mm & 5/32 2.63 1261622 CV40BTG075600G TG75 1.97 6.00 1.93 4.01 LNA075M HSW45M 100 SS081041G 4mm & 5/32 4.50 1261623 CV40BTG100300G TG100 2.36 3.00 2.64 .67 LNA100M HSW58M 150 SS094041G 4mm & 5/32 2.91 1261624 CV40BTG100600G TG100 2.36 6.00 2.64 2.95 LNA100M HSW58M 150 SS094041G 4mm & 5/32 4.82 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable locknuts, coolant-style locknuts, and coolant disks are available and must be ordered separately; see page J6. Stop screw coolant caps are available and must be ordered separately; see page J22. Balanceable/interchangeable locknuts are available and must be ordered separately; see page J3. TG standard straight-bore collets, see page I10. TG tap collets, see page I10. For retention knobs, see page J33. Form AD -I j i i d
