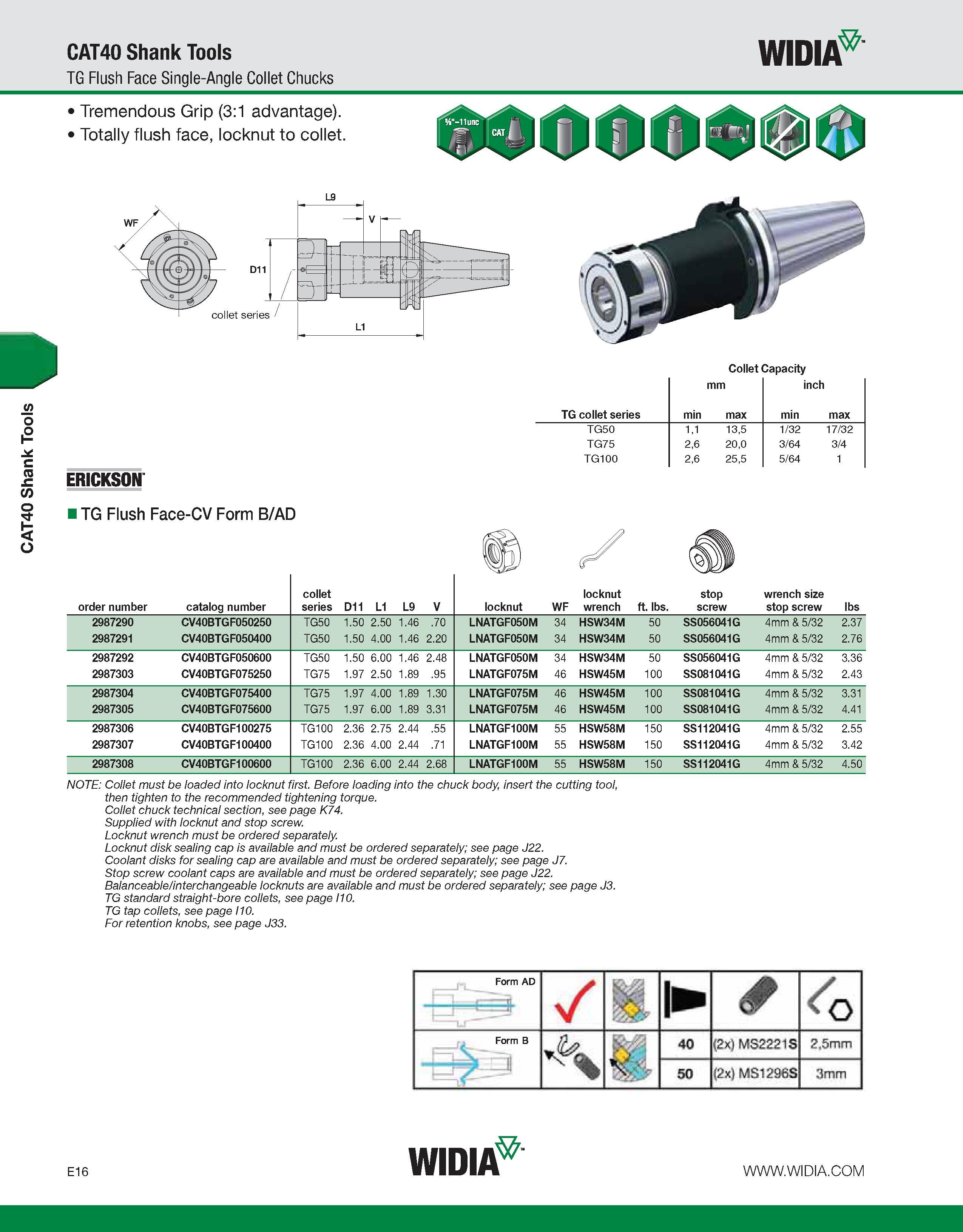

CAT40 Shank Tools CAT40 Shank Tools TG Flush Face Single-Angle Collet Chucks WIDIA Tremendous Grip (3:1 advantage). Totally flush face, locknut to collet. ERICKSON i TG Flush Face-CV Form B/AD Collet Capacity TG collet series min mm max min inch max TG50 1,1 13,5 1/32 17/32 TG75 2,6 20,0 3/64 3/4 TG100 2,6 25,5 5/64 1 order number catalog number collet series D11 L1 L9 V locknut WF locknut wrench ft. lbs. stop screw wrench size stop screw lbs 2987290 CV40BTGF050250 TG50 1.50 2.50 1.46 .70 LNATGF050M 34 HSW34M 50 SS056041G 4mm & 5/32 2.37 2987291 CV40BTGF050400 TG50 1.50 4.00 1.46 2.20 LNATGF050M 34 HSW34M 50 SS056041G 4mm & 5/32 2.76 2987292 CV40BTGF050600 TG50 1.50 6.00 1.46 2.48 LNATGF050M 34 HSW34M 50 SS056041G 4mm & 5/32 3.36 2987303 CV40BTGF075250 TG75 1.97 2.50 1.89 .95 LNATGF075M 46 HSW45M 100 SS081041G 4mm & 5/32 2.43 2987304 CV40BTGF075400 TG75 1.97 4.00 1.89 1.30 LNATGF075M 46 HSW45M 100 SS081041G 4mm & 5/32 3.31 2987305 CV40BTGF075600 TG75 1.97 6.00 1.89 3.31 LNATGF075M 46 HSW45M 100 SS081041G 4mm & 5/32 4.41 2987306 CV40BTGF100275 TG100 2.36 2.75 2.44 .55 LNATGF100M 55 HSW58M 150 SS112041G 4mm & 5/32 2.55 2987307 CV40BTGF100400 TG100 2.36 4.00 2.44 .71 LNATGF100M 55 HSW58M 150 SS112041G 4mm & 5/32 3.42 2987308 CV40BTGF100600 TG100 2.36 6.00 2.44 2.68 LNATGF100M 55 HSW58M 150 SS112041G 4mm & 5/32 4.50 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Locknut disk sealing cap is available and must be ordered separately; see page J22. Coolant disks for sealing cap are available and must be ordered separately; see page J7. Stop screw coolant caps are available and must be ordered separately; see page J22. Balanceable/interchangeable locknuts are available and must be ordered separately; see page J3. TG standard straight-bore collets, see page I10. TG tap collets, see page I10. For retention knobs, see page J33. E16 WIDIA
