639 Каталог WIDIA 2011 Инструментальная оснастка для металлорежущих станков Стр.D31

Каталог WIDIA 2011 Инструментальная оснастка Стр. D31 0639 ENG Lab2u

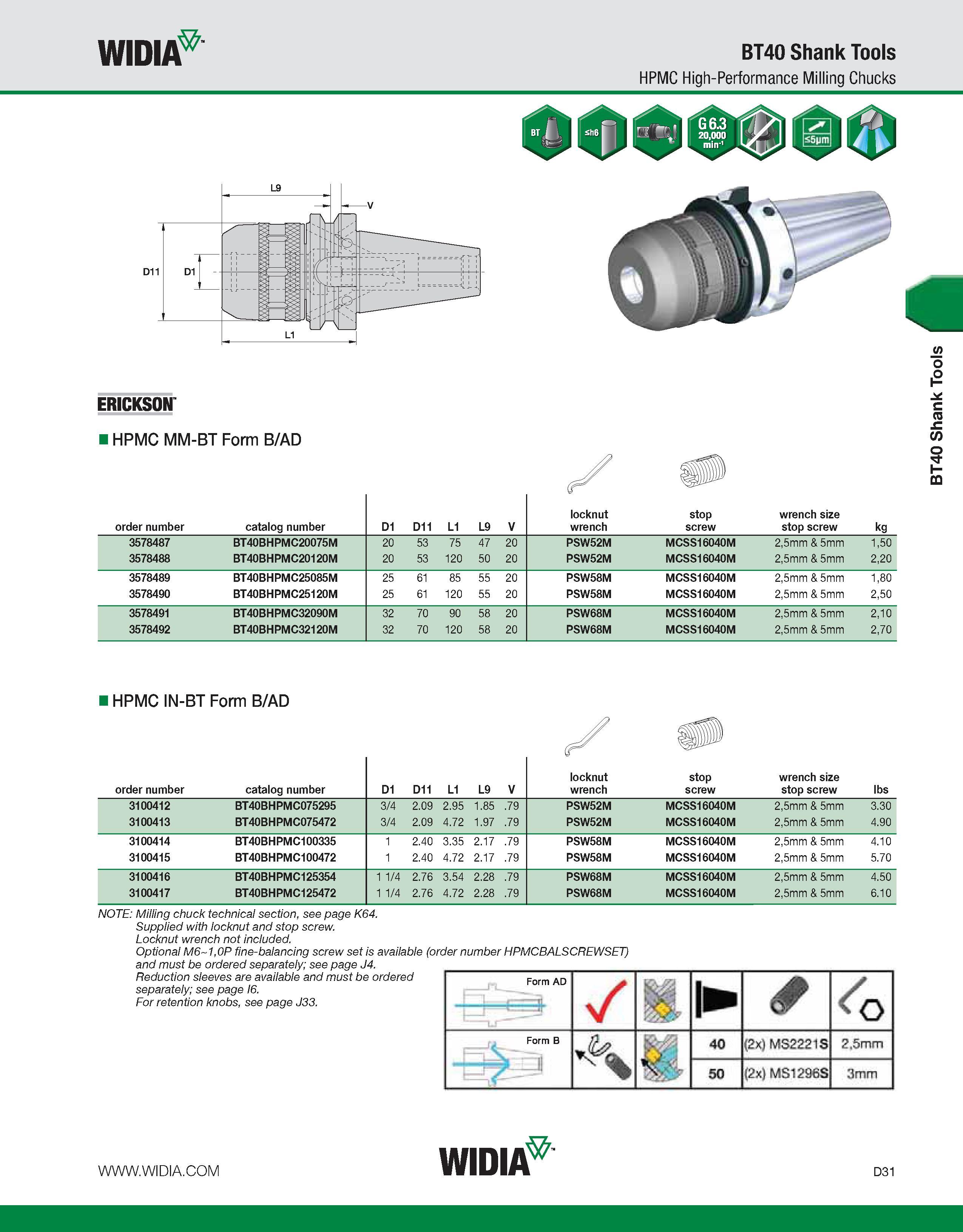

WIDIA BT40 Shank Tools HPMC High-Performance Milling Chucks m ERICKSON I HPMC MM-BT Form B/AD order number catalog number D1 D11 L1 L9 V locknut wrench stop screw wrench size stop screw kg 3578487 BT40BHPMC20075M 20 53 75 47 20 PSW52M MCSS16040M 2,5mm & 5mm 1,50 3578488 BT40BHPMC20120M 20 53 120 50 20 PSW52M MCSS16040M 2,5mm & 5mm 2,20 3578489 BT40BHPMC25085M 25 61 85 55 20 PSW58M MCSS16040M 2,5mm & 5mm 1,80 3578490 BT40BHPMC25120M 25 61 120 55 20 PSW58M MCSS16040M 2,5mm & 5mm 2,50 3578491 BT40BHPMC32090M 32 70 90 58 20 PSW68M MCSS16040M 2,5mm & 5mm 2,10 3578492 BT40BHPMC32120M 32 70 120 58 20 PSW68M MCSS16040M 2,5mm & 5mm 2,70 HPMC IN-BT Form B/AD order number catalog number D1 D11 L1 L9 V locknut wrench stop screw wrench size stop screw lbs 3100412 BT40BHPMC075295 3/4 2.09 2.95 1.85 .79 PSW52M MCSS16040M 2,5mm & 5mm 3.30 3100413 BT40BHPMC075472 3/4 2.09 4.72 1.97 .79 PSW52M MCSS16040M 2,5mm & 5mm 4.90 3100414 BT40BHPMC100335 1 2.40 3.35 2.17 .79 PSW58M MCSS16040M 2,5mm & 5mm 4.10 3100415 BT40BHPMC100472 1 2.40 4.72 2.17 .79 PSW58M MCSS16040M 2,5mm & 5mm 5.70 3100416 BT40BHPMC125354 1 1/4 2.76 3.54 2.28 .79 PSW68M MCSS16040M 2,5mm & 5mm 4.50 3100417 BT40BHPMC125472 1 1/4 2.76 4.72 2.28 .79 PSW68M MCSS16040M 2,5mm & 5mm 6.10 NOTE: Milling chuck technical section, see page K64. Supplied with locknut and stop screw. Locknut wrench not included. Optional M6 1,0P fine-balancing screw set is available (order number HPMCBALSCREWSET) and must be ordered separately; see page J4. Reduction sleeves are available and must be ordered separately; see page I6. For retention knobs, see page J33. BT40 Shank Tools
