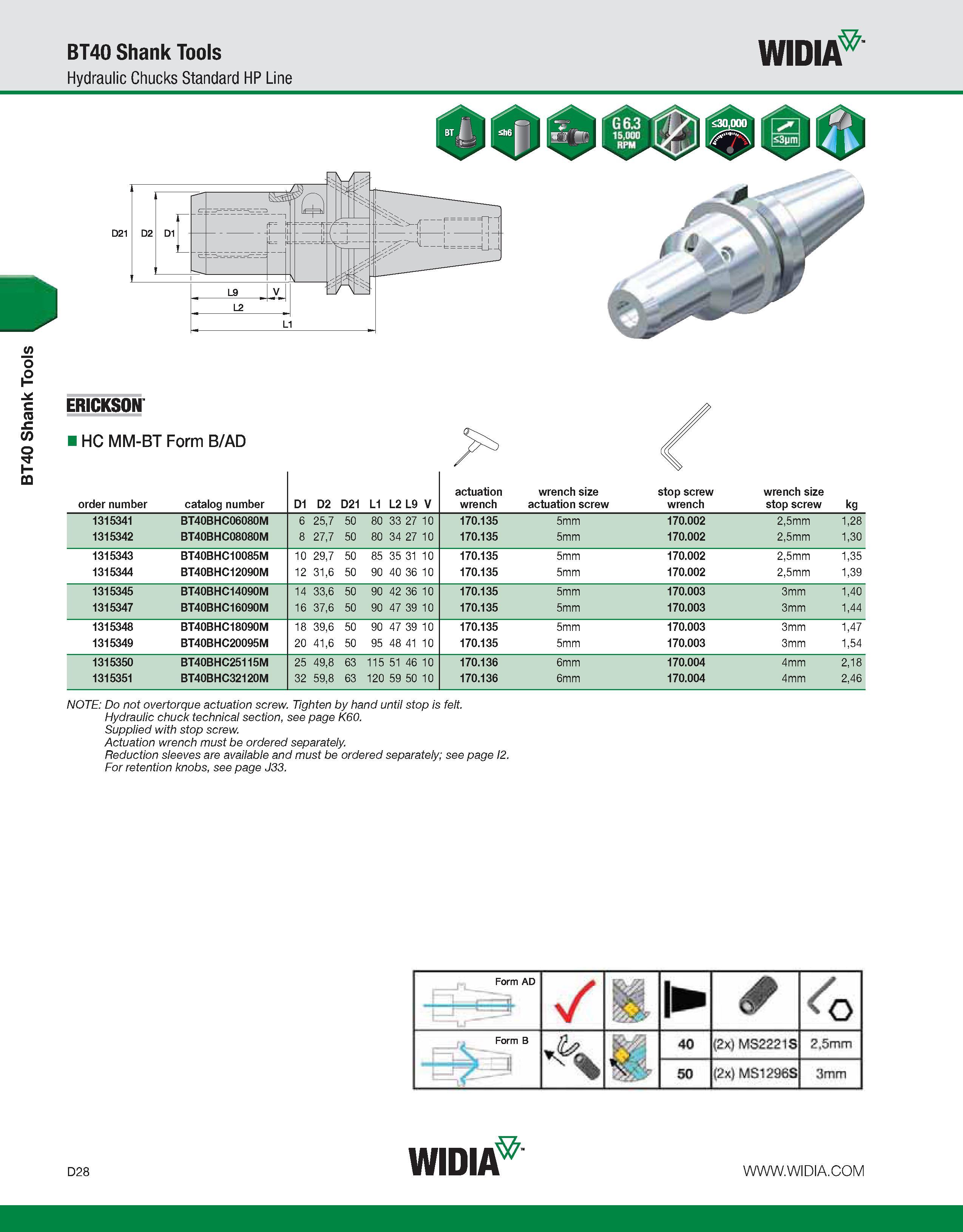

BT40 Shank Tools BT40 Shank Tools Hydraulic Chucks Standard HP Line WIDIA ERICKSON HC MM-BT Form B/AD order number catalog number D1 D2 D21 L1 L2 L9 V actuation wrench wrench size actuation screw stop screw wrench wrench size stop screw kg 1315341 BT40BHC06080M 6 25,7 50 80 33 27 10 170.135 5mm 170.002 2,5mm 1,28 1315342 BT40BHC08080M 8 27,7 50 80 34 27 10 170.135 5mm 170.002 2,5mm 1,30 1315343 BT40BHC10085M 10 29,7 50 85 35 31 10 170.135 5mm 170.002 2,5mm 1,35 1315344 BT40BHC12090M 12 31,6 50 90 40 36 10 170.135 5mm 170.002 2,5mm 1,39 1315345 BT40BHC14090M 14 33,6 50 90 42 36 10 170.135 5mm 170.003 3mm 1,40 1315347 BT40BHC16090M 16 37,6 50 90 47 39 10 170.135 5mm 170.003 3mm 1,44 1315348 BT40BHC18090M 18 39,6 50 90 47 39 10 170.135 5mm 170.003 3mm 1,47 1315349 BT40BHC20095M 20 41,6 50 95 48 41 10 170.135 5mm 170.003 3mm 1,54 1315350 BT40BHC25115M 25 49,8 63 115 51 46 10 170.136 6mm 170.004 4mm 2,18 1315351 BT40BHC32120M 32 59,8 63 120 59 50 10 170.136 6mm 170.004 4mm 2,46 NOTE: Do not overtorque actuation screw. Tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Supplied with stop screw. Actuation wrench must be ordered separately. Reduction sleeves are available and must be ordered separately; see page I2. For retention knobs, see page J33. Form AD ' '1 v/ Ito
