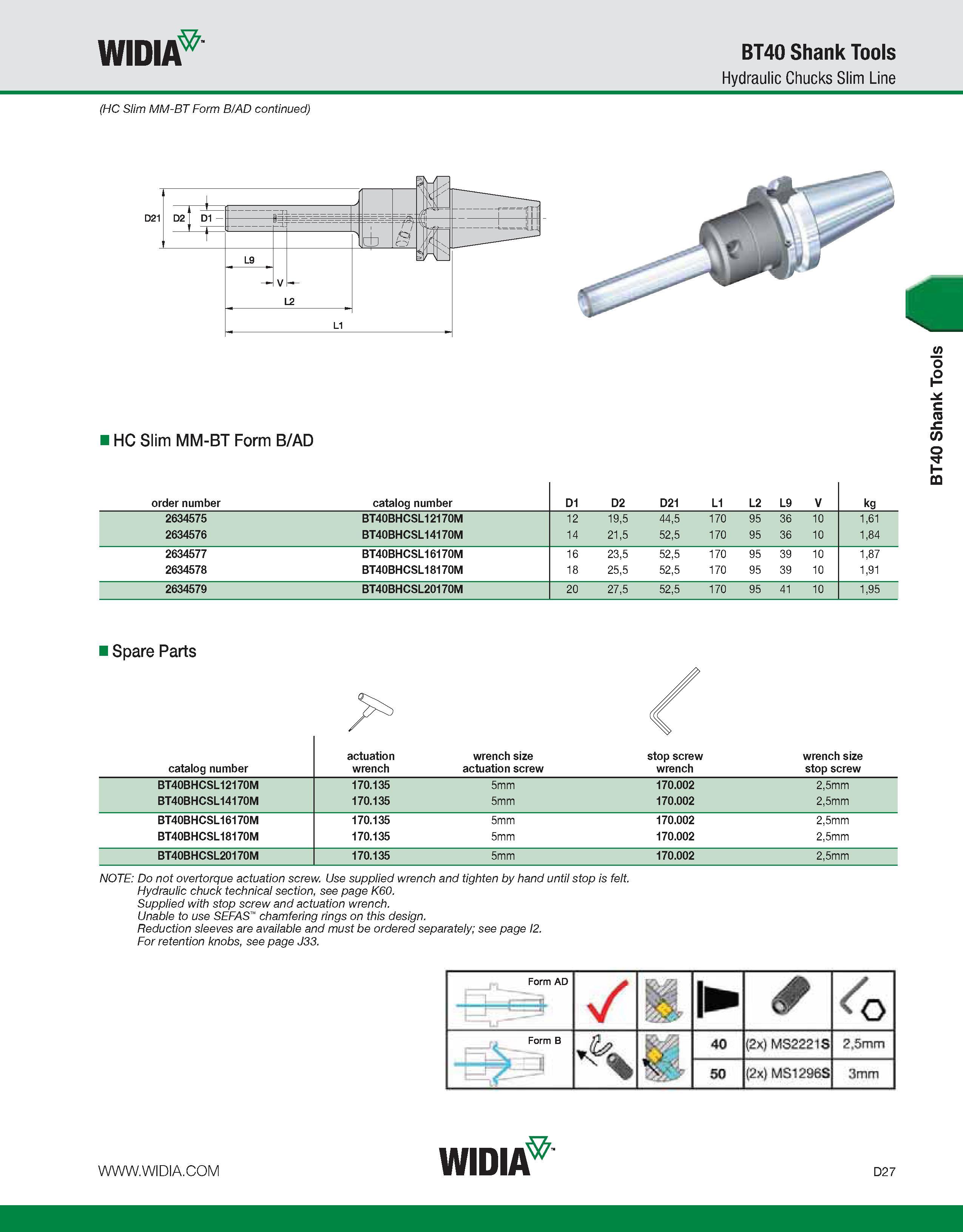

WIDIA BT40 Shank Tools Hydraulic Chucks Slim Line (HC Slim MM-BT Form B/AD continued) HC Slim MM-BT Form B/AD order number catalog number D1 D2 D21 L1 L2 L9 V kg 2634575 BT40BHCSL12170M 12 19,5 44,5 170 95 36 10 1,61 2634576 BT40BHCSL14170M 14 21,5 52,5 170 95 36 10 1,84 2634577 BT40BHCSL16170M 16 23,5 52,5 170 95 39 10 1,87 2634578 BT40BHCSL18170M 18 25,5 52,5 170 95 39 10 1,91 2634579 BT40BHCSL20170M 20 27,5 52,5 170 95 41 10 1,95 Spare Parts catalog number actuation wrench wrench size actuation screw stop screw wrench wrench size stop screw BT40BHCSL12170M 170.135 5mm 170.002 2,5mm BT40BHCSL14170M 170.135 5mm 170.002 2,5mm BT40BHCSL16170M 170.135 5mm 170.002 2,5mm BT40BHCSL18170M 170.135 5mm 170.002 2,5mm BT40BHCSL20170M 170.135 5mm 170.002 2,5mm NOTE: Do not overtorque actuation screw. Use supplied wrench and tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Supplied with stop screw and actuation wrench. Unable to use SEFAS chamfering rings on this design. Reduction sleeves are available and must be ordered separately; see page I2. For retention knobs, see page J33. BT40 Shank Tools
