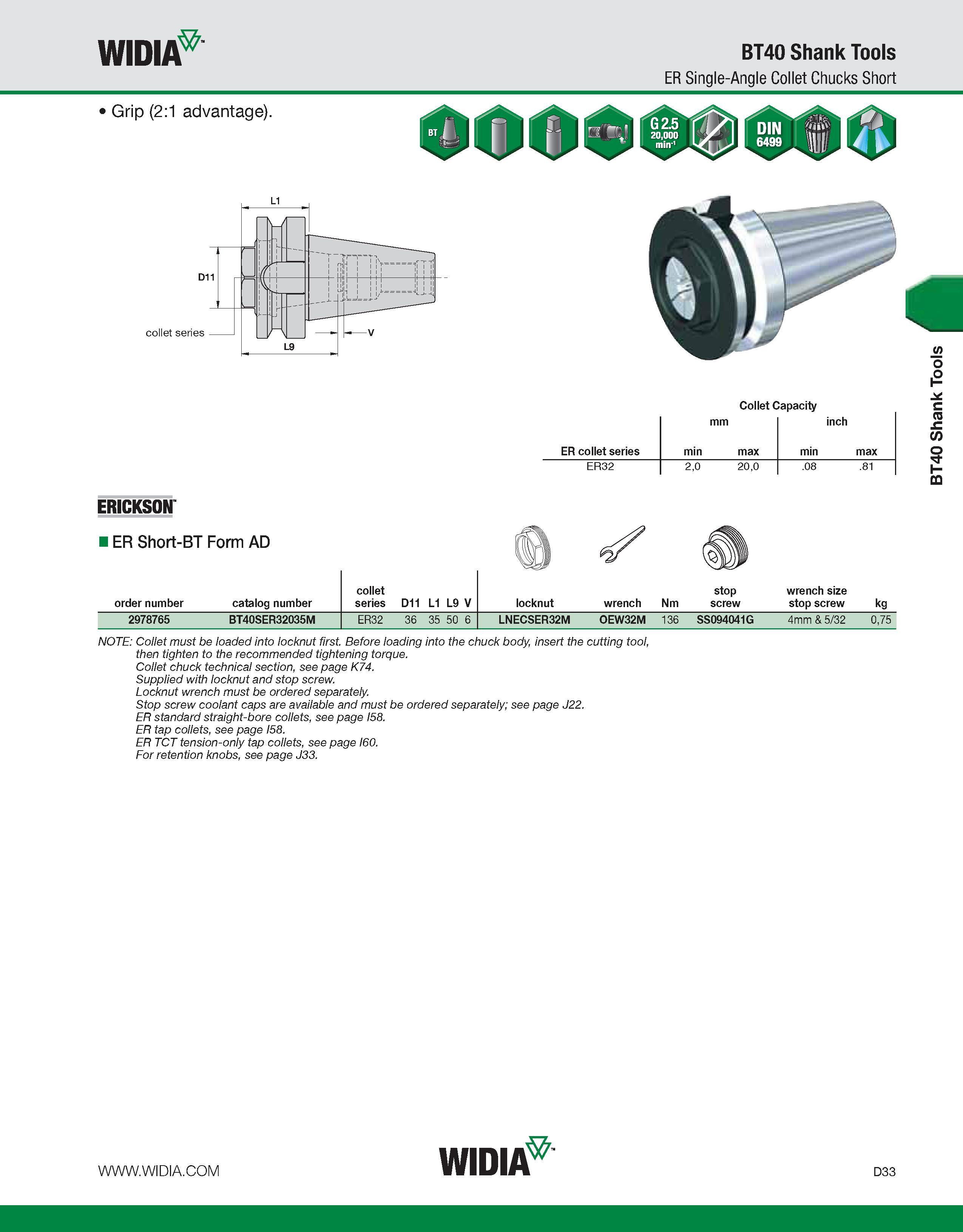

WIDIA BT40 Shank Tools ER Single-Angle Collet Chucks Short Grip (2:1 advantage). mm inch ER collet series min max min max ER32 2,0 20,0 .08 .81 ERICKSON I ER Short-BT Form AD order number catalog number collet series D11 L1 > 9 L locknut wrench Nm stop screw wrench size stop screw kg 2978765 BT40SER32035M ER32 36 35 50 6 LNECSER32M OEW32M 136 SS094041G 4mm & 5/32 0,75 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Stop screw coolant caps are available and must be ordered separately; see page J22. ER standard straight-bore collets, see page I58. ER tap collets, see page I58. ER TCT tension-only tap collets, see page I60. For retention knobs, see page J33. BT40 Shank Tools
