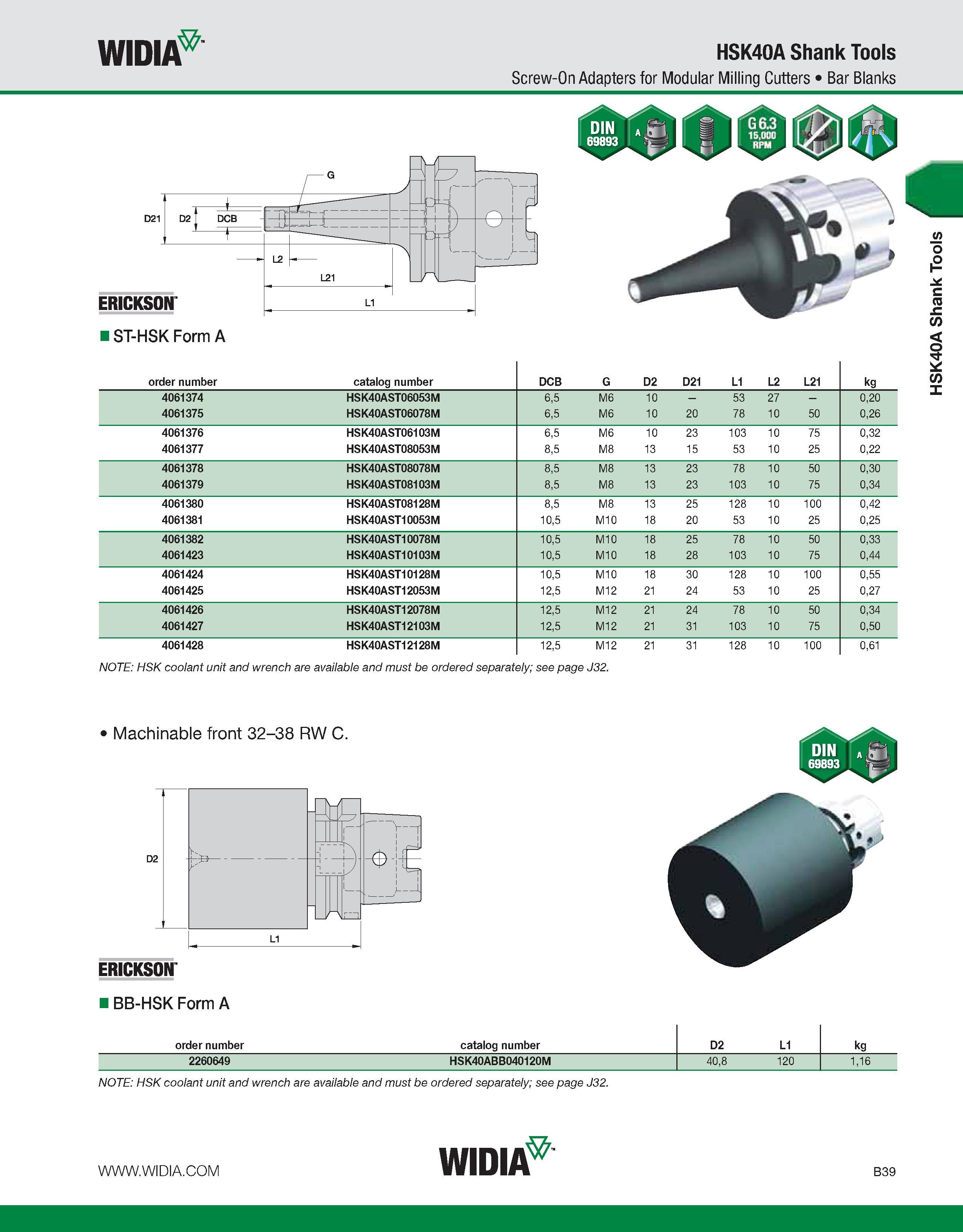

WIDIA HSK40A Shank Tools Screw-On Adapters for Modular Milling Cutters Bar Blanks ST-HSK Form A order number catalog number DCB G D2 D21 L1 L2 L21 kg 4061374 HSK40AST06053M 6,5 M6 10 - 53 27 - 0,20 4061375 HSK40AST06078M 6,5 M6 10 20 78 10 50 0,26 4061376 HSK40AST06103M 6,5 M6 10 23 103 10 75 0,32 4061377 HSK40AST08053M 8,5 M8 13 15 53 10 25 0,22 4061378 HSK40AST08078M 8,5 M8 13 23 78 10 50 0,30 4061379 HSK40AST08103M 8,5 M8 13 23 103 10 75 0,34 4061380 HSK40AST08128M 8,5 M8 13 25 128 10 100 0,42 4061381 HSK40AST10053M 10,5 M10 18 20 53 10 25 0,25 4061382 HSK40AST10078M 10,5 M10 18 25 78 10 50 0,33 4061423 HSK40AST10103M 10,5 M10 18 28 103 10 75 0,44 4061424 HSK40AST10128M 10,5 M10 18 30 128 10 100 0,55 4061425 HSK40AST12053M 12,5 M12 21 24 53 10 25 0,27 4061426 HSK40AST12078M 12,5 M12 21 24 78 10 50 0,34 4061427 HSK40AST12103M 12,5 M12 21 31 103 10 75 0,50 4061428 HSK40AST12128M 12,5 M12 21 31 128 10 100 0,61 NOTE: HSK coolant unit and wrench are available and must be ordered separately; see page J32. Machinable front 32-38 RW C. ERICKSON BB-HSK Form A order number catalog number D2 L1 kg 2260649 HSK40ABB040120M 40,8 120 1,16 NOTE: HSK coolant unit and wrench are available and must be ordered separately; see page J32. WIDIA B39 HSK40A Shank Tools
