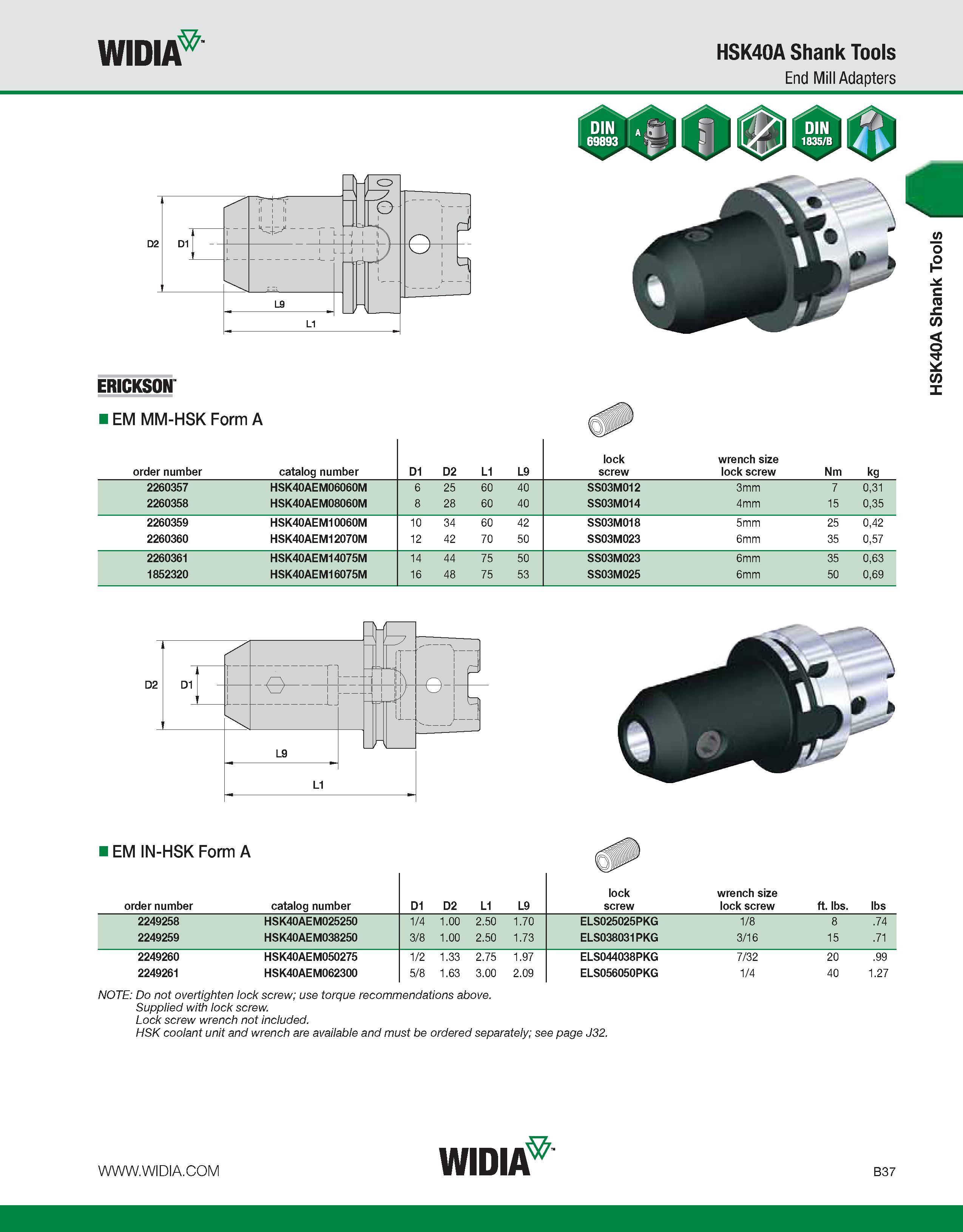

WIDIA HSK40A Shank Tools End Mill Adapters ERICKSON EM MM-HSK Form A order number catalog number D1 D2 L1 L9 lock screw wrench size lock screw Nm kg 2260357 HSK40AEM06060M 6 25 60 40 SS03M012 3mm 7 0,31 2260358 HSK40AEM08060M 8 28 60 40 SS03M014 4mm 15 0,35 2260359 HSK40AEM10060M 10 34 60 42 SS03M018 5mm 25 0,42 2260360 HSK40AEM12070M 12 42 70 50 SS03M023 6mm 35 0,57 2260361 HSK40AEM14075M 14 44 75 50 SS03M023 6mm 35 0,63 1852320 HSK40AEM16075M 16 48 75 53 SS03M025 6mm 50 0,69 EM IN-HSK Form A order number catalog number D1 D2 L1 L9 lock screw wrench size lock screw ft. lbs. lbs 2249258 HSK40AEM025250 1/4 1.00 2.50 1.70 ELS025025PKG 1/8 8 .74 2249259 HSK40AEM038250 3/8 1.00 2.50 1.73 ELS038031PKG 3/16 15 .71 2249260 HSK40AEM050275 1/2 1.33 2.75 1.97 ELS044038PKG 7/32 20 .99 2249261 HSK40AEM062300 5/8 1.63 3.00 2.09 ELS056050PKG 1/4 40 1.27 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included. HSK coolant unit and wrench are available and must be ordered separately; see page J32. HSK40A Shank Tools
