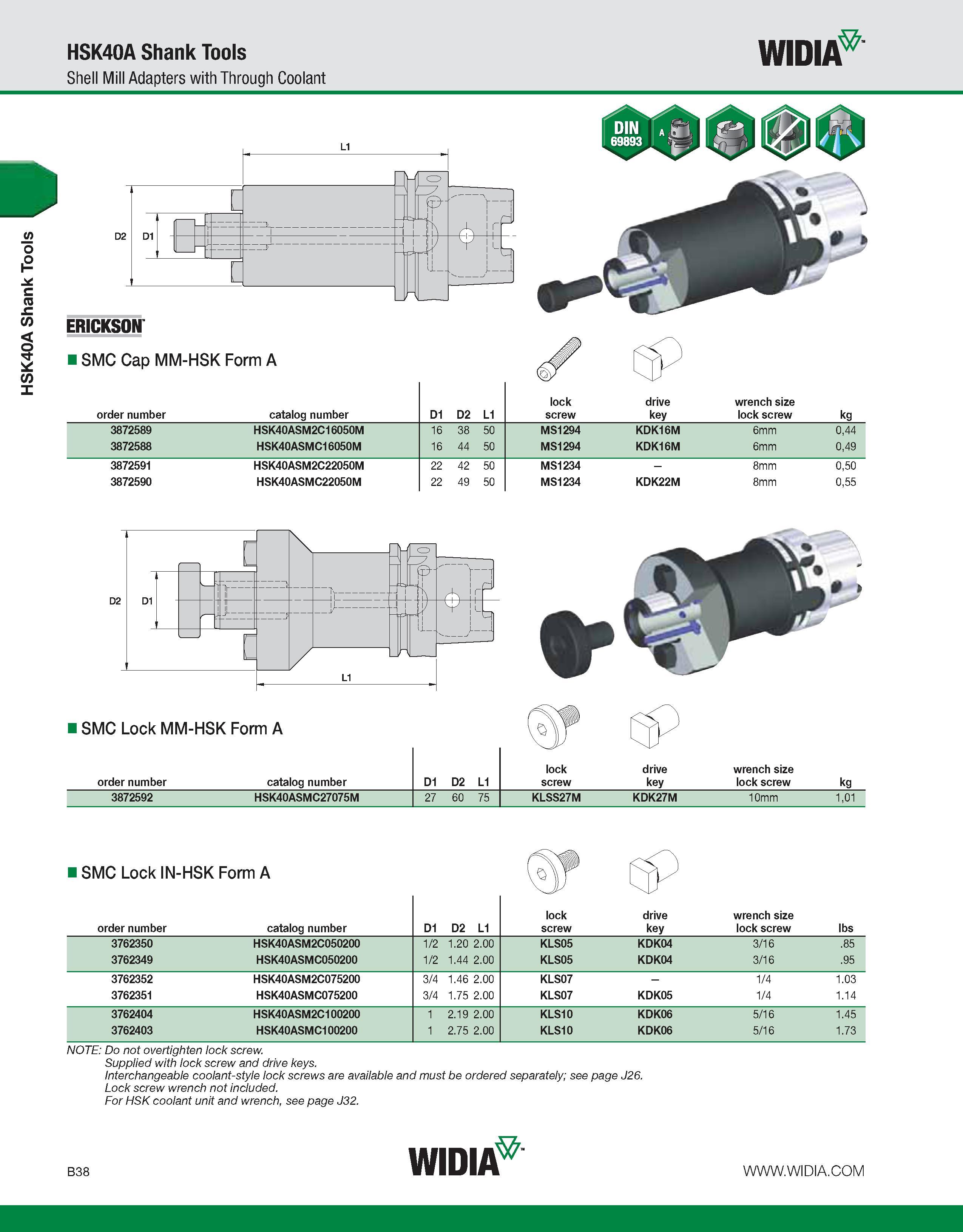

HSK40A Shank Tools HSK40A Shank Tools Shell Mill Adapters with Through Coolant WIDIA ERICKSON I SMC Cap MM-HSK Form A order number catalog number D1 D2 L1 lock screw drive key wrench size lock screw kg 3872589 HSK40ASM2C16050M 16 38 50 MS1294 KDK16M 6mm 0,44 3872588 HSK40ASMC16050M 16 44 50 MS1294 KDK16M 6mm 0,49 3872591 HSK40ASM2C22050M 22 42 50 MS1234 - 8mm 0,50 3872590 HSK40ASMC22050M 22 49 50 MS1234 KDK22M 8mm 0,55 I SMC Lock MM-HSK Form A lock drive wrench size order number catalog number D1 D2 L1 screw key lock screw kg 3872592 HSK40ASMC27075M 27 60 75 KLSS27M KDK27M 10mm 1,01 SMC Lock IN-HSK Form A order number catalog number D1 D2 L1 lock screw drive key wrench size lock screw lbs 3762350 HSK40ASM2C050200 1/2 1.20 2.00 KLS05 KDK04 3/16 .85 3762349 HSK40ASMC050200 1/2 1.44 2.00 KLS05 KDK04 3/16 .95 3762352 HSK40ASM2C075200 3/4 1.46 2.00 KLS07 - 1/4 1.03 3762351 HSK40ASMC075200 3/4 1.75 2.00 KLS07 KDK05 1/4 1.14 3762404 HSK40ASM2C100200 1 2.19 2.00 KLS10 KDK06 5/16 1.45 3762403 HSK40ASMC100200 1 2.75 2.00 KLS10 KDK06 5/16 1.73 NOTE: Do not overtighten lock screw. Supplied with lock screw and drive keys. Interchangeable coolant-style lock screws are available and must be ordered separately; see page J26. Lock screw wrench not included. For HSK coolant unit and wrench, see page J32. B38 WIDIA
