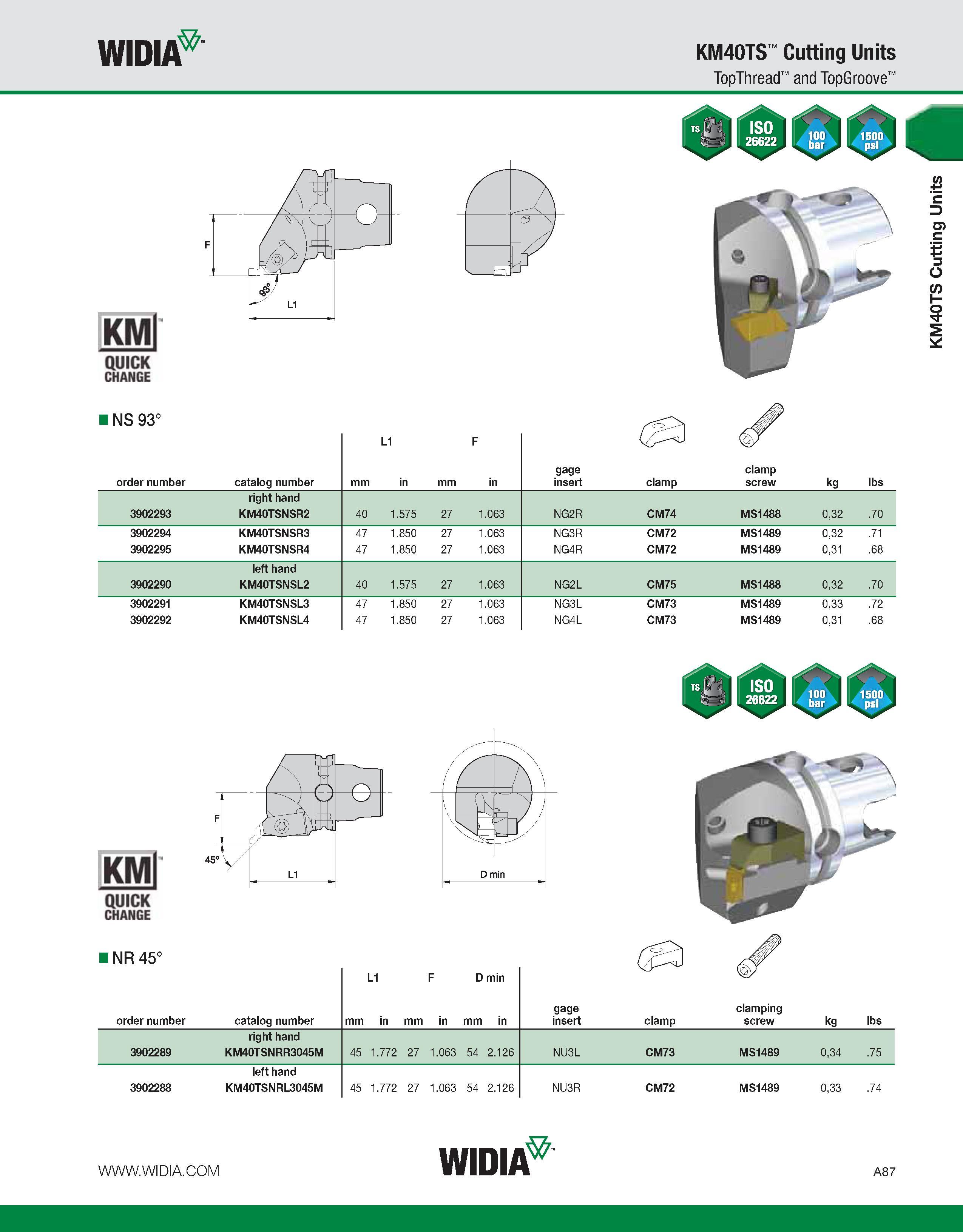

WIDIA KM40TS Cutting Units TopThread and TopGroove I NS 93° order number catalog number mm L1 in mm F in gage insert clamp clamp screw kg lbs right hand 3902293 KM40TSNSR2 40 1.575 27 1.063 NG2R CM74 MS1488 0,32 .70 3902294 KM40TSNSR3 47 1.850 27 1.063 NG3R CM72 MS1489 0,32 .71 3902295 KM40TSNSR4 47 1.850 27 1.063 NG4R CM72 MS1489 0,31 .68 left hand 3902290 KM40TSNSL2 40 1.575 27 1.063 NG2L CM75 MS1488 0,32 .70 3902291 KM40TSNSL3 47 1.850 27 1.063 NG3L CM73 MS1489 0,33 .72 3902292 KM40TSNSL4 47 1.850 27 1.063 NG4L CM73 MS1489 0,31 .68 KMl QUICK CHANGE I NR 45° L1 F D min vy order number catalog number mm in mm in mm in gage insert clamp clamping screw kg lbs right hand 3902289 KM40TSNRR3045M 45 1.772 27 1.063 54 2.126 NU3L CM73 MS1489 0,34 .75 left hand 3902288 KM40TSNRL3045M 45 1.772 27 1.063 54 2.126 NU3R CM72 MS1489 0,33 .74 WIDIA A87 KM40TS Cutting Units
