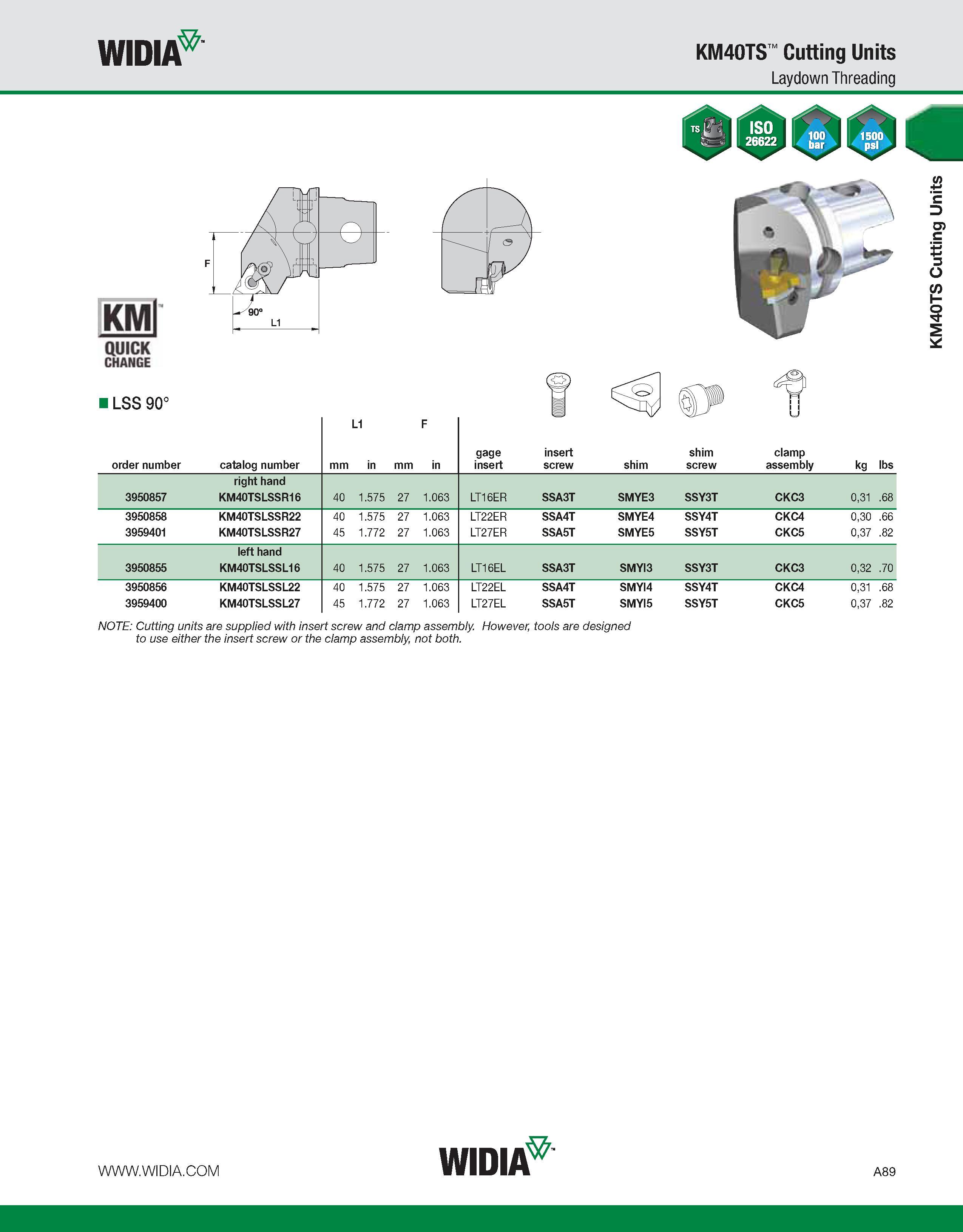

WIDIA KM40TS Cutting Units Laydown Threading KMl QUICK CHANGE I LSS 90° order number catalog number mm L1 in mm F in gage insert insert screw shim shim screw clamp assembly kg lbs right hand 3950857 KM40TSLSSR16 40 1.575 27 1.063 LT16ER SSA3T SMYE3 SSY3T CKC3 0,31 .68 3950858 KM40TSLSSR22 40 1.575 27 1.063 LT22ER SSA4T SMYE4 SSY4T CKC4 0,30 .66 3959401 KM40TSLSSR27 45 1.772 27 1.063 LT27ER SSA5T SMYE5 SSY5T CKC5 0,37 .82 left hand 3950855 KM40TSLSSL16 40 1.575 27 1.063 LT16EL SSA3T SMYI3 SSY3T CKC3 0,32 .70 3950856 KM40TSLSSL22 40 1.575 27 1.063 LT22EL SSA4T SMYI4 SSY4T CKC4 0,31 .68 3959400 KM40TSLSSL27 45 1.772 27 1.063 LT27EL SSA5T SMYI5 SSY5T CKC5 0,37 .82 NOTE: Cutting units are supplied with insert screw and clamp assembly. However, tools are designed to use either the insert screw or the clamp assembly, not both. KM40TS Cutting Units
