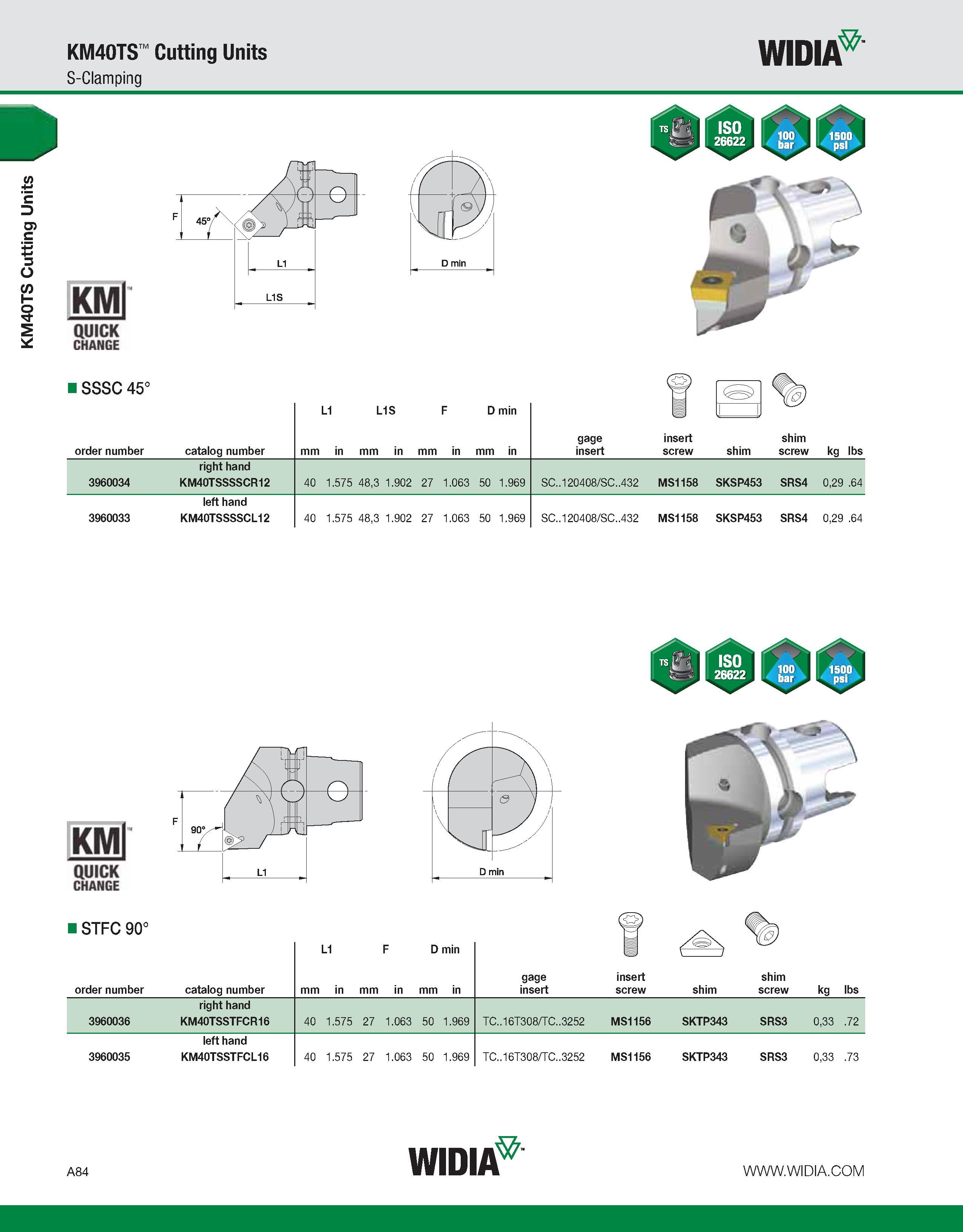

KM40TS Cutting Units KM40TS Cutting Units S-Clamping WIDIA KMl QUICK CHANGE SSSC 45° H (1 L1 L1S F D min B order number catalog number mm in mm in mm in mm in gage insert insert screw shim shim screw kg lbs 3960034 right hand KM40TSSSSCR12 40 1.575 48,3 1.902 27 1.063 50 1.969 SC..120408/SC..432 MS1158 SKSP453 SRS4 0,29 .64 3960033 left hand KM40TSSSSCL12 40 1.575 48,3 1.902 27 1.063 50 1.969 SC..120408/SC..432 MS1158 SKSP453 SRS4 0,29 .64 STFC 90° L1 F D min I order number catalog number mm in mm in mm in gage insert insert screw shim shim screw kg lbs 3960036 right hand KM40TSSTFCR16 40 1.575 27 1.063 50 1.969 TC..16T308/TC..3252 MS1156 SKTP343 SRS3 0,33 .72 3960035 left hand KM40TSSTFCL16 40 1.575 27 1.063 50 1.969 TC..16T308/TC..3252 MS1156 SKTP343 SRS3 0,33 .73 A84 WIDIA
