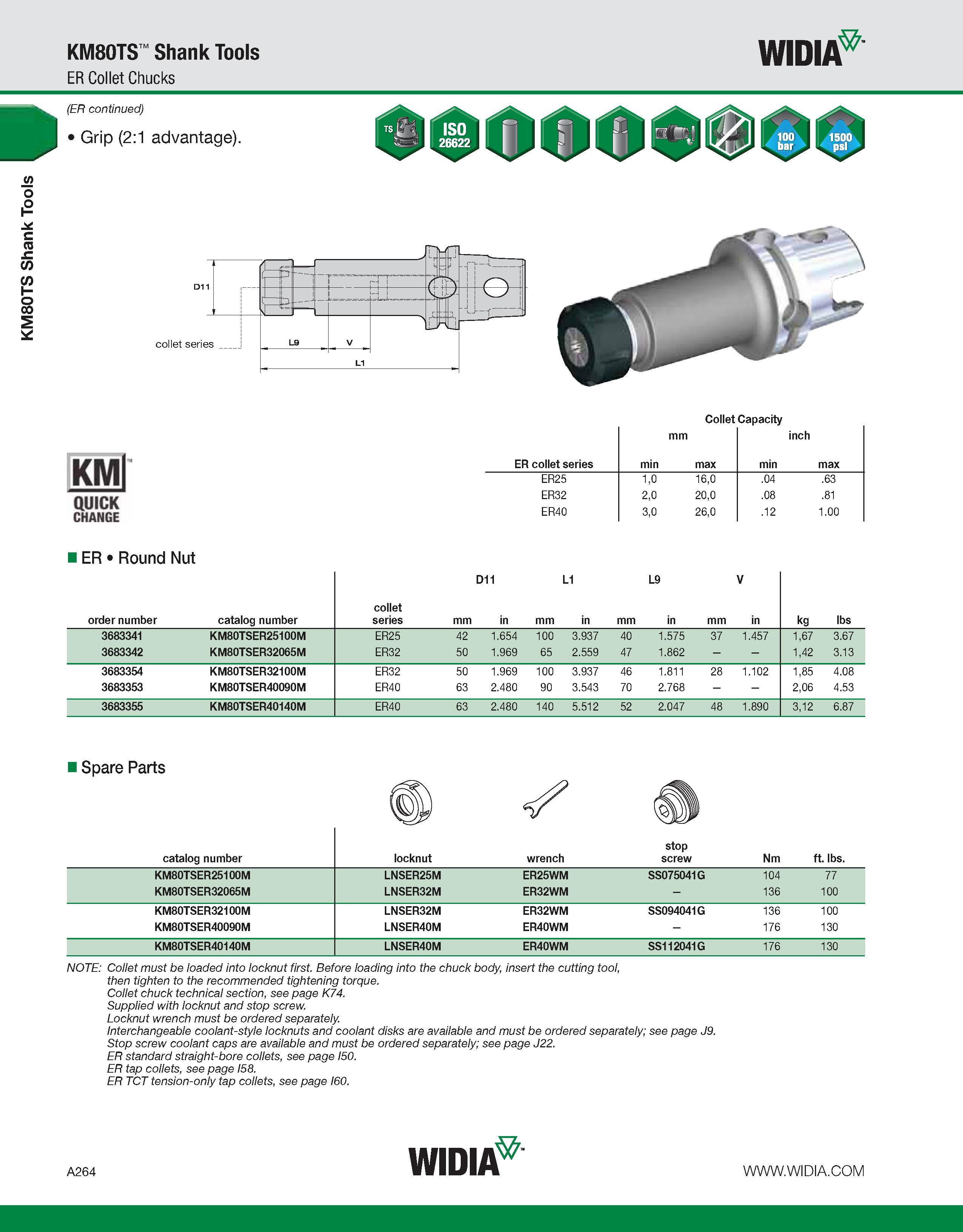

KM80TS Shank Tools KM80TS Shank Tools ER Collet Chucks WIDIA (ER continued) Grip (2:1 advantage). KMl QUICK CHANGE Collet Capacity ER collet series min mm max min inch max ER25 1,0 16,0 .04 .63 ER32 2,0 20,0 .08 .81 ER40 3,0 26,0 .12 1.00 ER Round Nut D11 L1 L9 V order number catalog number collet series mm in mm in mm in mm in kg lbs 3683341 KM80TSER25100M 3683342 KM80TSER32065M ER25 ER32 42 50 1.654 1.969 100 3.937 65 2.559 40 47 1.575 37 1.862 - 1.457 1,67 1,42 3.67 3.13 3683354 KM80TSER32100M 3683353 KM80TSER40090M ER32 ER40 50 63 1.969 2.480 100 3.937 90 3.543 46 70 1.811 28 2.768 - 1.102 1,85 2,06 4.08 4.53 3683355 KM80TSER40140M ER40 63 2.480 140 5.512 52 2.047 48 1.890 3,12 6.87 Spare Parts H) S d catalog number locknut wrench stop screw Nm ft. lbs. KM80TSER25100M KM80TSER32065M LNSER25M LNSER32M ER25WM ER32WM SS075041G 104 136 77 100 KM80TSER32100M KM80TSER40090M LNSER32M LNSER40M ER32WM ER40WM SS094041G 136 176 100 130 KM80TSER40140M LNSER40M ER40WM SS112041G 176 130 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable coolant-style locknuts and coolant disks are available and must be ordered separately; see page J9. Stop screw coolant caps are available and must be ordered separately; see page J22. ER standard straight-bore collets, see page I50. ER tap collets, see page I58. ER TCT tension-only tap collets, see page I60. A264 WIDIA
