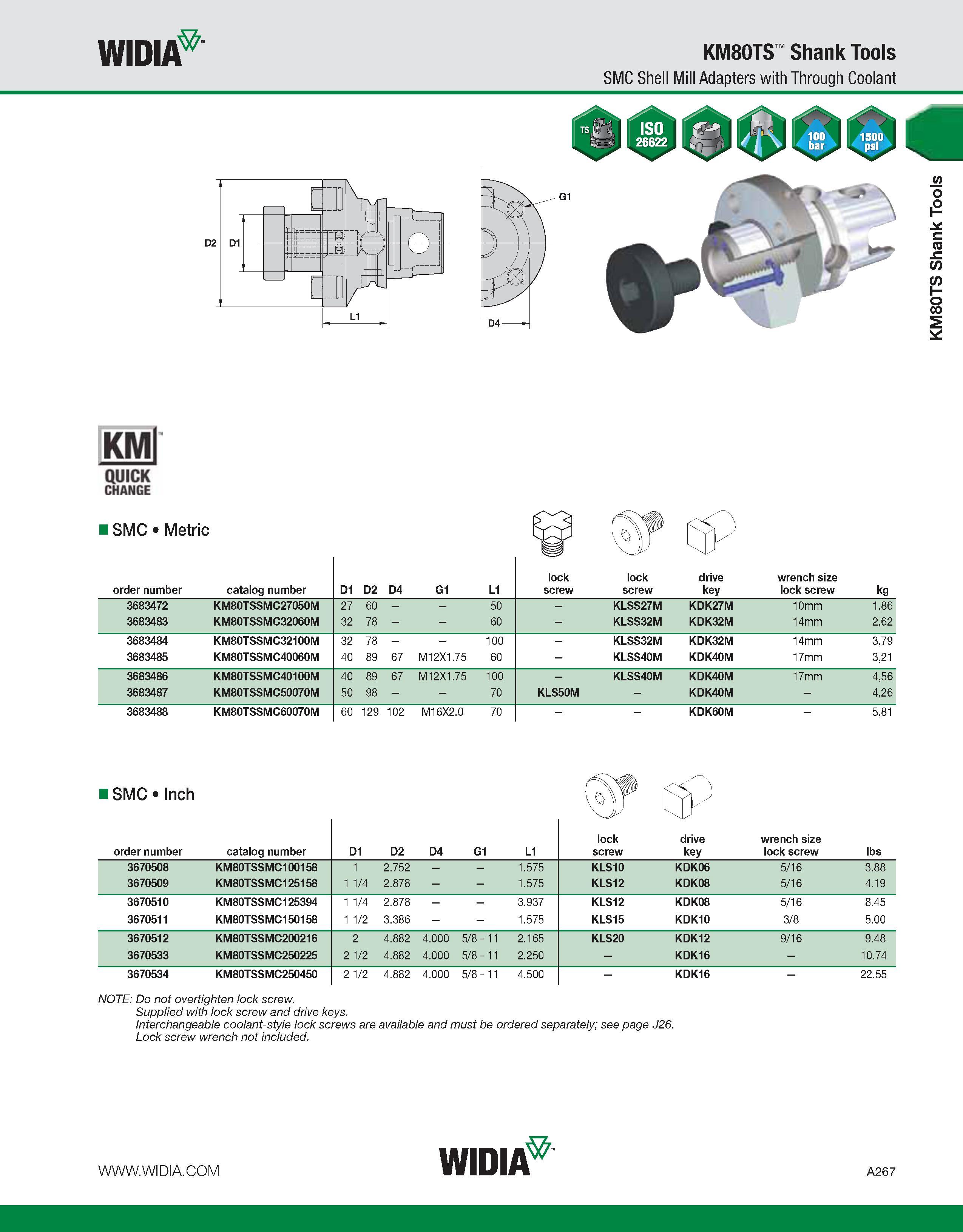

WIDIA KM80TS Shank Tools SMC Shell Mill Adapters with Through Coolant D2 D1 KMl QUICK CHANGE I SMC Metric order number catalog number D1 D2 D4 G1 L1 lock screw lock screw drive key wrench size lock screw kg 3683472 KM80TSSMC27050M 27 60 50 - KLSS27M KDK27M 10mm 1,86 3683483 KM80TSSMC32060M 32 78 60 - KLSS32M KDK32M 14mm 2,62 3683484 KM80TSSMC32100M 32 78 100 - KLSS32M KDK32M 14mm 3,79 3683485 KM80TSSMC40060M 40 89 67 M12X1.75 60 - KLSS40M KDK40M 17mm 3,21 3683486 KM80TSSMC40100M 40 89 67 M12X1.75 100 - KLSS40M KDK40M 17mm 4,56 3683487 KM80TSSMC50070M 50 98 70 KLS50M - KDK40M - 4,26 3683488 KM80TSSMC60070M 60 129 102 M16X2.0 70 KDK60M - 5,81 SMC Inch order number catalog number D1 D2 D4 G1 L1 lock screw fj) ' drive key wrench size lock screw lbs 3670508 KM80TSSMC100158 1 2.752 1.575 KLS10 KDK06 5/16 3.88 3670509 KM80TSSMC125158 1 1/4 2.878 1.575 KLS12 KDK08 5/16 4.19 3670510 KM80TSSMC125394 1 1/4 2.878 3.937 KLS12 KDK08 5/16 8.45 3670511 KM80TSSMC150158 1 1/2 3.386 1.575 KLS15 KDK10 3/8 5.00 3670512 KM80TSSMC200216 2 4.882 4.000 5/8 - 11 2.165 KLS20 KDK12 9/16 9.48 3670533 KM80TSSMC250225 2 1/2 4.882 4.000 5/8 - 11 2.250 - KDK16 - 10.74 3670534 KM80TSSMC250450 2 1/2 4.882 4.000 5/8 - 11 4.500 - KDK16 - 22.55 NOTE: Do not overtighten lock screw. Supplied with lock screw and drive keys. Interchangeable coolant-style lock screws are available and must be ordered separately; see page J26. Lock screw wrench not included. KM80TS Shank Tools
