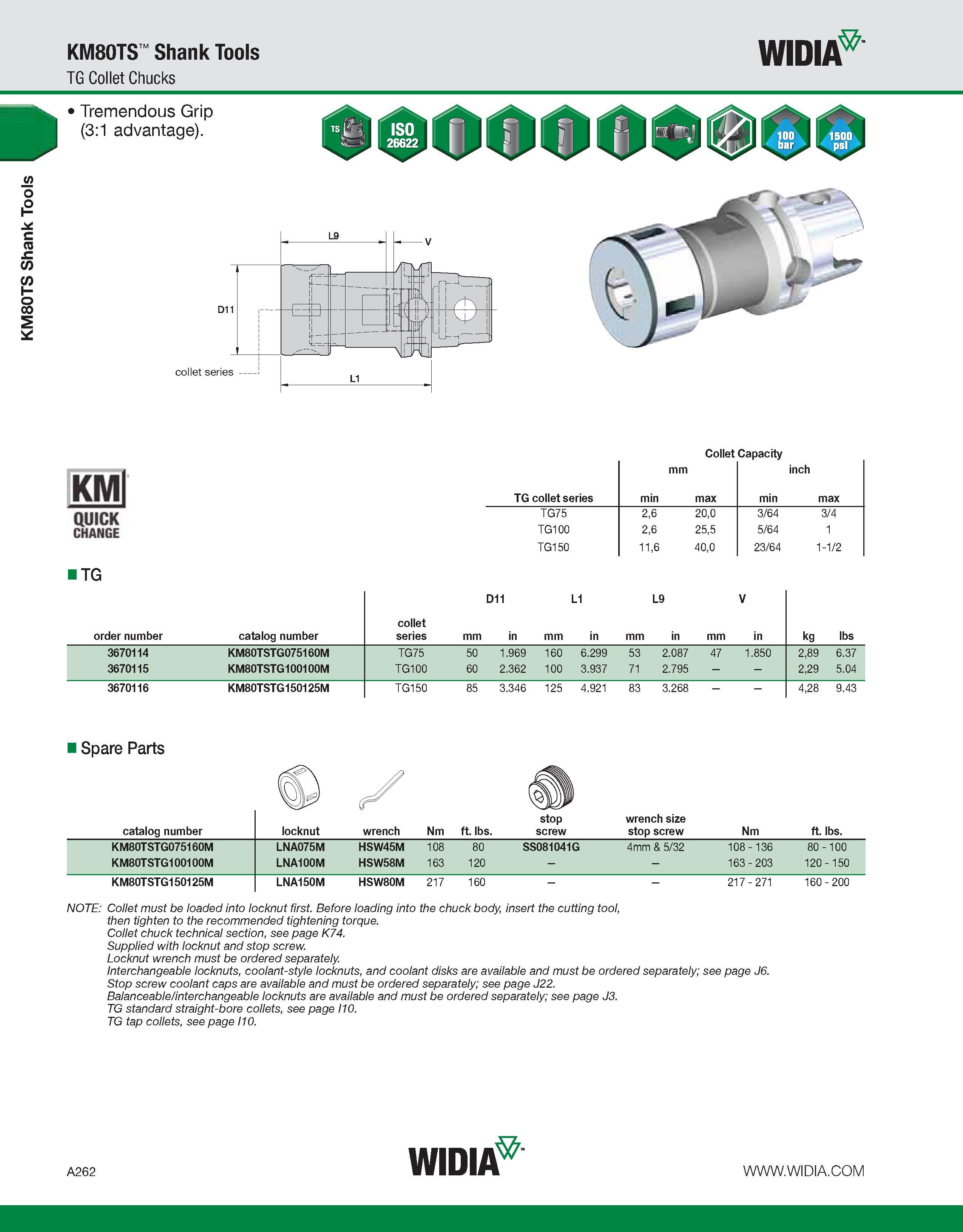

KM80TS Shank Tools KM80TS Shank Tools TG Collet Chucks WIDIA KMl QUICK CHANGE ITG Collet Capacity TG collet series min mm max min inch max TG75 2,6 20,0 3/64 3/4 TG100 2,6 25,5 5/64 1 TG150 11,6 40,0 23/64 1-1/2 order number catalog number collet series mm D11 in mm L1 in mm L9 in V mm in kg lbs 3670114 KM80TSTG075160M TG75 50 1.969 160 6.299 53 2.087 47 1.850 2,89 6.37 3670115 KM80TSTG100100M TG100 60 2.362 100 3.937 71 2.795 2,29 5.04 3670116 KM80TSTG150125M TG150 85 3.346 125 4.921 83 3.268 4,28 9.43 Spare Parts catalog number locknut wrench Nm ft. lbs. stop screw wrench size stop screw Nm ft. lbs. KM80TSTG075160M LNA075M HSW45M 108 80 SS081041G 4mm & 5/32 108 - 136 80 - 100 KM80TSTG100100M LNA100M HSW58M 163 120 163 - 203 120 - 150 KM80TSTG150125M LNA150M HSW80M 217 160 217 - 271 160 - 200 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable locknuts, coolant-style locknuts, and coolant disks are available and must be ordered separately; see page J6. Stop screw coolant caps are available and must be ordered separately; see page J22. Balanceable/interchangeable locknuts are available and must be ordered separately; see page J3. TG standard straight-bore collets, see page I10. TG tap collets, see page I10. A262 WIDIA
