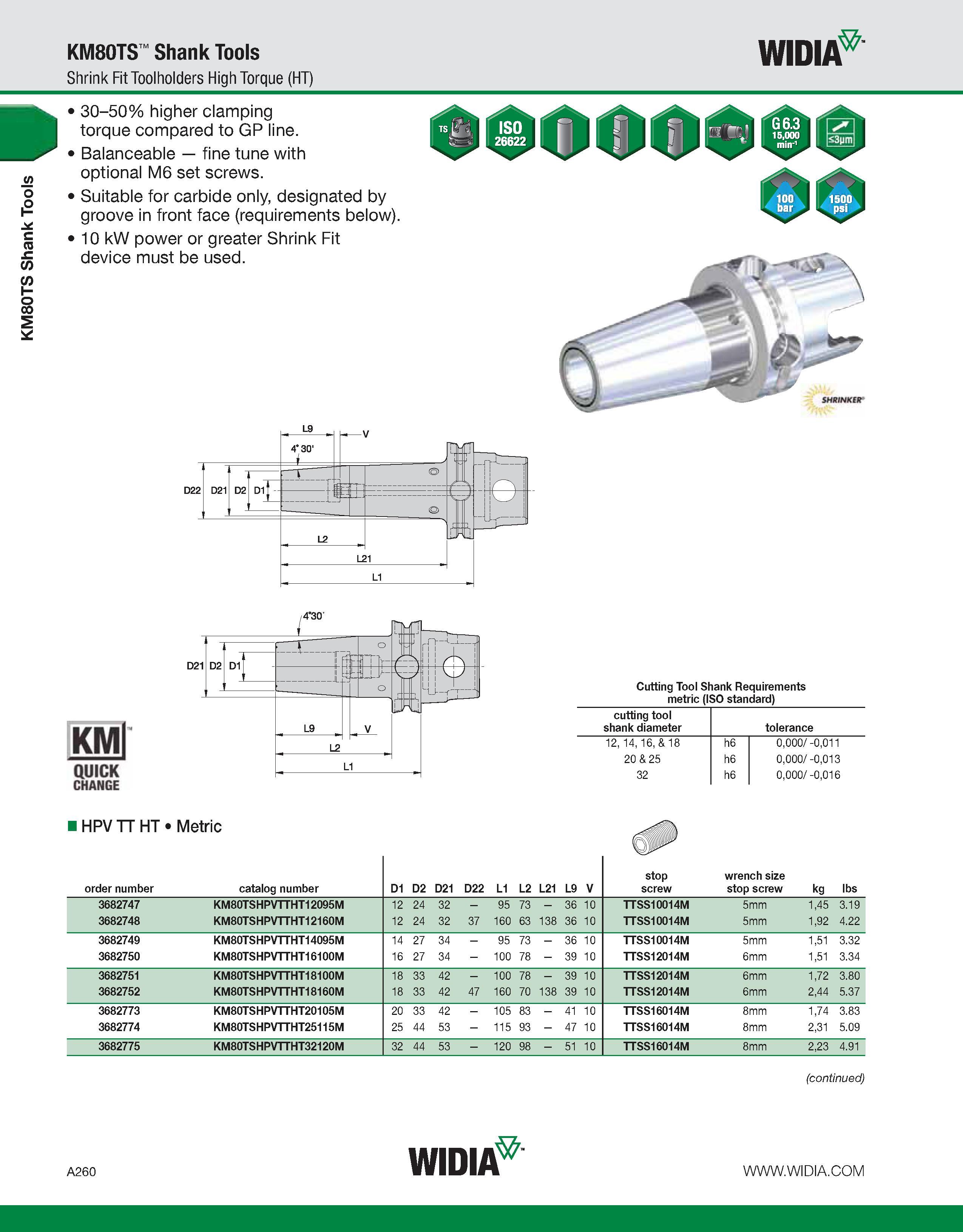

KM80TS Shank Tools KM80TS Shank Tools Shrink Fit Toolholders High Torque (HT) WIDIA 30-50% higher clamping torque compared to GP line. Balanceable fine tune with optional M6 set screws. Suitable for carbide only, designated by groove in front face (requirements below). 10 kW power or greater Shrink Fit device must be used. Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 12, 14, 16, & 18 h6 0,000/ -0,011 20 & 25 h6 0,000/ -0,013 32 h6 0,000/ -0,016 HPV TT HT Metric order number catalog number D1 D2 D21 D22 L1 L2 L21 L9 V stop screw wrench size stop screw kg lbs 3682747 KM80TSHPVTTHT12095M 12 24 32 95 73 36 10 TTSS10014M 5mm 1,45 3.19 3682748 KM80TSHPVTTHT12160M 12 24 32 37 160 63 138 36 10 TTSS10014M 5mm 1,92 4.22 3682749 KM80TSHPVTTHT14095M 14 27 34 95 73 36 10 TTSS10014M 5mm 1,51 3.32 3682750 KM80TSHPVTTHT16100M 16 27 34 100 78 39 10 TTSS12014M 6mm 1,51 3.34 3682751 KM80TSHPVTTHT18100M 18 33 42 100 78 39 10 TTSS12014M 6mm 1,72 3.80 3682752 KM80TSHPVTTHT18160M 18 33 42 47 160 70 138 39 10 TTSS12014M 6mm 2,44 5.37 3682773 KM80TSHPVTTHT20105M 20 33 42 105 83 41 10 TTSS16014M 8mm 1,74 3.83 3682774 KM80TSHPVTTHT25115M 25 44 53 115 93 47 10 TTSS16014M 8mm 2,31 5.09 3682775 KM80TSHPVTTHT32120M 32 44 53 120 98 51 10 TTSS16014M 8mm 2,23 4.91 (continued) A260 WIDIA
