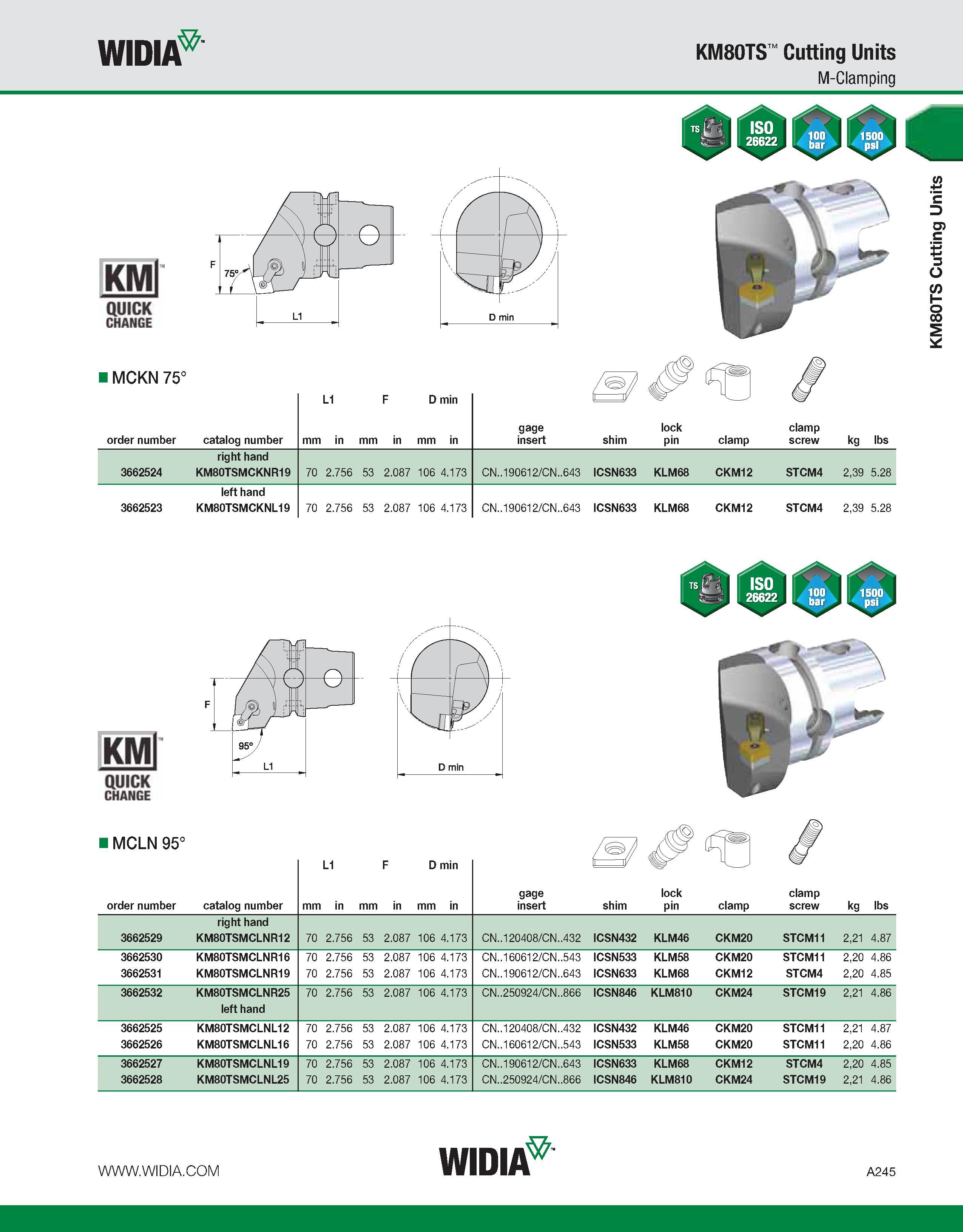

WIDIA KM80TS Cutting Units M-Clamping KMl QUICK CHANGE MCKN 75° order number catalog number L1 D min mm in mm in mm in gage insert lock shim pin clamp clamp screw kg lbs 3662524 right hand KM80TSMCKNR19 70 2.756 53 2.087 106 4.173 CN..190612/CN..643 ICSN633 KLM68 CKM12 STCM4 2,39 5.28 3662523 left hand KM80TSMCKNL19 70 2.756 53 2.087 106 4.173 CN..190612/CN..643 ICSN633 KLM68 CKM12 STCM4 2,39 5.28 KMl QUICK CHANGE I MCLN 95° L1 F D min It “rt-1 gage lock clamp order number catalog number mm in mm in mm in insert shim pin clamp screw kg lbs right hand 3662529 KM80TSMCLNR12 70 2.756 53 2.087 106 4.173 CN..120408/CN..432 ICSN432 KLM46 CKM20 STCM11 2,21 4.87 3662530 KM80TSMCLNR16 70 2.756 53 2.087 106 4.173 CN..160612/CN..543 ICSN533 KLM58 CKM20 STCM11 2,20 4.86 3662531 KM80TSMCLNR19 70 2.756 53 2.087 106 4.173 CN..190612/CN..643 ICSN633 KLM68 CKM12 STCM4 2,20 4.85 3662532 KM80TSMCLNR25 70 2.756 53 2.087 106 4.173 CN..250924/CN..866 ICSN846 KLM810 CKM24 STCM19 2,21 4.86 left hand 3662525 KM80TSMCLNL12 70 2.756 53 2.087 106 4.173 CN..120408/CN..432 ICSN432 KLM46 CKM20 STCM11 2,21 4.87 3662526 KM80TSMCLNL16 70 2.756 53 2.087 106 4.173 CN..160612/CN..543 ICSN533 KLM58 CKM20 STCM11 2,20 4.86 3662527 KM80TSMCLNL19 70 2.756 53 2.087 106 4.173 CN..190612/CN..643 ICSN633 KLM68 CKM12 STCM4 2,20 4.85 3662528 KM80TSMCLNL25 70 2.756 53 2.087 106 4.173 CN..250924/CN..866 ICSN846 KLM810 CKM24 STCM19 2,21 4.86 F KM80TS Cutting Units
