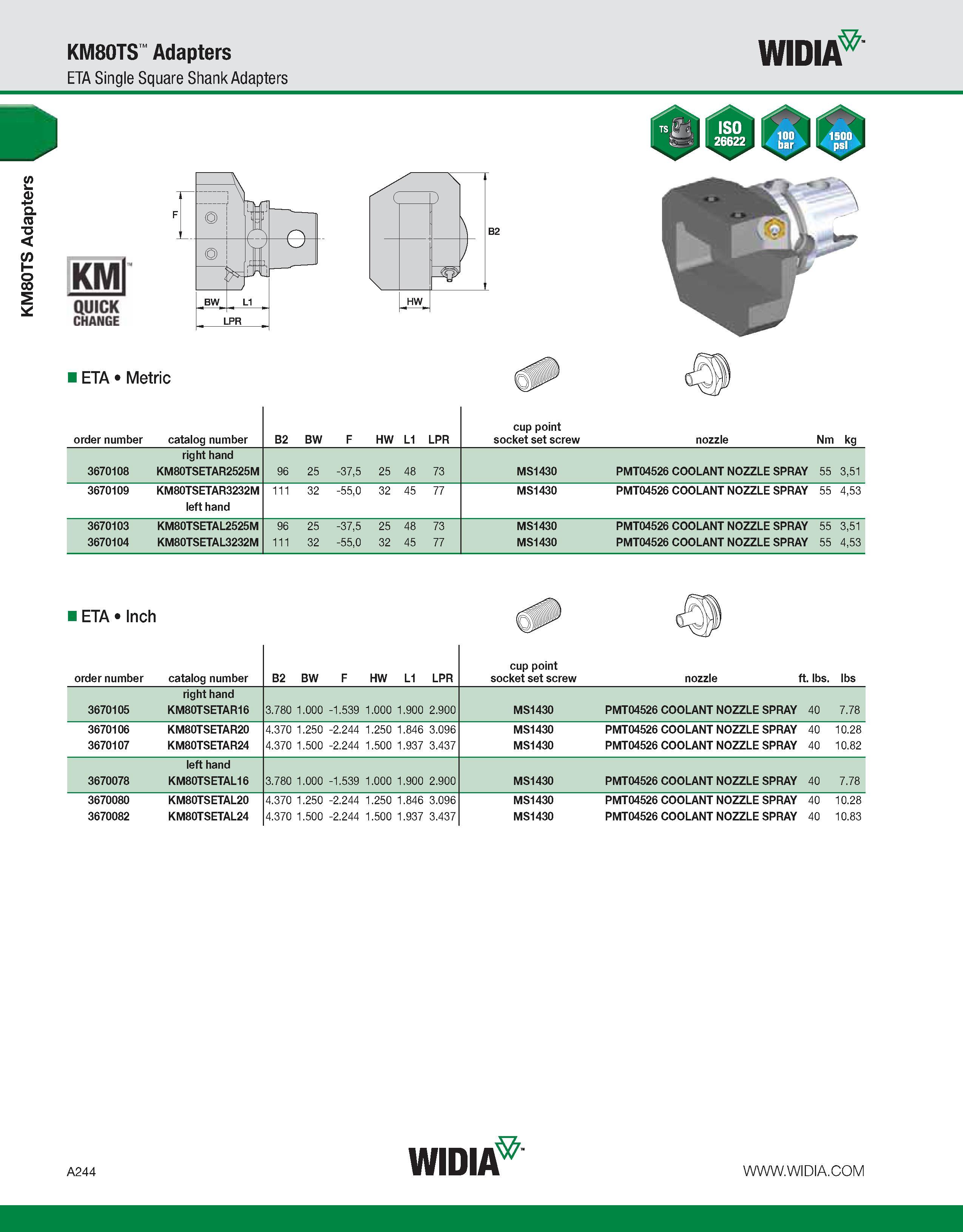

254 Каталог WIDIA 2011 Инструментальная оснастка для металлорежущих станков Стр.A244

Каталог WIDIA 2011 Инструментальная оснастка Стр. A244 0254 ENG Lab2u

KM80TS Adapters KM80TS Adapters ETA Single Square Shank Adapters WIDIA KMl QUICK CHANGE ETA Metric order number catalog number B2 BW F HW L1 LPR cup point socket set screw nozzle Nm kg right hand 3670108 KM80TSETAR2525M 96 25 -37,5 25 48 73 MS1430 PMT04526 COOLANT NOZZLE SPRAY 55 3,51 3670109 KM80TSETAR3232M left hand 111 32 -55,0 32 45 77 MS1430 PMT04526 COOLANT NOZZLE SPRAY 55 4,53 3670103 KM80TSETAL2525M 96 25 -37,5 25 48 73 MS1430 PMT04526 COOLANT NOZZLE SPRAY 55 3,51 3670104 KM80TSETAL3232M 111 32 -55,0 32 45 77 MS1430 PMT04526 COOLANT NOZZLE SPRAY 55 4,53 ETA Inch iP order number catalog number B2 BW F HW L1 LPR cup point socket set screw nozzle ft. lbs. lbs right hand 3670105 KM80TSETAR16 3.780 1.000 -1.539 1.000 1.900 2.900 MS1430 PMT04526 COOLANT NOZZLE SPRAY 40 7.78 3670106 KM80TSETAR20 4.370 1.250 -2.244 1.250 1.846 3.096 MS1430 PMT04526 COOLANT NOZZLE SPRAY 40 10.28 3670107 KM80TSETAR24 4.370 1.500 -2.244 1.500 1.937 3.437 MS1430 PMT04526 COOLANT NOZZLE SPRAY 40 10.82 left hand 3670078 KM80TSETAL16 3.780 1.000 -1.539 1.000 1.900 2.900 MS1430 PMT04526 COOLANT NOZZLE SPRAY 40 7.78 3670080 KM80TSETAL20 4.370 1.250 -2.244 1.250 1.846 3.096 MS1430 PMT04526 COOLANT NOZZLE SPRAY 40 10.28 3670082 KM80TSETAL24 4.370 1.500 -2.244 1.500 1.937 3.437 MS1430 PMT04526 COOLANT NOZZLE SPRAY 40 10.83 A244 WIDIA
