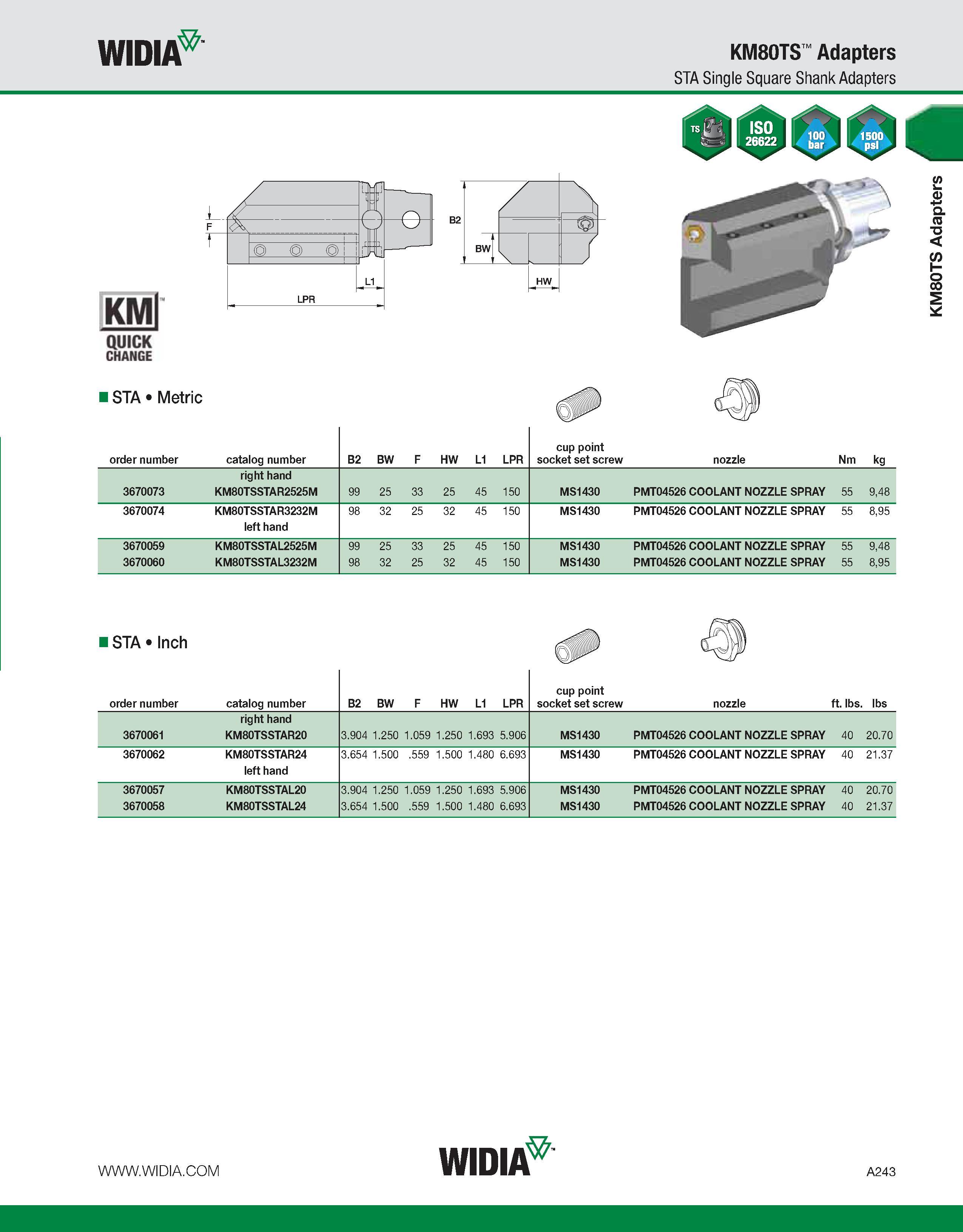

WIDIA KM80TS Adapters STA Single Square Shank Adapters KMl QUICK CHANGE I STA Metric order number catalog number B2 BW F HW L1 LPR cup point socket set screw nozzle Nm kg right hand 3670073 KM80TSSTAR2525M 99 25 33 25 45 150 MS1430 PMT04526 COOLANT NOZZLE SPRAY 55 9,48 3670074 KM80TSSTAR3232M left hand 98 32 25 32 45 150 MS1430 PMT04526 COOLANT NOZZLE SPRAY 55 8,95 3670059 KM80TSSTAL2525M 99 25 33 25 45 150 MS1430 PMT04526 COOLANT NOZZLE SPRAY 55 9,48 3670060 KM80TSSTAL3232M 98 32 25 32 45 150 MS1430 PMT04526 COOLANT NOZZLE SPRAY 55 8,95 i STA Inch order number catalog number BW 2 B F HW L1 LPR cup point socket set screw nozzle ft. lbs. lbs right hand 3670061 KM80TSSTAR20 3.904 1.250 1.059 1.250 1.693 5.906 MS1430 PMT04526 COOLANT NOZZLE SPRAY 40 20.70 3670062 KM80TSSTAR24 left hand 3.654 1.500 .559 1.500 1.480 6.693 MS1430 PMT04526 COOLANT NOZZLE SPRAY 40 21.37 3670057 KM80TSSTAL20 3.904 1.250 1.059 1.250 1.693 5.906 MS1430 PMT04526 COOLANT NOZZLE SPRAY 40 20.70 3670058 KM80TSSTAL24 3.654 1.500 .559 1.500 1.480 6.693 MS1430 PMT04526 COOLANT NOZZLE SPRAY 40 21.37 KM80TS Adapters
