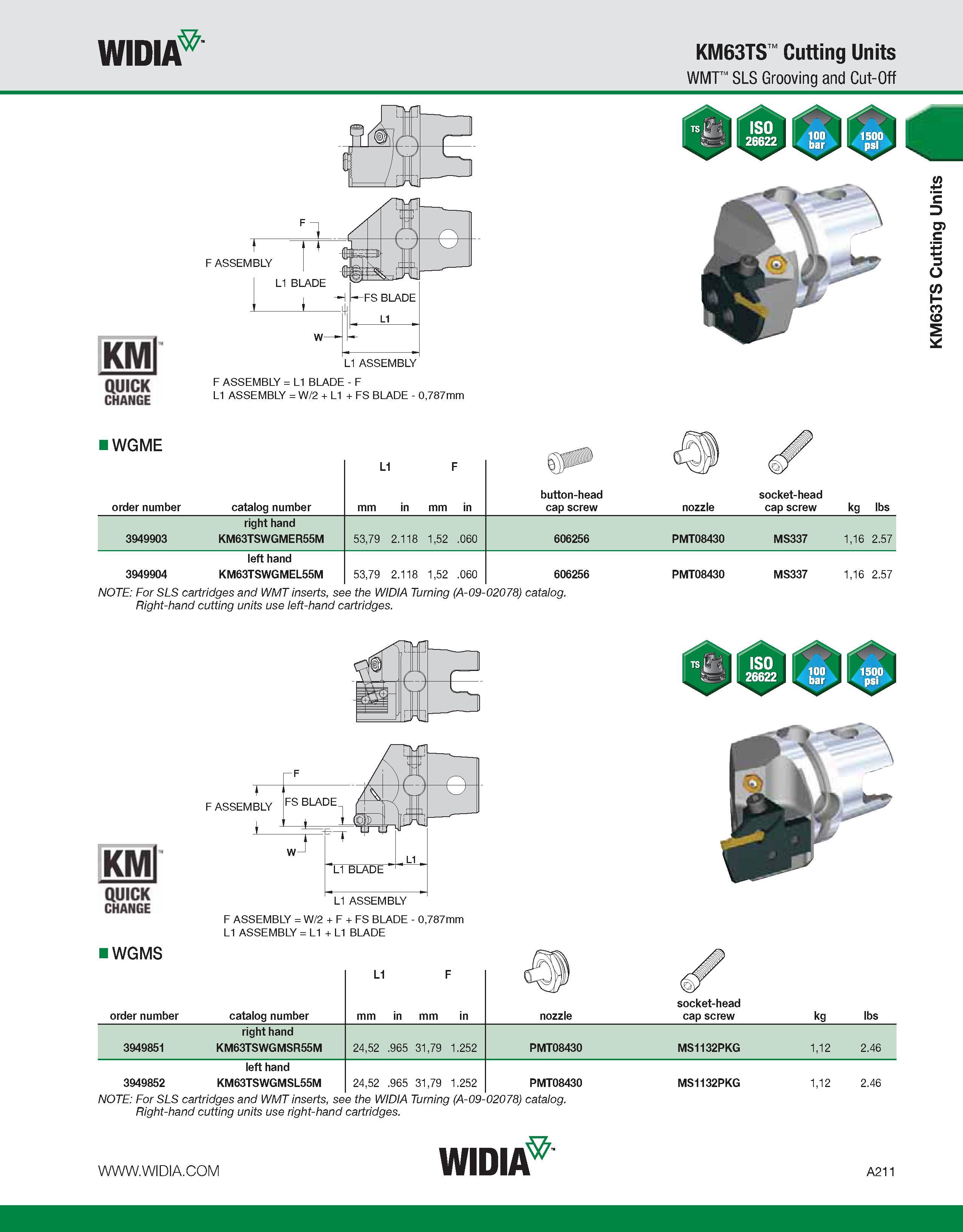

WIDIA KM63TS Cutting Units WMT SLS Grooving and Cut-Off F ASSEMBLY = L1 BLADE - F L1 ASSEMBLY = W/2 + L1 + FS BLADE - 0,787mm IWGME L1 F r (Qy order number catalog number mm in mm in button-head cap screw nozzle socket-head cap screw kg lbs right hand 3949903 KM63TSWGMER55M 53,79 2.118 1,52 .060 606256 PMT08430 MS337 1,16 2.57 3949904 left hand KM63TSWGMEL55M 53,79 2.118 1,52 .060 606256 PMT08430 MS337 1,16 2.57 NOTE: For SLS cartridges and WMT inserts, see the WIDIA Turning (A-09-02078) catalog. Right-hand cutting units use left-hand cartridges. KMl QUICK CHANGE IWGMS F ASSEMBLY = W/2 + F + FS BLADE - 0,787mm L1 ASSEMBLY = L1 + L1 BLADE L1 F /Hr \£y order number catalog number mm in mm in nozzle socket-head cap screw kg lbs 3949851 right hand KM63TSWGMSR55M 24,52 .965 31,79 1.252 PMT08430 MS1132PKG 1,12 2.46 3949852 left hand KM63TSWGMSL55M 24,52 .965 31,79 1.252 PMT08430 MS1132PKG 1,12 2.46 NOTE: For SLS cartridges and WMT inserts, see the WIDIA Turning (A-09-02078) catalog. Right-hand cutting units use right-hand cartridges. WIDIA A211 KM63TS Cutting Units
