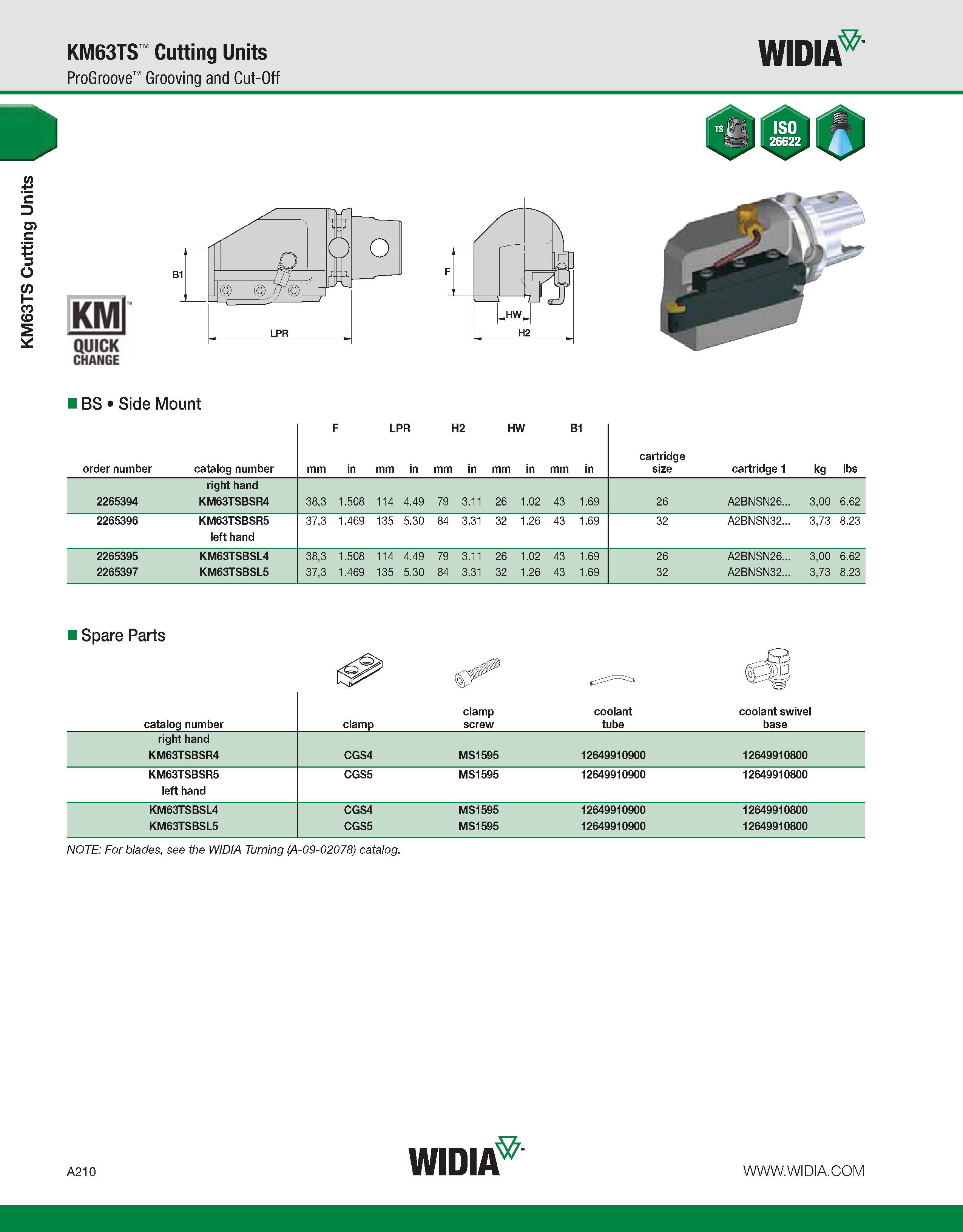

KM63TS Cutting Units KM63TS Cutting Units ProGroove Grooving and Cut-Off WIDIA KMl QUICK CHANGE BS Side Mount F LPR H2 HW B1 order number catalog number mm in mm in mm in mm in mm in cartridge size cartridge 1 kg lbs 2265394 right hand KM63TSBSR4 38,3 1.508 114 4.49 79 3.11 26 1.02 43 1.69 26 A2BNSN26... 3,00 6.62 2265396 KM63TSBSR5 left hand 37,3 1.469 135 5.30 84 3.31 32 1.26 43 1.69 32 A2BNSN32... 3,73 8.23 2265395 KM63TSBSL4 38,3 1.508 114 4.49 79 3.11 26 1.02 43 1.69 26 A2BNSN26... 3,00 6.62 2265397 KM63TSBSL5 37,3 1.469 135 5.30 84 3.31 32 1.26 43 1.69 32 A2BNSN32... 3,73 8.23 Spare Parts catalog number clamp clamp screw coolant tube coolant swivel base right hand KM63TSBSR4 CGS4 MS1595 12649910900 12649910800 KM63TSBSR5 CGS5 MS1595 12649910900 12649910800 left hand KM63TSBSL4 CGS4 MS1595 12649910900 12649910800 KM63TSBSL5 CGS5 MS1595 12649910900 12649910800 NOTE: For blades, see the WIDIA Turning (A-09-02078) catalog. A210 WIDIA
