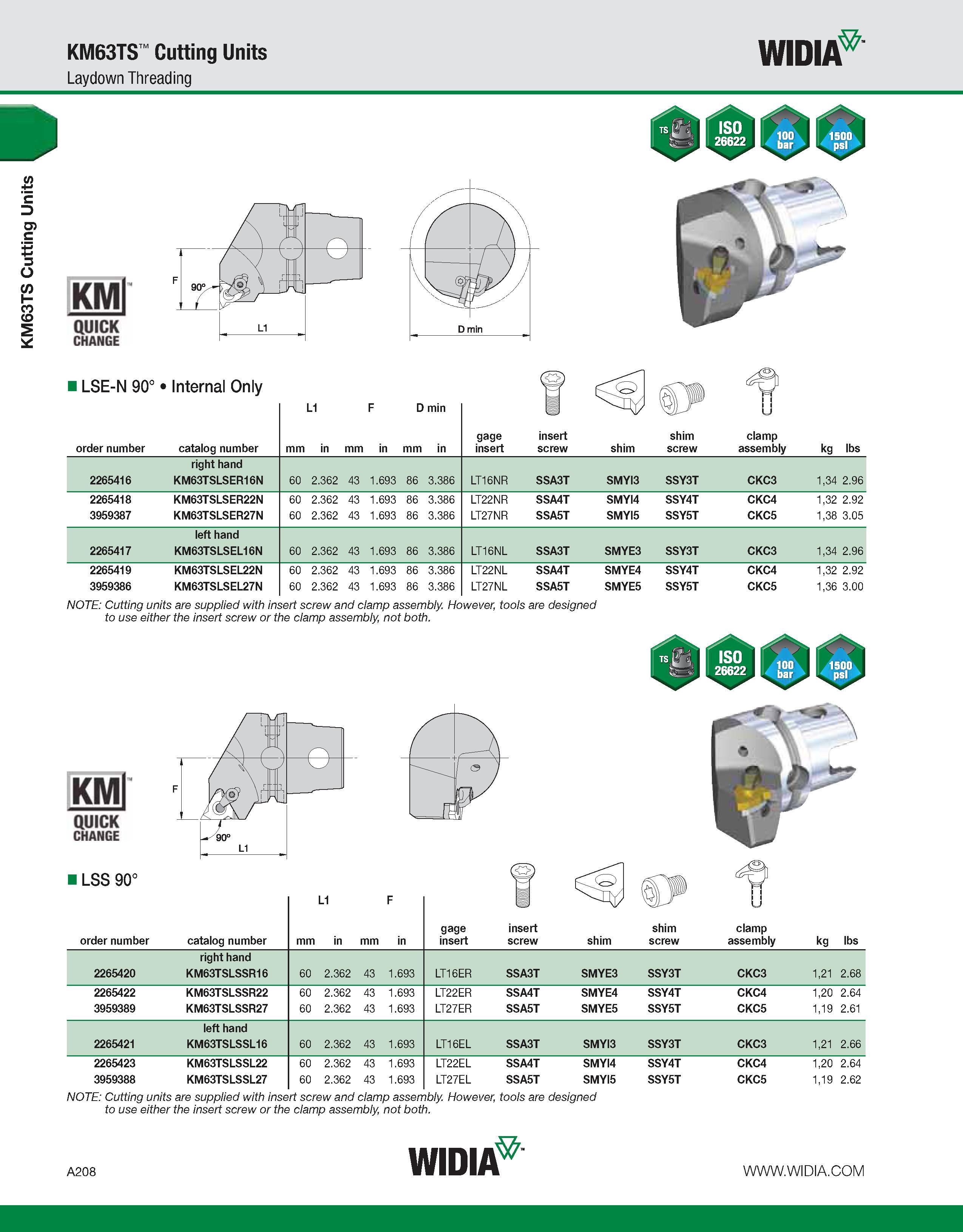

KM63TS Cutting Units KM63TS Cutting Units Laydown Threading WIDIA KMl QUICK CHANGE NOTE: Cutting units are supplied with insert screw and clamp assembly. However, tools are designed to use either the insert screw or the clamp assembly, not both. LSS 90° order number catalog number mm L1 in mm F in gage insert insert screw shim vwjjjr shim screw clamp assembly kg lbs right hand 2265420 KM63TSLSSR16 60 2.362 43 1.693 LT16ER SSA3T SMYE3 SSY3T CKC3 1,21 2.68 2265422 KM63TSLSSR22 60 2.362 43 1.693 LT22ER SSA4T SMYE4 SSY4T CKC4 1,20 2.64 3959389 KM63TSLSSR27 60 2.362 43 1.693 LT27ER SSA5T SMYE5 SSY5T CKC5 1,19 2.61 left hand 2265421 KM63TSLSSL16 60 2.362 43 1.693 LT16EL SSA3T SMYI3 SSY3T CKC3 1,21 2.66 2265423 KM63TSLSSL22 60 2.362 43 1.693 LT22EL SSA4T SMYI4 SSY4T CKC4 1,20 2.64 3959388 KM63TSLSSL27 60 2.362 43 1.693 LT27EL SSA5T SMYI5 SSY5T CKC5 1,19 2.62 NOTE: Cutting units are supplied with insert screw and clamp assembly. However, tools are designed to use either the insert screw or the clamp assembly, not both. A208 WIDIA
