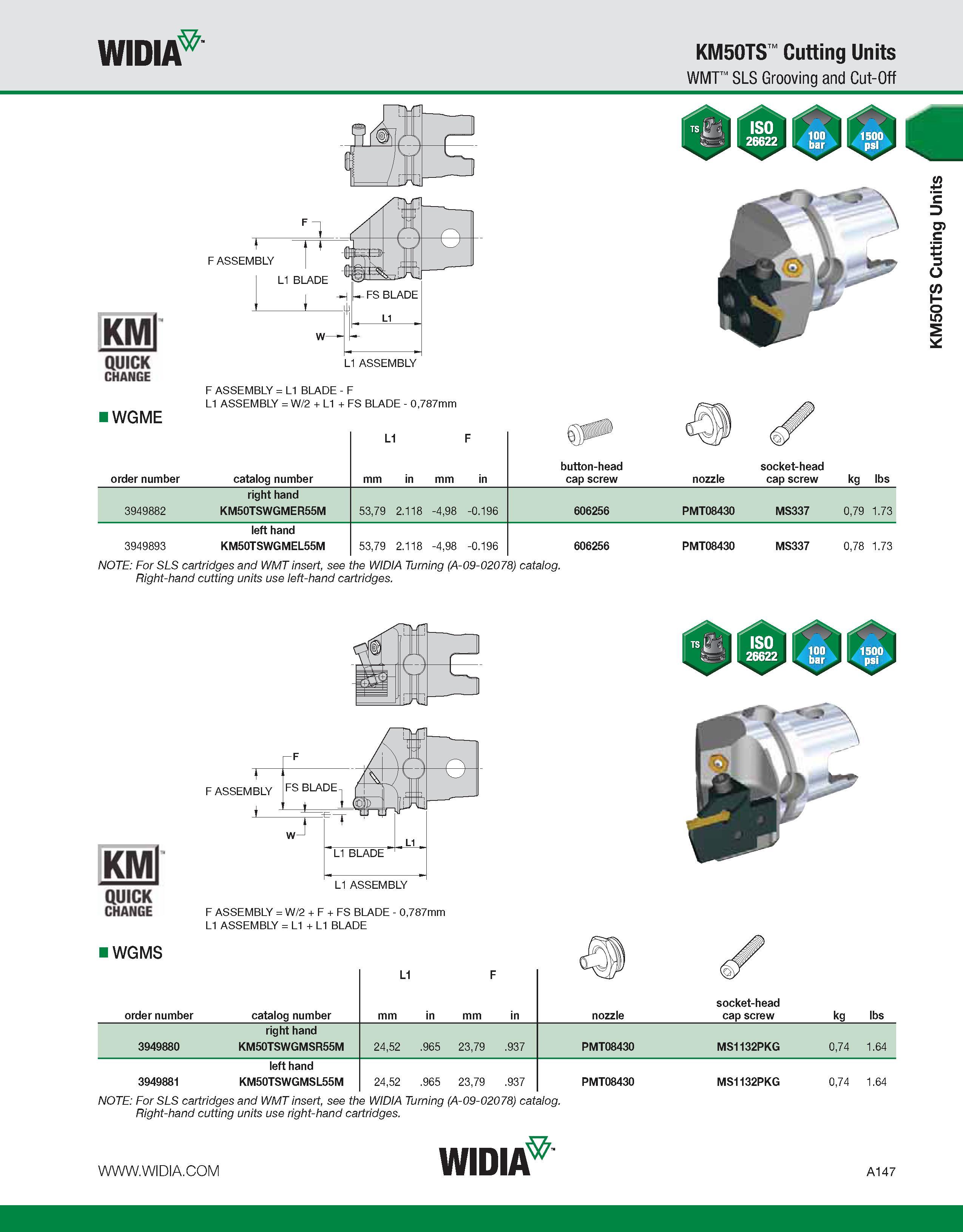

WIDIA KM50TS Cutting Units WMT SLS Grooving and Cut-Off IWGME F ASSEMBLY = L1 BLADE - F L1 ASSEMBLY = W/2 + L1 + FS BLADE - 0,787mm L1 F order number catalog number mm in mm in button-head cap screw nozzle socket-head cap screw kg lbs 3949882 right hand KM50TSWGMER55M 53,79 2.118 -4,98 -0.196 606256 PMT08430 MS337 0,79 1.73 3949893 left hand KM50TSWGMEL55M 53,79 2.118 -4,98 -0.196 606256 PMT08430 MS337 0,78 1.73 NOTE: For SLS cartridges and WMT insert, see the WIDIA Turning (A-09-02078) catalog. Right-hand cutting units use left-hand cartridges. KMl QUICK CHANGE IWGMS F ASSEMBLY = W/2 + F + FS BLADE - 0,787mm L1 ASSEMBLY = L1 + L1 BLADE L1 F w order number catalog number mm in mm in nozzle socket-head cap screw kg lbs 3949880 right hand KM50TSWGMSR55M 24,52 .965 23,79 .937 PMT08430 MS1132PKG 0,74 1.64 3949881 left hand KM50TSWGMSL55M 24,52 .965 23,79 .937 PMT08430 MS1132PKG 0,74 1.64 NOTE: For SLS cartridges and WMT insert, see the WIDIA Turning (A-09-02078) catalog. Right-hand cutting units use right-hand cartridges. WIDIA A147 KM50TS Cutting Units
