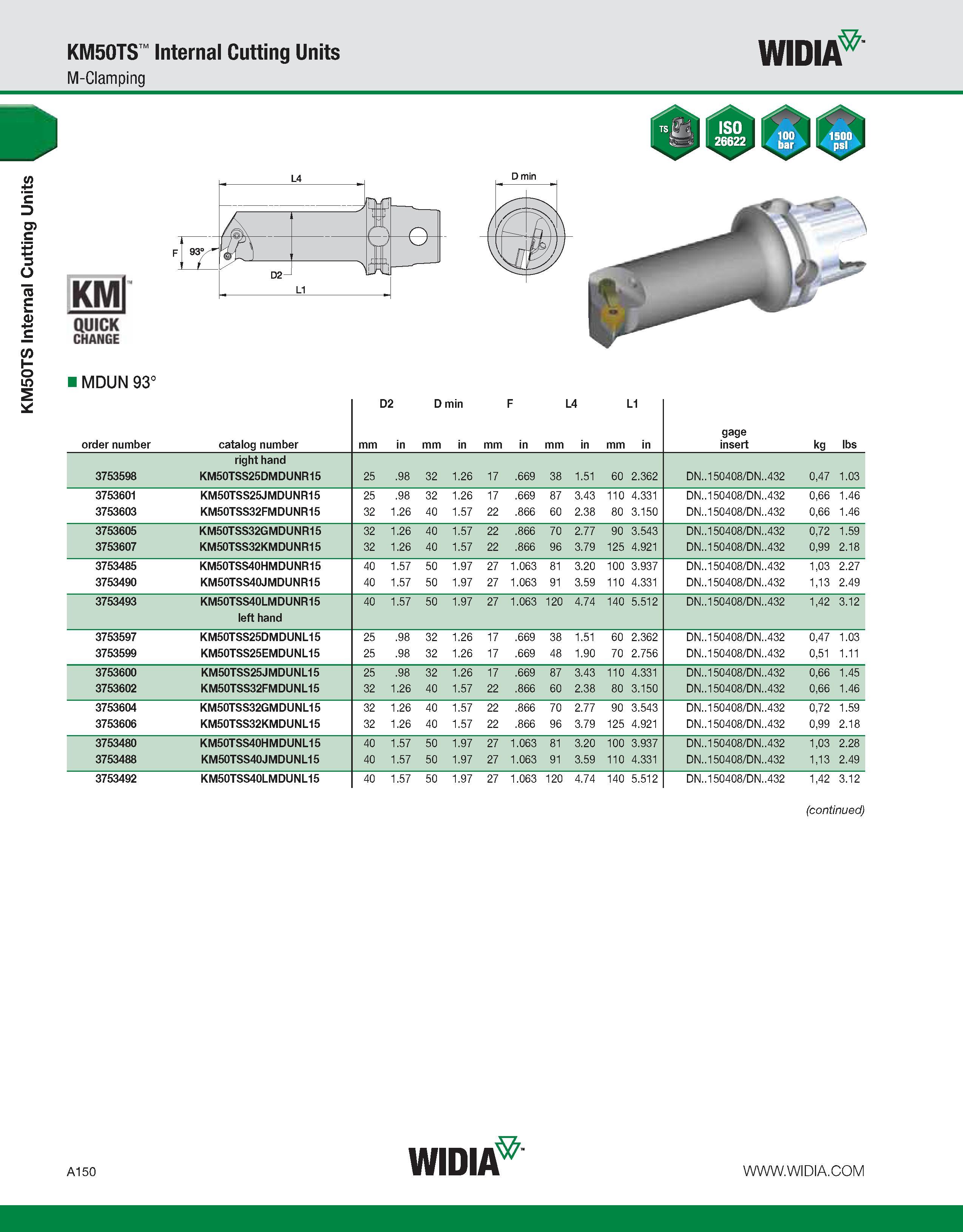

KM50TS Internal Cutting Units KM50TS Internal Cutting Units M-Clamping WIDIA KMl quick CHANGE MDUN 93° order number catalog number mm D2 in D min mm in mm F in mm L4 in mm L1 in gage insert kg lbs right hand 3753598 KM50TSS25DMDUNR15 25 .98 32 1.26 17 .669 38 1.51 60 2.362 DN..150408/DN..432 0,47 1.03 3753601 KM50TSS25JMDUNR15 25 .98 32 1.26 17 .669 87 3.43 110 4.331 DN..150408/DN..432 0,66 1.46 3753603 KM50TSS32FMDUNR15 32 1.26 40 1.57 22 .866 60 2.38 80 3.150 DN..150408/DN..432 0,66 1.46 3753605 KM50TSS32GMDUNR15 32 1.26 40 1.57 22 .866 70 2.77 90 3.543 DN..150408/DN..432 0,72 1.59 3753607 KM50TSS32KMDUNR15 32 1.26 40 1.57 22 .866 96 3.79 125 4.921 DN..150408/DN..432 0,99 2.18 3753485 KM50TSS40HMDUNR15 40 1.57 50 1.97 27 1.063 81 3.20 100 3.937 DN..150408/DN..432 1,03 2.27 3753490 KM50TSS40JMDUNR15 40 1.57 50 1.97 27 1.063 91 3.59 110 4.331 DN..150408/DN..432 1,13 2.49 3753493 KM50TSS40LMDUNR15 40 1.57 50 1.97 27 1.063 120 4.74 140 5.512 DN..150408/DN..432 1,42 3.12 left hand 3753597 KM50TSS25DMDUNL15 25 .98 32 1.26 17 .669 38 1.51 60 2.362 DN..150408/DN..432 0,47 1.03 3753599 KM50TSS25EMDUNL15 25 .98 32 1.26 17 .669 48 1.90 70 2.756 DN..150408/DN..432 0,51 1.11 3753600 KM50TSS25JMDUNL15 25 .98 32 1.26 17 .669 87 3.43 110 4.331 DN..150408/DN..432 0,66 1.45 3753602 KM50TSS32FMDUNL15 32 1.26 40 1.57 22 .866 60 2.38 80 3.150 DN..150408/DN..432 0,66 1.46 3753604 KM50TSS32GMDUNL15 32 1.26 40 1.57 22 .866 70 2.77 90 3.543 DN..150408/DN..432 0,72 1.59 3753606 KM50TSS32KMDUNL15 32 1.26 40 1.57 22 .866 96 3.79 125 4.921 DN..150408/DN..432 0,99 2.18 3753480 KM50TSS40HMDUNL15 40 1.57 50 1.97 27 1.063 81 3.20 100 3.937 DN..150408/DN..432 1,03 2.28 3753488 KM50TSS40JMDUNL15 40 1.57 50 1.97 27 1.063 91 3.59 110 4.331 DN..150408/DN..432 1,13 2.49 3753492 KM50TSS40LMDUNL15 40 1.57 50 1.97 27 1.063 120 4.74 140 5.512 DN..150408/DN..432 1,42 3.12 (continued) A150 WIDIA
