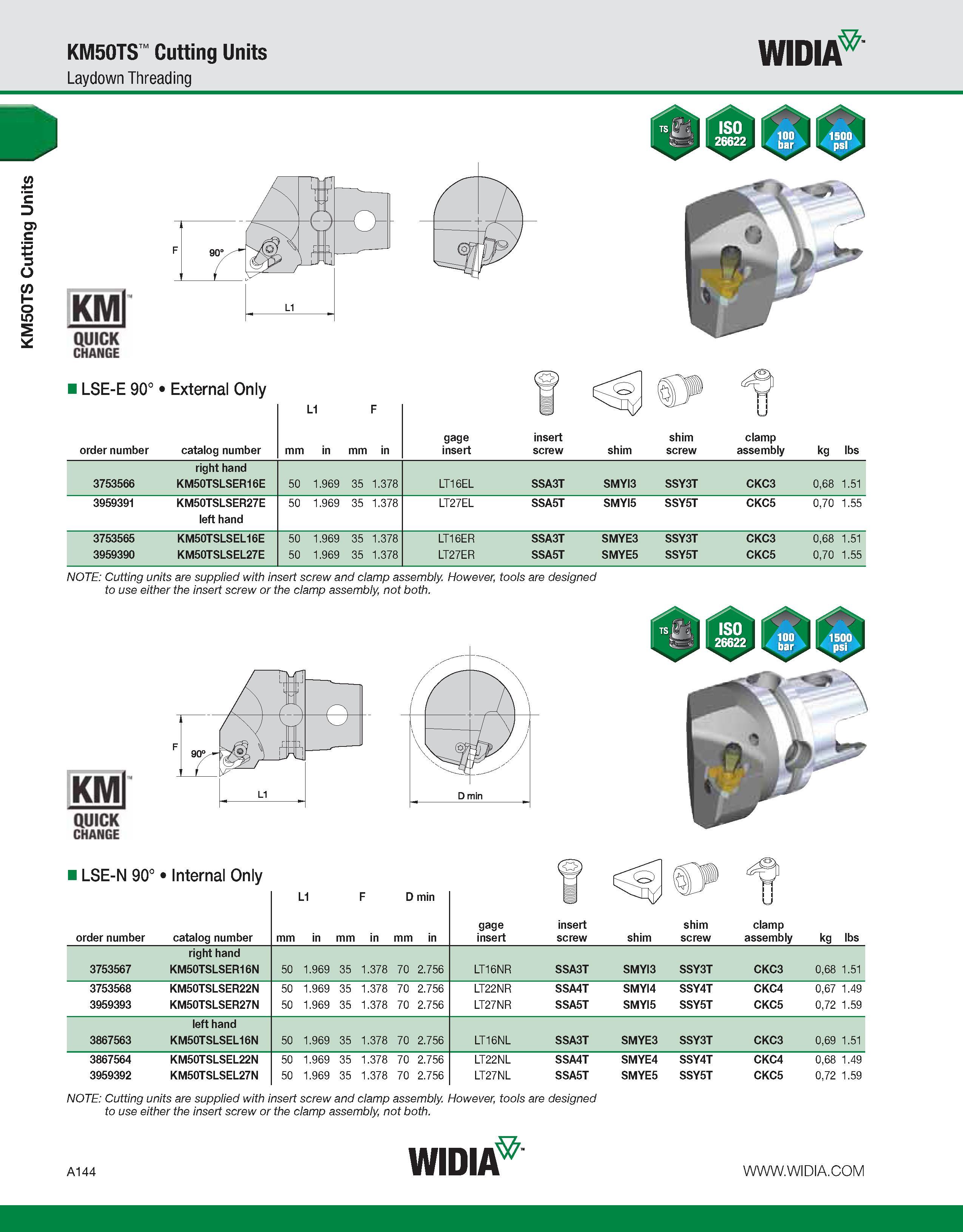

KM50TS Cutting Units KM50TS Cutting Units Laydown Threading WIDIA KMl QUICK CHANGE LSE-E 90° External Only order number catalog number mm L1 in mm F in gage insert insert screw shim shim screw clamp assembly kg lbs right hand 3753566 KM50TSLSER16E 50 1.969 35 1.378 LT16EL SSA3T SMYI3 SSY3T CKC3 0,68 1.51 3959391 KM50TSLSER27E left hand 50 1.969 35 1.378 LT27EL SSA5T SMYI5 SSY5T CKC5 0,70 1.55 3753565 KM50TSLSEL16E 50 1.969 35 1.378 LT16ER SSA3T SMYE3 SSY3T CKC3 0,68 1.51 3959390 KM50TSLSEL27E 50 1.969 35 1.378 LT27ER SSA5T SMYE5 SSY5T CKC5 0,70 1.55 NOTE: Cutting units are supplied with insert screw and clamp assembly. However, tools are designed to use either the insert screw or the clamp assembly, not both. KMl QUICK CHANGE NOTE: Cutting units are supplied with insert screw and clamp assembly. However, tools are designed to use either the insert screw or the clamp assembly, not both. A144 WIDIA
