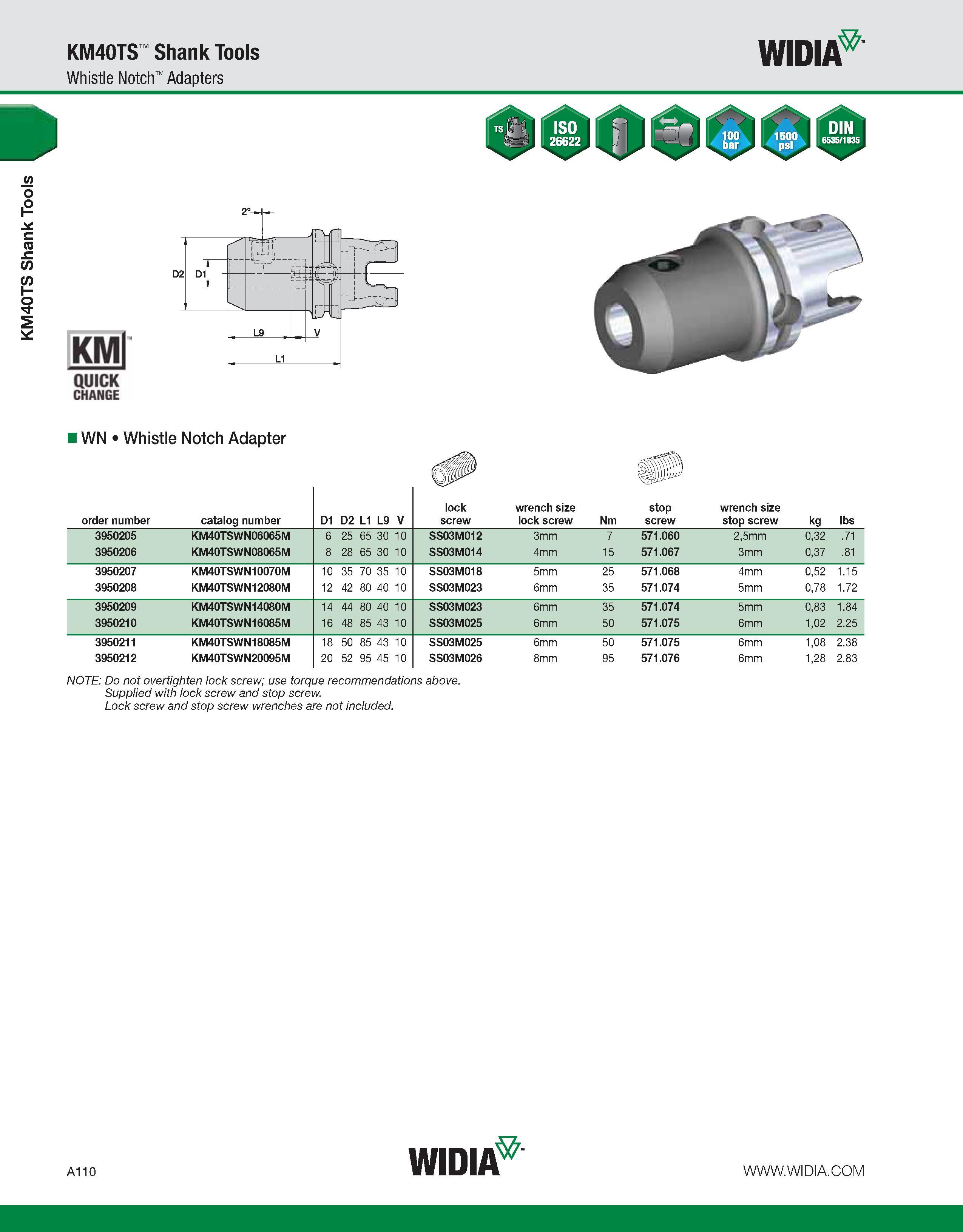

KM40TS Shank Tools KM40TS Shank Tools Whistle Notch Adapters WIDIA KMl QUICK CHANGE IWN Whistle Notch Adapter U 1 order number catalog number D1 D2 L1 L9 V lock screw wrench size lock screw Nm stop screw wrench size stop screw kg lbs 3950205 KM40TSWN06065M 6 25 65 30 10 SS03M012 3mm 7 571.060 2,5mm 0,32 .71 3950206 KM40TSWN08065M 8 28 65 30 10 SS03M014 4mm 15 571.067 3mm 0,37 .81 3950207 KM40TSWN10070M 10 35 70 35 10 SS03M018 5mm 25 571.068 4mm 0,52 1.15 3950208 KM40TSWN12080M 12 42 80 40 10 SS03M023 6mm 35 571.074 5mm 0,78 1.72 3950209 KM40TSWN14080M 14 44 80 40 10 SS03M023 6mm 35 571.074 5mm 0,83 1.84 3950210 KM40TSWN16085M 16 48 85 43 10 SS03M025 6mm 50 571.075 6mm 1,02 2.25 3950211 KM40TSWN18085M 18 50 85 43 10 SS03M025 6mm 50 571.075 6mm 1,08 2.38 3950212 KM40TSWN20095M 20 52 95 45 10 SS03M026 8mm 95 571.076 6mm 1,28 2.83 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw and stop screw. Lock screw and stop screw wrenches are not included. A110 WIDIA
