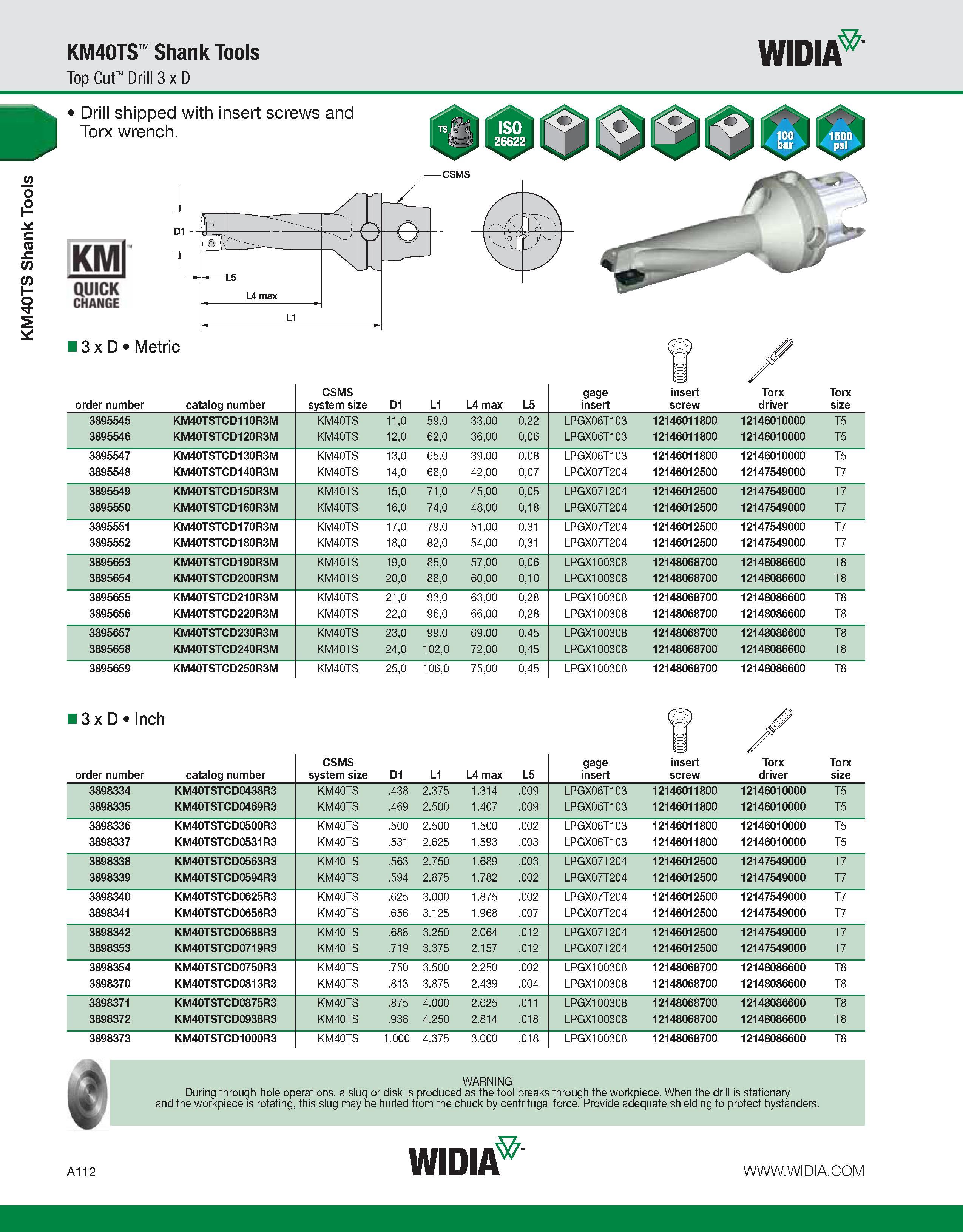

KM40TS Shank Tools KM40TS Shank Tools Top Cut Drill 3 x D WIDIA Drill shipped with insert screws and Torx wrench. KMl QUICK CHANGE 13 x D Metric order number catalog number CSMS system size D1 L1 L4 max L5 gage insert insert screw Torx driver Torx size 3895545 KM40TSTCD110R3M KM40TS 11,0 59,0 33,00 0,22 LPGX06T103 12146011800 12146010000 T5 3895546 KM40TSTCD120R3M KM40TS 12,0 62,0 36,00 0,06 LPGX06T103 12146011800 12146010000 T5 3895547 KM40TSTCD130R3M KM40TS 13,0 65,0 39,00 0,08 LPGX06T103 12146011800 12146010000 T5 3895548 KM40TSTCD140R3M KM40TS 14,0 68,0 42,00 0,07 LPGX07T204 12146012500 12147549000 T7 3895549 KM40TSTCD150R3M KM40TS 15,0 71,0 45,00 0,05 LPGX07T204 12146012500 12147549000 T7 3895550 KM40TSTCD160R3M KM40TS 16,0 74,0 48,00 0,18 LPGX07T204 12146012500 12147549000 T7 3895551 KM40TSTCD170R3M KM40TS 17,0 79,0 51,00 0,31 LPGX07T204 12146012500 12147549000 T7 3895552 KM40TSTCD180R3M KM40TS 18,0 82,0 54,00 0,31 LPGX07T204 12146012500 12147549000 T7 3895653 KM40TSTCD190R3M KM40TS 19,0 85,0 57,00 0,06 LPGX100308 12148068700 12148086600 T8 3895654 KM40TSTCD200R3M KM40TS 20,0 88,0 60,00 0,10 LPGX100308 12148068700 12148086600 T8 3895655 KM40TSTCD210R3M KM40TS 21,0 93,0 63,00 0,28 LPGX100308 12148068700 12148086600 T8 3895656 KM40TSTCD220R3M KM40TS 22,0 96,0 66,00 0,28 LPGX100308 12148068700 12148086600 T8 3895657 KM40TSTCD230R3M KM40TS 23,0 99,0 69,00 0,45 LPGX100308 12148068700 12148086600 T8 3895658 KM40TSTCD240R3M KM40TS 24,0 102,0 72,00 0,45 LPGX100308 12148068700 12148086600 T8 3895659 KM40TSTCD250R3M KM40TS 25,0 106,0 75,00 0,45 LPGX100308 12148068700 12148086600 T8 13 x D Inch order number catalog number CSMS system size D1 L1 L4 max L5 gage insert insert screw Torx driver Torx size 3898334 KM40TSTCD0438R3 KM40TS .438 2.375 1.314 .009 LPGX06T103 12146011800 12146010000 T5 3898335 KM40TSTCD0469R3 KM40TS .469 2.500 1.407 .009 LPGX06T103 12146011800 12146010000 T5 3898336 KM40TSTCD0500R3 KM40TS .500 2.500 1.500 .002 LPGX06T103 12146011800 12146010000 T5 3898337 KM40TSTCD0531R3 KM40TS .531 2.625 1.593 .003 LPGX06T103 12146011800 12146010000 T5 3898338 KM40TSTCD0563R3 KM40TS .563 2.750 1.689 .003 LPGX07T204 12146012500 12147549000 T7 3898339 KM40TSTCD0594R3 KM40TS .594 2.875 1.782 .002 LPGX07T204 12146012500 12147549000 T7 3898340 KM40TSTCD0625R3 KM40TS .625 3.000 1.875 .002 LPGX07T204 12146012500 12147549000 T7 3898341 KM40TSTCD0656R3 KM40TS .656 3.125 1.968 .007 LPGX07T204 12146012500 12147549000 T7 3898342 KM40TSTCD0688R3 KM40TS .688 3.250 2.064 .012 LPGX07T204 12146012500 12147549000 T7 3898353 KM40TSTCD0719R3 KM40TS .719 3.375 2.157 .012 LPGX07T204 12146012500 12147549000 T7 3898354 KM40TSTCD0750R3 KM40TS .750 3.500 2.250 .002 LPGX100308 12148068700 12148086600 T8 3898370 KM40TSTCD0813R3 KM40TS .813 3.875 2.439 .004 LPGX100308 12148068700 12148086600 T8 3898371 KM40TSTCD0875R3 KM40TS .875 4.000 2.625 .011 LPGX100308 12148068700 12148086600 T8 3898372 KM40TSTCD0938R3 KM40TS .938 4.250 2.814 .018 LPGX100308 12148068700 12148086600 T8 3898373 KM40TSTCD1000R3 KM40TS 1.000 4.375 3.000 .018 LPGX100308 12148068700 12148086600 T8 WARNING During through-hole operations, a slug or disk is produced as the tool breaks through the workpiece. When the drill is stationary and the workpiece is rotating, this slug may be hurled from the chuck by centrifugal force. Provide adequate shielding to protect bystanders. A112 WIDIA
