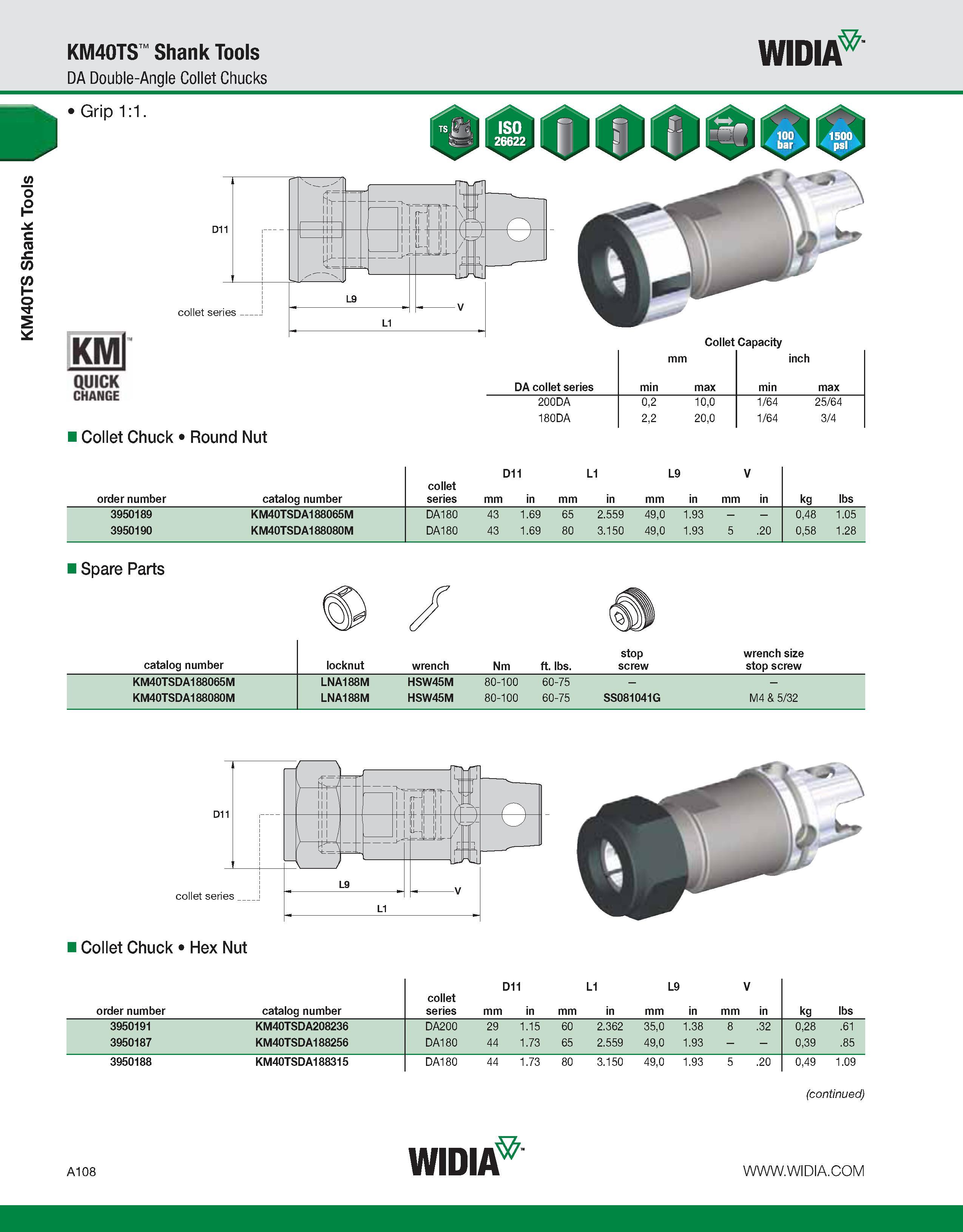

KM40TS Shank Tools KM40TS Shank Tools DA Double-Angle Collet Chucks WIDIA Grip 1:1. KMl QUICK CHANGE Collet Capacity DA collet series min mm max min inch max 200DA 0,2 10,0 1/64 25/64 180DA 2,2 20,0 1/64 3/4 Collet Chuck Round Nut order number catalog number collet series D11 mm in mm L1 in L9 mm in V mm in kg lbs 3950189 KM40TSDA188065M DA180 43 1.69 65 2.559 49,0 1.93 0,48 1.05 3950190 KM40TSDA188080M DA180 43 1.69 80 3.150 49,0 1.93 5 .20 0,58 1.28 Spare Parts catalog number locknut wrench Nm ft. lbs. stop screw wrench size stop screw KM40TSDA188065M LNA188M HSW45M 80-100 60-75 KM40TSDA188080M LNA188M HSW45M 80-100 60-75 SS081041G M4 & 5/32 Collet Chuck Hex Nut order number catalog number collet series mm D11 in mm L1 in L9 mm in V mm in kg lbs 3950191 KM40TSDA208236 DA200 29 1.15 60 2.362 35,0 1.38 8 .32 0,28 .61 3950187 KM40TSDA188256 DA180 44 1.73 65 2.559 49,0 1.93 0,39 .85 3950188 KM40TSDA188315 DA180 44 1.73 80 3.150 49,0 1.93 5 .20 0,49 1.09 (continued) A108 WIDIA
