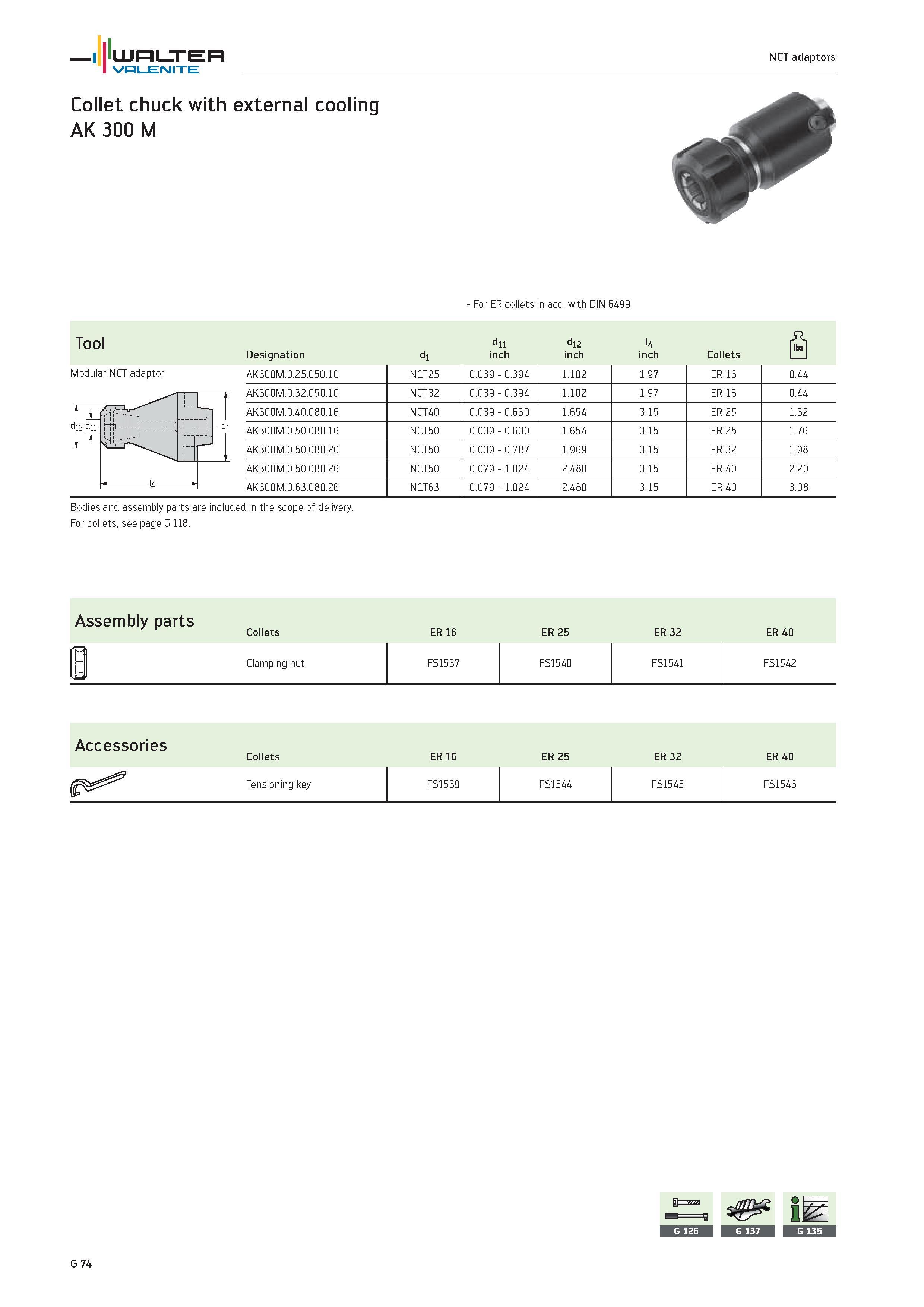

- For ER collets in acc. with DIN 6499 Tool d11 d12 l4 ribsi Designation d1 inch inch inch Collets II Modular NCT adaptor AK300M.0.25.050.10 NCT25 0.039 0.394 1.102 1.97 ER 16 0.44 AK300M.0.32.050.10 NCT32 0.039 0.394 1.102 1.97 ER 16 0.44 AK300M.0.40.080.16 NCT40 0.039 0.630 1.654 3.15 ER 25 1.32 AK300M.0.50.080.16 NCT50 0.039 0.630 1.654 3.15 ER 25 1.76 AK300M.0.50.080.20 NCT50 0.039 0.787 1.969 3.15 ER 32 1.98 AK300M.0.50.080.26 NCT50 0.079 1.024 2.480 3.15 ER 40 2.20 AK300M.0.63.080.26 NCT63 0.079 1.024 2.480 3.15 ER 40 3.08 Bodies and assembly parts are included in the scope of delivery. For collets, see page G 118. Assembly parts Collets ER 16 ER 25 ER 32 ER 40 E s Clamping nut FS1537 FS1540 FS1541 FS1542 Accessories Collets ER 16 ER 25 ER 32 ER 40 Tensioning key FS1539 FS1544 FS1545 FS1546 G 74
