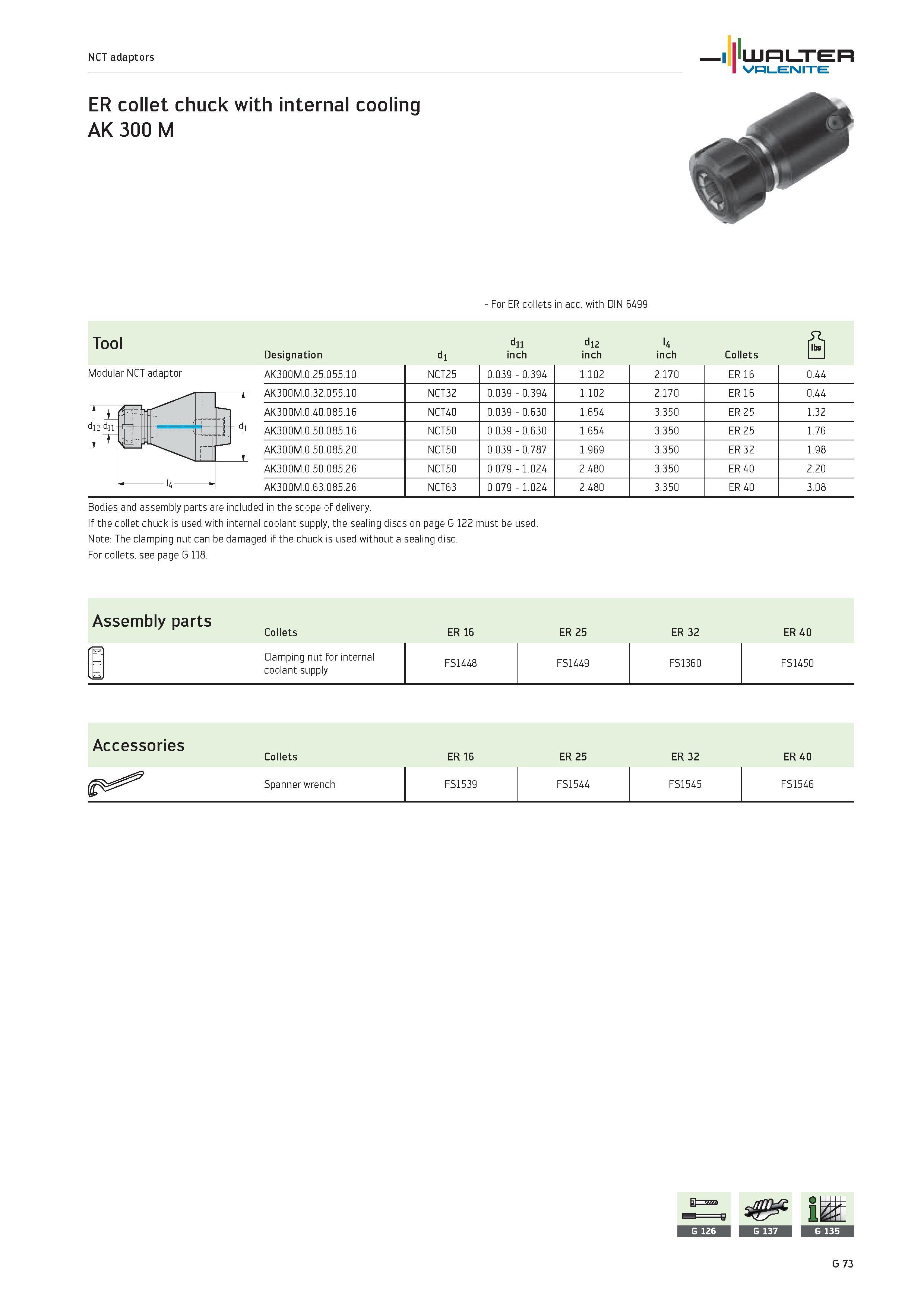

- For ER collets in acc. with DIN 6499 Tool dii di2 l4 fitei Designation di inch inch inch Collets 1 1 Modular NCT adaptor AK300M.0.25.055.10 NCT25 0.039 0.394 1.102 2.170 ER 16 0.44 AK300M.0.32.055.10 NCT32 0.039 0.394 1.102 2.170 ER 16 0.44 AK300M.0.40.085.16 NCT40 0.039 0.630 1.654 3.350 ER 25 1.32 AK300M.0.50.085.16 NCT50 0.039 0.630 1.654 3.350 ER 25 1.76 AK300M.0.50.085.20 NCT50 0.039 0.787 1.969 3.350 ER 32 1.98 AK300M.0.50.085.26 NCT50 0.079 1.024 2.480 3.350 ER 40 2.20 AK300M.0.63.085.26 NCT63 0.079 1.024 2.480 3.350 ER 40 3.08 Bodies and assembly parts are included in the scope of delivery. If the collet chuck is used with internal coolant supply, the sealing discs on page G 122 must be used. Note The clamping nut can be damaged if the chuck is used without a sealing disc. For collets, see page G 118. Assembly parts Collets ER i6 ER 25 ER 32 ER 40 F ju Clamping nut for internal coolant supply FS1448 FS1449 FS1360 FS1450 Accessories Collets ER i6 ER 25 ER 32 ER 40 Spanner wrench FS1539 FS1544 FS1545 FS1546
