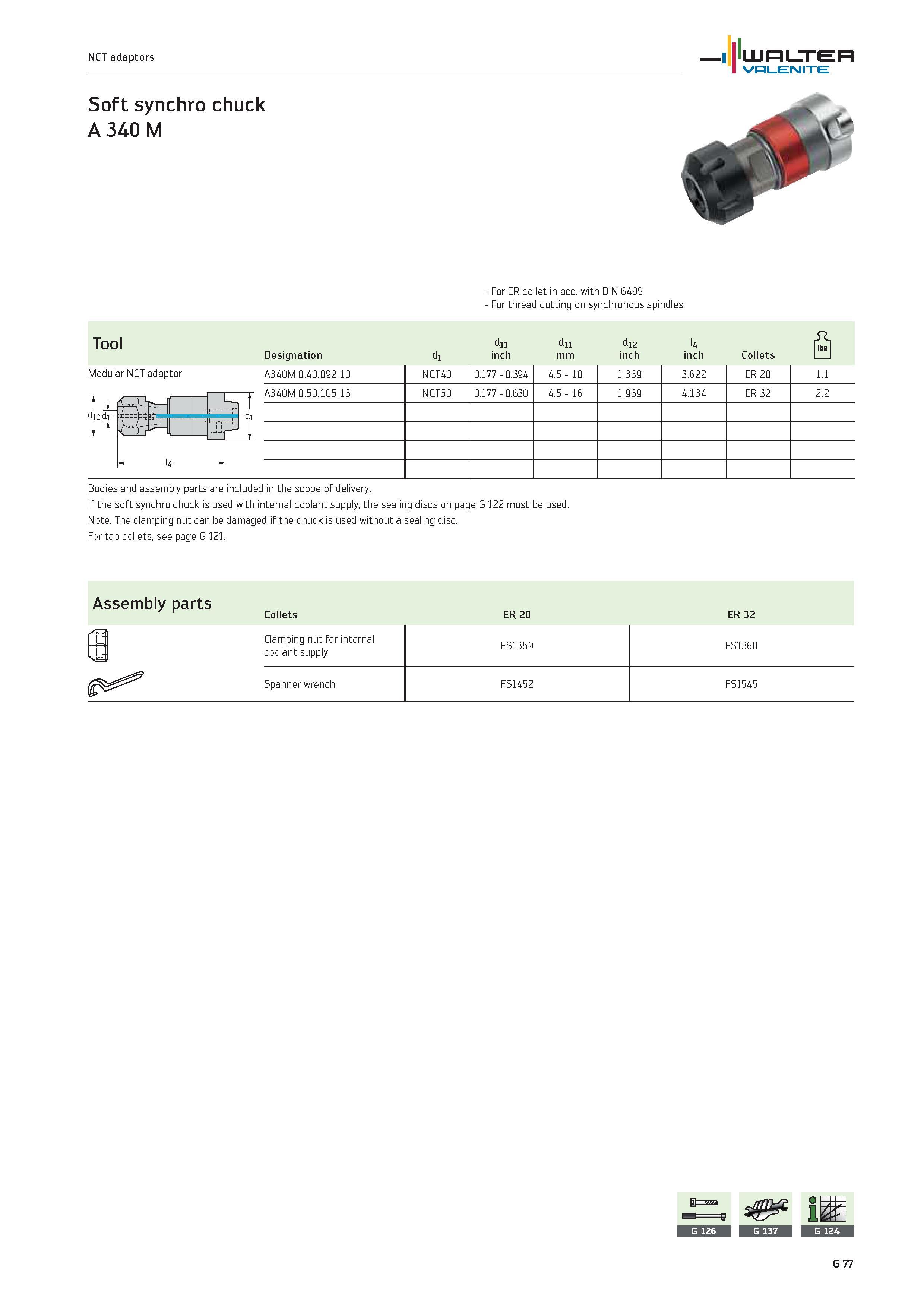

- For ER collet in acc. with DIN 6499 For thread cutting on synchronous spindles Tool dii dii di2 l4 fitei Designation di inch mm inch inch Collets 1 1 Modular NCT adaptor A340M.0.40.092.10 NCT40 0.177 0.394 4.5 10 1.339 3.622 ER 20 1.1 A340M.0.50.105.16 NCT50 0.177 0.630 4.5 16 1.969 4.134 ER 32 2.2 Bodies and assembly parts are included in the scope of delivery. If the soft synchro chuck is used with internal coolant supply, the sealing discs on page G 122 must be used. Note The clamping nut can be damaged if the chuck is used without a sealing disc. For tap collets, see page G 121. Assembly parts Collets ER 20 ER 32 Clamping nut for internal coolant supply FS1359 FS1360 Spanner wrench FS1452 FS1545 G 77
