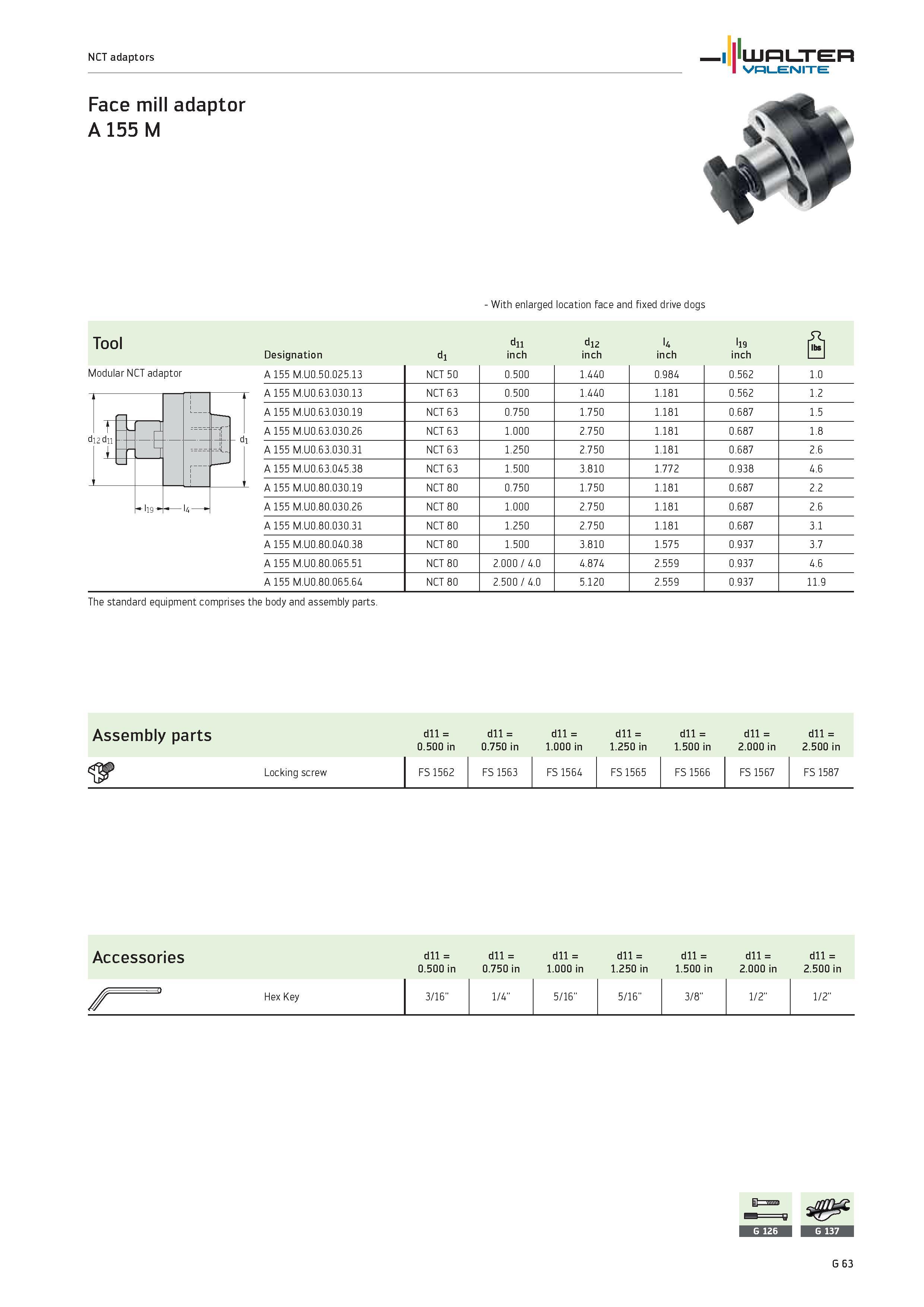

NCT adaptors WALTER Valenite Face mill adaptor A 155 M With enlarged location face and fixed drive dogs Tool d11 d12 U l19 Designation d1 inch inch inch inch 1 1 Modular NCT adaptor A 155 M.U0.50.025.13 NCT 50 0.500 1.440 0.984 0.562 1.0 A 155 M.U0.63.030.13 NCT 63 0.500 1.440 1.181 0.562 1.2 A 155 M.U0.63.030.19 NCT 63 0.750 1.750 1.181 0.687 1.5 A 155 M.U0.63.030.26 NCT 63 1.000 2.750 1.181 0.687 1.8 A 155 M.U0.63.030.31 NCT 63 1.250 2.750 1.181 0.687 2.6 A 155 M.U0.63.045.38 NCT 63 1.500 3.810 1.772 0.938 4.6 A 155 M.U0.80.030.19 NCT 80 0.750 1.750 1.181 0.687 2.2 A 155 M.U0.80.030.26 NCT 80 1.000 2.750 1.181 0.687 2.6 A 155 M.U0.80.030.31 NCT 80 1.250 2.750 1.181 0.687 3.1 A 155 M.U0.80.040.38 NCT 80 1.500 3.810 1.575 0.937 3.7 A 155 M.U0.80.065.51 NCT 80 2.000 / 4.0 4.874 2.559 0.937 4.6 A 155 M.U0.80.065.64 NCT 80 2.500 / 4.0 5.120 2.559 0.937 11.9 The standard equipment comprises the body and assembly parts. Assembly parts d11 0.500 in d11 0.750 in d11 1.000 in d11 1.250 in d11 1.500 in d11 2.000 in d11 2.500 in Locking screw FS 1562 FS 1563 FS 1564 FS 1565 FS 1566 FS 1567 FS 1587 Accessories d11 0.500 in d11 0.750 in d11 1.000 in d11 1.250 in d11 1.500 in d11 2.000 in d11 2.500 in / “ Hex Key 3/16" 1/4" 5/16" 5/16" 3/8" 1/2" 1/2" G 63
