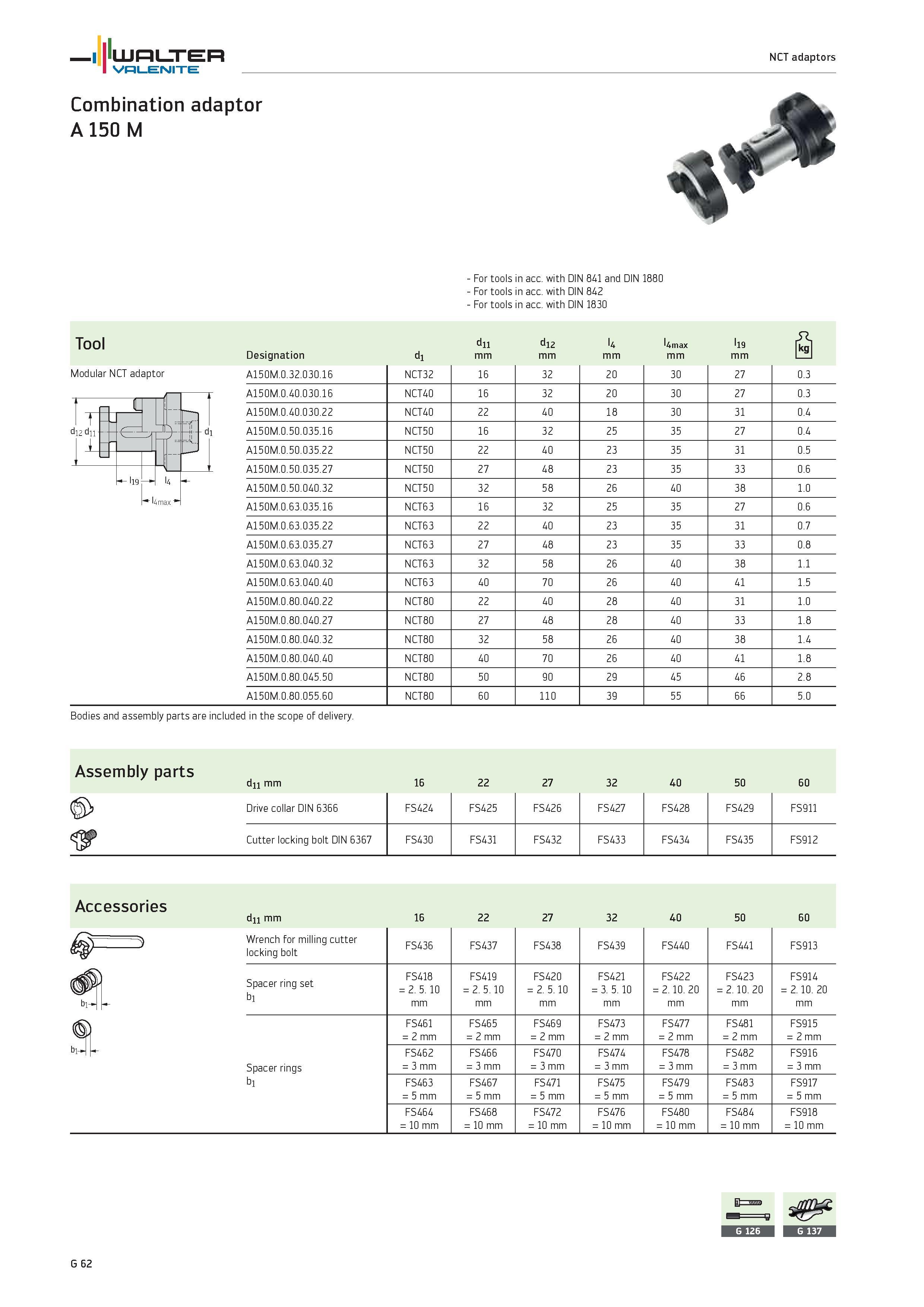

WALTER Valenite Combination adaptor A 150 M NCT adaptors For tools in acc. with DIN 841 and DIN 1880 For tools in acc. with DIN 842 For tools in acc. with DIN 1830 Tool Modular NCT adaptor d11 d12 U Umax l19 N Designation d1 mm 13i A150M.0.32.030.16 NCT32 16 32 20 30 27 0.3 A150M.0.40.030.16 NCT40 16 32 20 30 27 0.3 A150M.0.40.030.22 NCT40 22 40 18 30 31 0.4 A150M.0.50.035.16 NCT50 16 32 25 35 27 0.4 A150M.0.50.035.22 NCT50 22 40 23 35 31 0.5 A150M.0.50.035.27 NCT50 27 48 23 35 33 0.6 A150M.0.50.040.32 NCT50 32 58 26 40 38 1.0 A150M.0.63.035.16 NCT63 16 32 25 35 27 0.6 A150M.0.63.035.22 NCT63 22 40 23 35 31 0.7 A150M.0.63.035.27 NCT63 27 48 23 35 33 0.8 A150M.0.63.040.32 NCT63 32 58 26 40 38 1.1 A150M.0.63.040.40 NCT63 40 70 26 40 41 1.5 A150M.0.80.040.22 NCT80 22 40 28 40 31 1.0 A150M.0.80.040.27 NCT80 27 48 28 40 33 1.8 A150M.0.80.040.32 NCT80 32 58 26 40 38 1.4 A150M.0.80.040.40 NCT80 40 70 26 40 41 1.8 A150M.0.80.045.50 NCT80 50 90 29 45 46 2.8 A150M.0.80.055.60 NCT80 60 110 39 55 66 5.0 Bodies and assembly parts are included in the scope of delivery. Assembly parts d11 mm 16 22 27 32 40 50 60 < > Drive collar DIN 6366 FS424 FS425 FS426 FS427 FS428 FS429 FS911 Cutter locking bolt DIN 6367 FS430 FS431 FS432 FS433 FS434 FS435 FS912 Accessories d11 mm 16 22 27 32 40 50 60 Wrench for milling cutter locking bolt FS436 FS437 FS438 FS439 FS440 FS441 FS913 Spacer ring set FS418 2. 5. 10 mm FS419 2. 5.10 mm FS420 2. 5. 10 mm FS421 3. 5. 10 mm FS422 2. 10. 20 mm FS423 2. 10. 20 mm FS914 2. 10. 20 mm b t Spacer rings bi FS461 2 mm FS465 2 mm FS469 2 mm FS473 2 mm FS477 2 mm FS481 2 mm FS915 2 mm FS462 3 mm FS466 3 mm FS470 3 mm FS474 3 mm FS478 3 mm FS482 3 mm FS916 3 mm FS463 5 mm FS467 5 mm FS471 5 mm FS475 5 mm FS479 5 mm FS483 5 mm FS917 5 mm FS464 10 mm FS468 10 mm FS472 10 mm FS476 10 mm FS480 10 mm FS484 10 mm FS918 10 mm G 62
