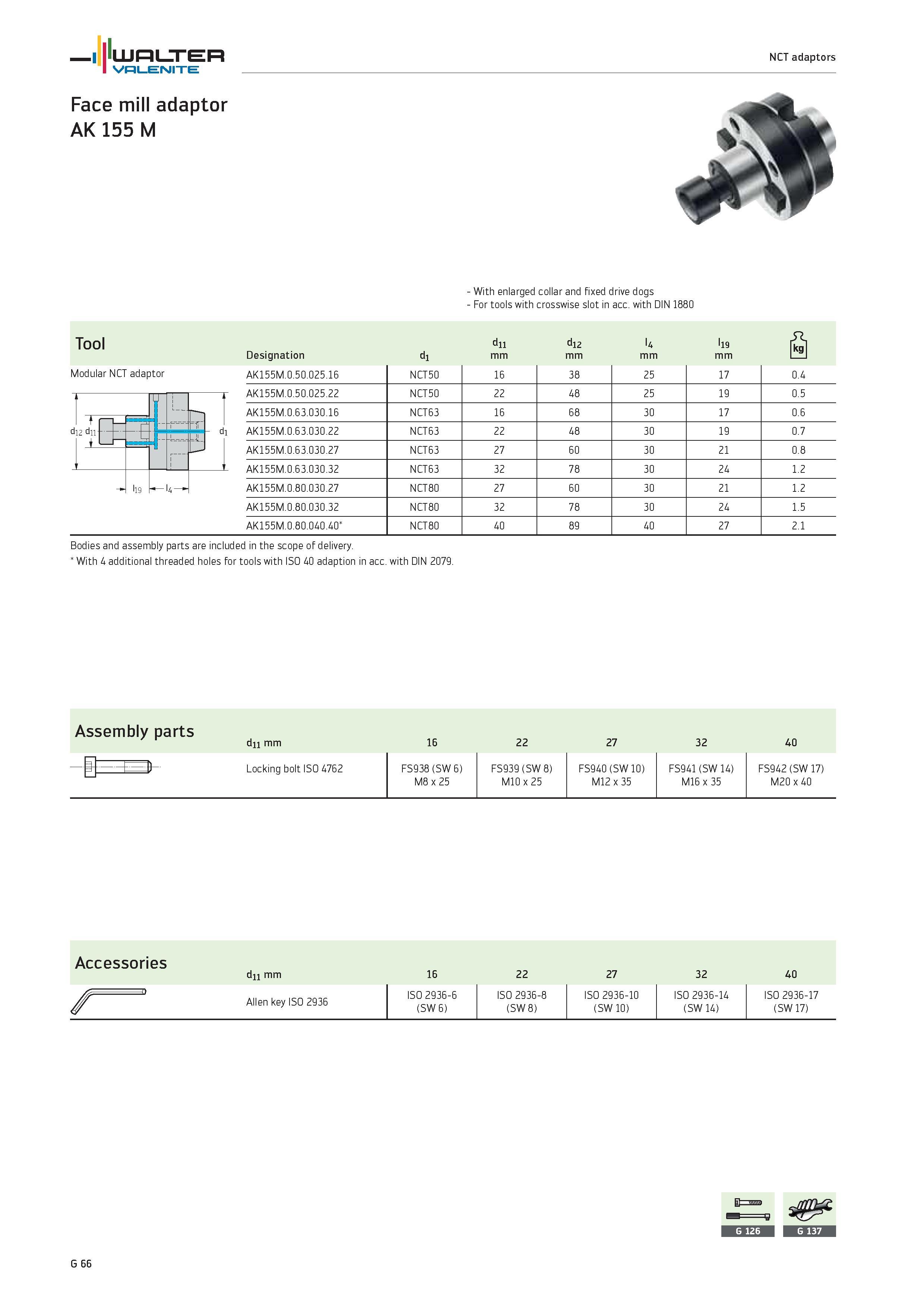

- With enlarged collar and fixed drive dogs For tools with crosswise slot in acc. with DIN 1880 Tool Designation d1 dn mm d12 mm l4 mm l19 mm S Modular NCT adaptor AK155M.0.50.025.16 NCT50 16 38 25 17 0.4 f 1 H r y AK155M.0.50.025.22 NCT50 22 48 25 19 0.5 It L" n AK155M.0.63.030.16 NCT63 16 68 30 17 0.6 di2 dii f di AK155M.0.63.030.22 NCT63 22 48 30 19 0.7 i -i r fj AK155M.0.63.030.27 NCT63 27 60 30 21 0.8 1 L AK155M.0.63.030.32 NCT63 32 78 30 24 1.2 ll9 4 AK155M.0.80.030.27 NCT80 27 60 30 21 1.2 AK155M.0.80.030.32 NCT80 32 78 30 24 1.5 AK155M.0.80.040.40 NCT80 40 89 40 27 2.1 Bodies and assembly parts are included in the scope of delivery. With 4 additional threaded holes for tools with ISO 40 adaption in acc. with DIN 2079. Assembly parts dn mm 16 22 27 32 40 F Locking bolt ISO 4762 FS938 (SW 6) M8 x 25 FS939 (SW 8) M10 x 25 FS940 (SW 10) M12 x 35 FS941 (SW 14) M16 x 35 FS942 (SW 17) M20 x 40 Accessories d11 mm 16 22 27 32 40 Allen key ISO 2936 ISO 2936-6 (SW 6) ISO 2936-8 (SW 8) ISO 2936-10 (SW 10) ISO 2936-14 (SW 14) ISO 2936-17 (SW 17) G 66
