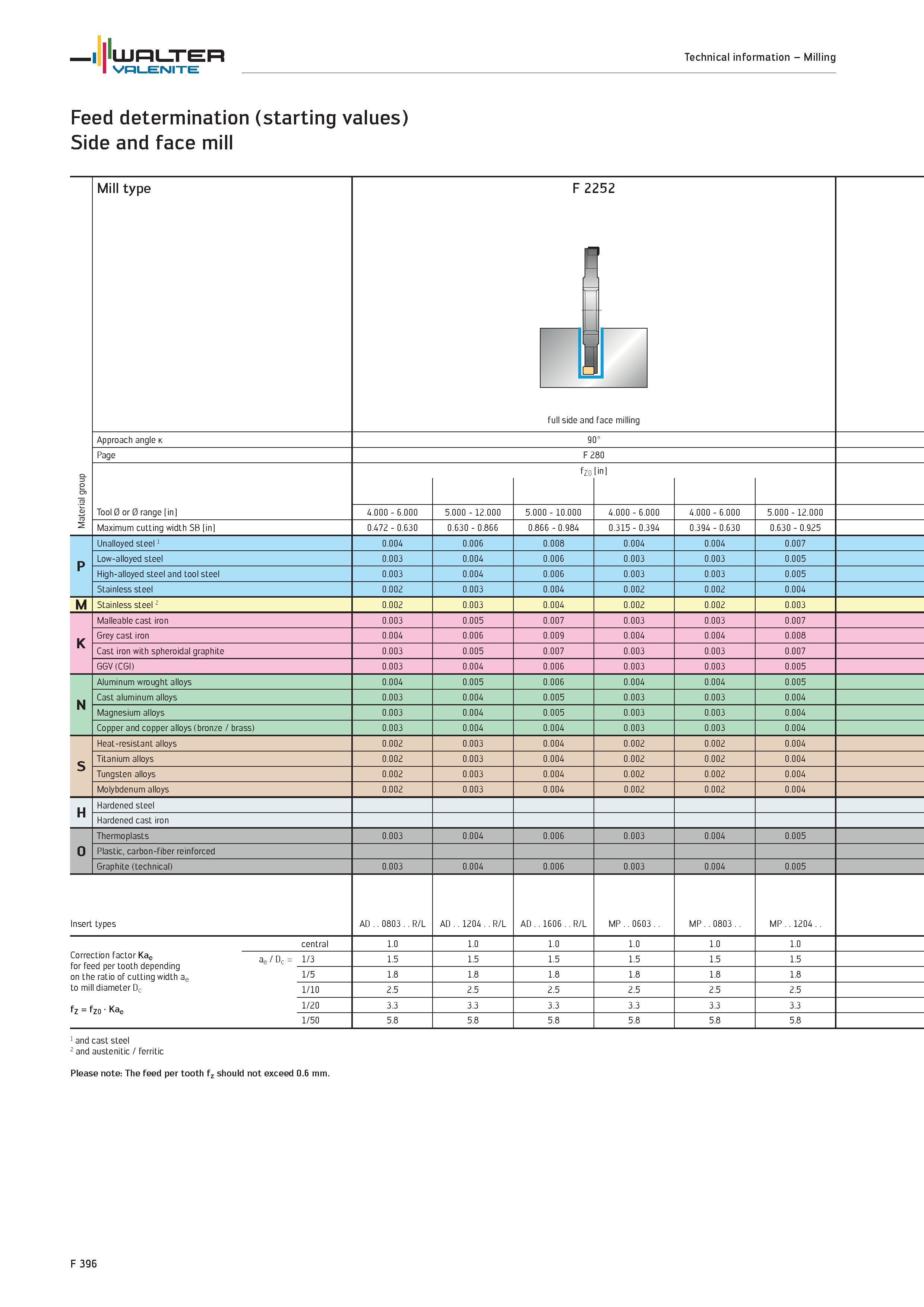

WALTER Valenite Technical information Milling Feed determination (starting values) Side and face mill Material group Mill type F it 252 full side and face millinq Approach angle k 90° Page F 280 Tool 0 or 0 range in fZ0 in 4.000 6.000 5.000 12.000 5.000 10.000 4.000 6.000 4.000 6.000 5.000 12.000 Maximum cutting width SB in 0.472 0.630 0.630 0.866 0.866 0.984 0.315 0.394 0.394 0.630 0.630 0.925 p Unalloyed steel 1 0.004 0.006 0.008 0.004 0.004 0.007 Low-alloyed steel 0.003 0.004 0.006 0.003 0.003 0.005 High-alloyed steel and tool steel 0.003 0.004 0.006 0.003 0.003 0.005 Stainless steel 0.002 0.003 0.004 0.002 0.002 0.004 M Stainless steel 2 0.002 0.003 0.004 0.002 0.002 0.003 K Malleable cast iron 0.003 0.005 0.007 0.003 0.003 0.007 Grey cast iron 0.004 0.006 0.009 0.004 0.004 0.008 Cast iron with spheroidal graphite 0.003 0.005 0.007 0.003 0.003 0.007 GGV (CGI) 0.003 0.004 0.006 0.003 0.003 0.005 N Aluminum wrought alloys 0.004 0.005 0.006 0.004 0.004 0.005 Cast aluminum alloys 0.003 0.004 0.005 0.003 0.003 0.004 Magnesium alloys 0.003 0.004 0.005 0.003 0.003 0.004 Copper and copper alloys (bronze / brass) 0.003 0.004 0.004 0.003 0.003 0.004 S Heat-resistant alloys 0.002 0.003 0.004 0.002 0.002 0.004 Titanium alloys 0.002 0.003 0.004 0.002 0.002 0.004 Tungsten alloys 0.002 0.003 0.004 0.002 0.002 0.004 Molybdenum alloys 0.002 0.003 0.004 0.002 0.002 0.004 H Hardened steel Hardened cast iron O Thermoplasts 0.003 0.004 0.006 0.003 0.004 0.005 Plastic, carbon-fiber reinforced Graphite (technical) 0.003 0.004 0.006 0.003 0.004 0.005 Insert types AP 0803 R/L R/ 4 CM P A AP 1606 R/L MP 0603 MP 0803 MP 1204 Corre for fe on th to mi fz central 1.0 1.0 1.0 1.0 1.0 1.0 :t,ion.Kh ae / Dc 1/3 1.5 1.5 1.5 1.5 1.5 1.5 3 ratio of cuttinq width ae 1/5 1.8 1.8 1.8 1.8 1.8 1.8 diameter Dc 1/10 2.5 2.5 2.5 2.5 2.5 2.5 1/20 3.3 3.3 3.3 3.3 3.3 3.3 1/50 5.8 5.8 5.8 5.8 5.8 5.8 1 and cast steel 2 and austenitic / ferritic Please note The feed per tooth fz should not exceed 0.6 mm. F 396
