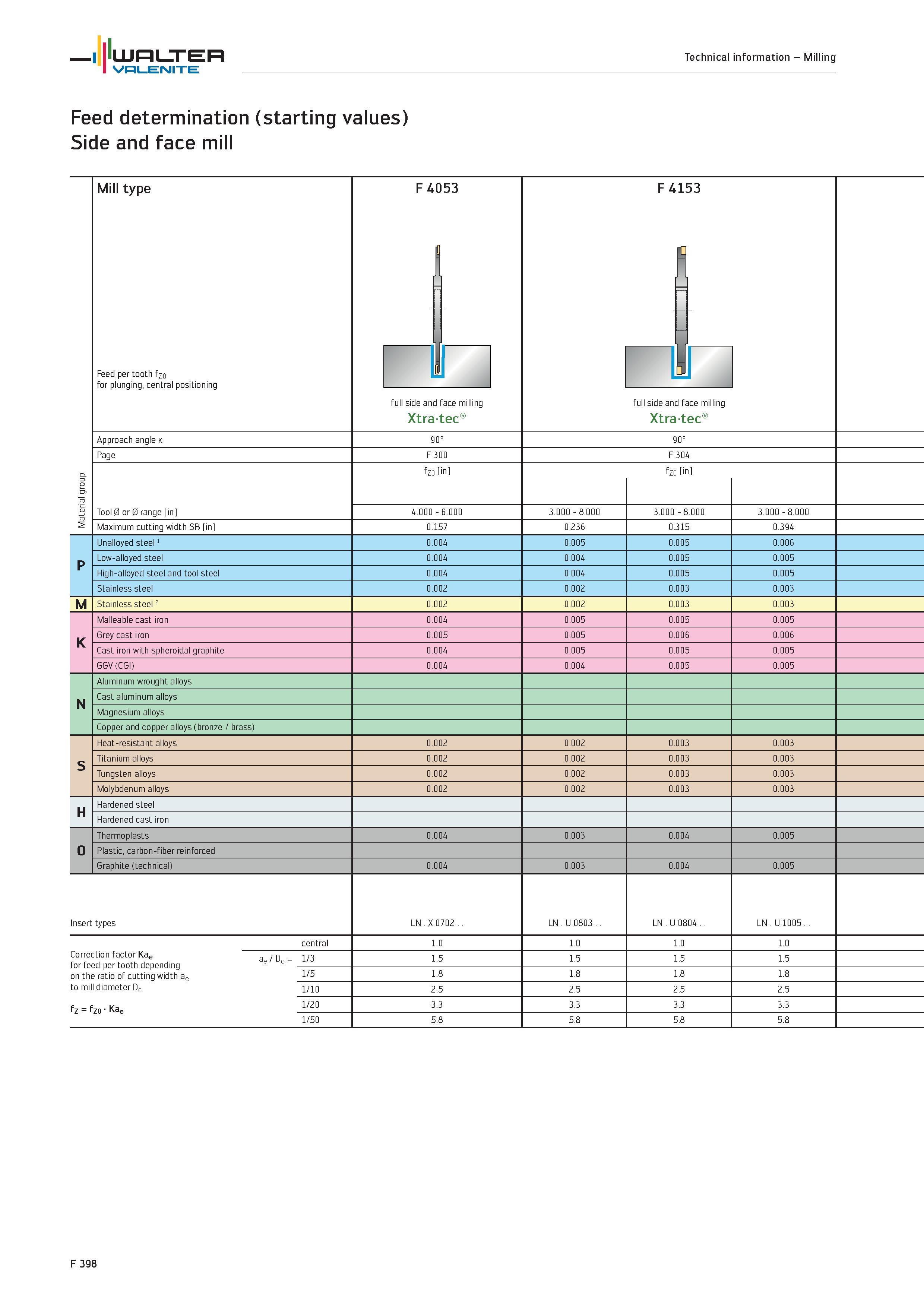

WALTER Valenite Technical information Milling Feed determination (starting values) Side and face mill Material group Mill type Feed per tooth fzo for plunging, central positioning F 4 D53 F 4 1 53 ’ I r I A full side and face milling Xtratec full side and face milling Xtratec Approach angle k 90° 90° Page F 300 F 304 Tool 0 or 0 range in fz0 in fz0 in 4.000 6.000 3.000 8.000 3.000 8.000 3.000 8.000 Maximum cutting width SB in 0.157 0.236 0.315 0.394 p Unalloyed steel 1 0.004 0.005 0.005 0.006 Low-alloyed steel 0.004 0.004 0.005 0.005 High-alloyed steel and tool steel 0.004 0.004 0.005 0.005 Stainless steel 0.002 0.002 0.003 0.003 M Stainless steel 2 0.002 0.002 0.003 0.003 K Malleable cast iron 0.004 0.005 0.005 0.005 Grey cast iron 0.005 0.005 0.006 0.006 Cast iron with spheroidal graphite 0.004 0.005 0.005 0.005 GGV (CGI) 0.004 0.004 0.005 0.005 N Aluminum wrought alloys Cast aluminum alloys Magnesium alloys Copper and copper alloys (bronze / brass) S Heat-resistant alloys 0.002 0.002 0.003 0.003 Titanium alloys 0.002 0.002 0.003 0.003 Tungsten alloys 0.002 0.002 0.003 0.003 Molybdenum alloys 0.002 0.002 0.003 0.003 H Hardened steel Hardened cast iron O Thermoplasts 0.004 0.003 0.004 0.005 Plastic, carbon-fiber reinforced Graphite (technical) 0.004 0.003 0.004 0.005 Insert types LN X 0702.. LN U 0803 LN U 0804 LN U 1005 Corre for fe on th to mil fz central 1.0 1.0 1.0 1.0 -tion factor Kae ae / Dc 1/3 1.5 1.5 1.5 1.5 3 ratio of cutting width ae 1/5 1.8 1.8 1.8 1.8 Dc ter et m ia di 2.5 2.5 2.5 2.5 Ka 1/20 3.3 3.3 3.3 3.3 1/50 5.8 5.8 5.8 5.8 F 398
