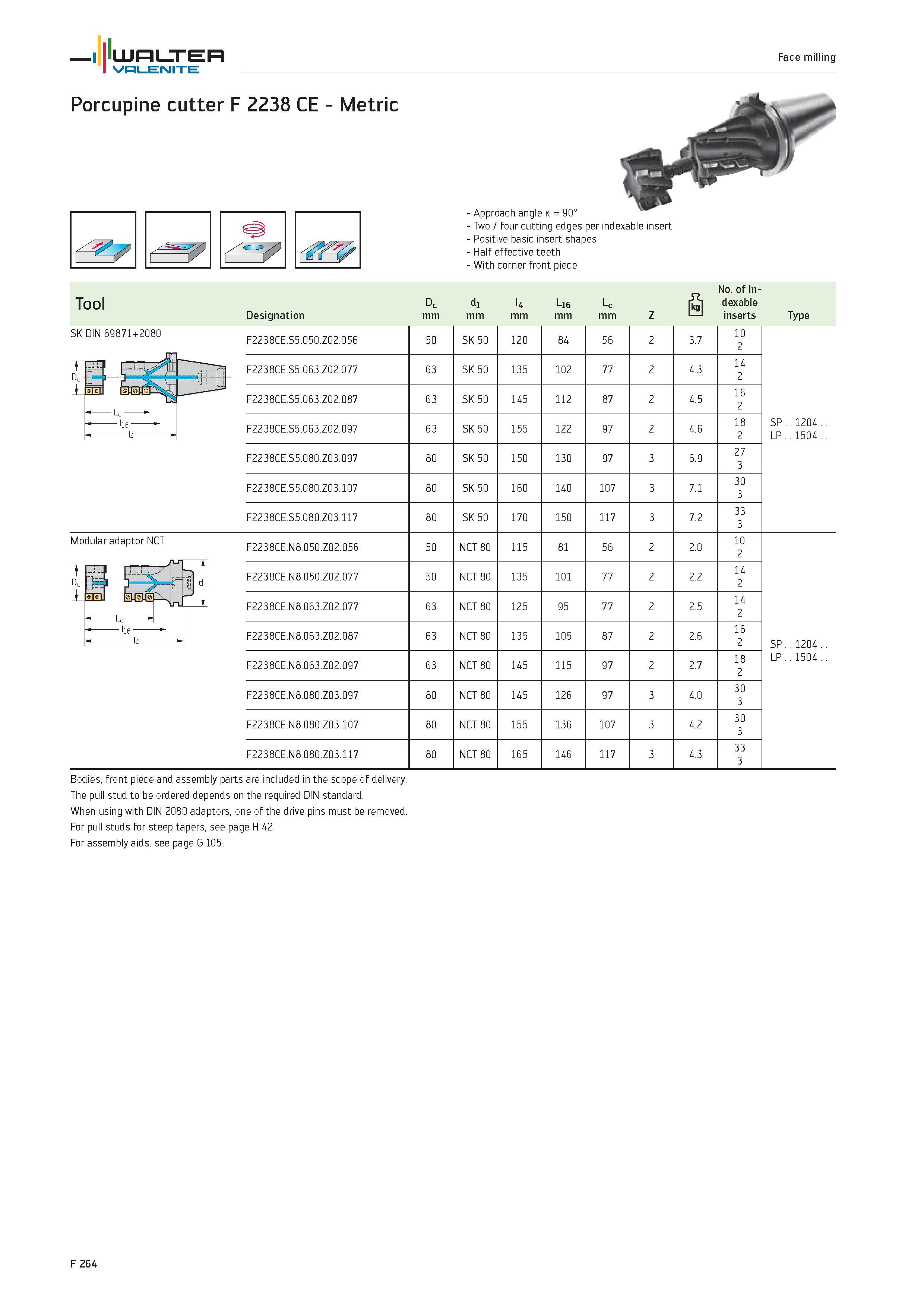

WALTER Valenite Face milling Porcupine cutter F 2238 CE Metric "7 Approach angle k 90° Two / four cutting edges per indexable insert Positive basic insert shapes Half effective teeth With corner front piece No. of In- Tool Dc di l4 L16 Lc Ikgl dexable Designation mm Z 1 1 inserts Type SK DIN 69871+2080 F2238CE.S5.05U.ZU2.U56 50 SK 50 120 84 56 2 3.7 10 2 SP..1204 LP..1504 F2238CE.S5.063.ZU2.U77 63 SK 50 135 102 77 2 4.3 14 2 F2238CE.S5.063.ZU2.U87 63 SK 50 145 112 87 2 4.5 16 2 F2238CE.S5.063.ZU2.U97 63 SK 50 155 122 97 2 4.6 18 2 F2238CE.S5.08U.ZU3.U97 80 SK 50 150 130 97 3 6.9 27 3 F2238CE.S5.080.Z03.107 80 SK 50 160 140 107 3 7.1 30 3 F2238CE.S5.080.Z03.117 80 SK 50 170 150 117 3 7.2 33 3 F2238CE.N8.050.Z02.056 50 NCT 80 115 81 56 2 2.0 10 2 SP..1204 LP..1504 F2238CE.N8.050.Z02.077 50 NCT 80 135 101 77 2 2.2 14 2 F2238CE.N8.063.Z02.077 63 NCT 80 125 95 77 2 2.5 14 2 F2238CE.N8.063.Z02.087 63 NCT 80 135 105 87 2 2.6 16 2 F2238CE.N8.063.Z02.097 63 NCT 80 145 115 97 2 2.7 18 2 F2238CE.N8.080.Z03.097 80 NCT 80 145 126 97 3 4.0 30 3 F2238CE.N8.080.Z03.107 80 NCT 80 155 136 107 3 4.2 30 3 F2238CE.N8.080.Z03.117 80 NCT 80 165 146 117 3 4.3 33 3 Modular adaptor NCT Bodies, front piece and assembly parts are included in the scope of delivery. The pull stud to be ordered depends on the required DIN standard. When using with DIN 2080 adaptors, one of the drive pins must be removed. For pull studs for steep tapers, see page H 42. For assembly aids, see page G 105. F 264
