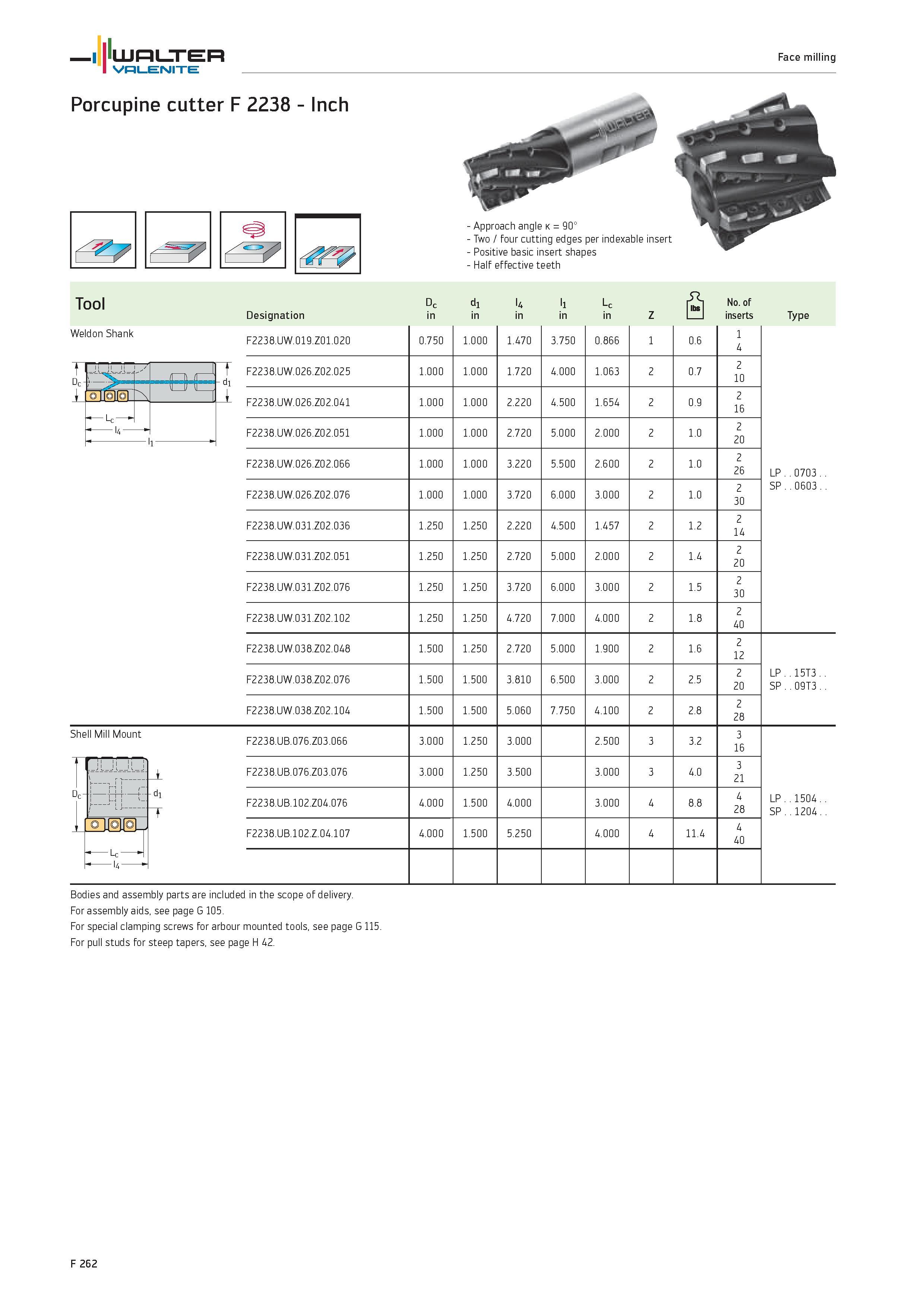

WALTER Valenite Face milling Porcupine cutter F 2238 Inch "7 Approach angle k 90° Two / four cutting edges per indexable insert Positive basic insert shapes Half effective teeth Tool Dc dl l4 ll Lc 2 No- of Designation in Z 1 1 inserts Type Weldon Shank F2238.UW.019.ZU1.U2U 0.750 1.000 1.470 3.750 0.866 1 0.6 1 4 LP..0703.. SP..0603.. F2238.UW.026.ZU2.U25 1.000 1.000 1.720 4.000 1.063 2 0.7 2 10 F2238.UW.026.ZU2.U41 1.000 1.000 2.220 4.500 1.654 2 0.9 2 16 F2238.UW.026.ZU2.U51 1.000 1.000 2.720 5.000 2.000 2 1.0 2 20 F2238.UW.026.ZU2.U66 1.000 1.000 3.220 5.500 2.600 2 1.0 2 26 F2238.UW.026.Z02.076 1.000 1.000 3.720 6.000 3.000 2 1.0 2 30 F2238.UW.031.Z02.036 1.250 1.250 2.220 4.500 1.457 2 1.2 2 14 F2238.UW.031.Z02.051 1.250 1.250 2.720 5.000 2.000 2 1.4 2 20 F2238.UW.031.Z02.076 1.250 1.250 3.720 6.000 3.000 2 1.5 2 30 F2238.UW.031.Z02.102 1.250 1.250 4.720 7.000 4.000 2 1.8 2 40 F2238.UW.038.Z02.048 1.500 1.250 2.720 5.000 1.900 2 1.6 2 12 LP 15T3 SP ..U9T3 F2238.UW.038.Z02.076 1.500 1.500 3.810 6.500 3.000 2 2.5 2 20 F2238.UW.038.Z02.104 1.500 1.500 5.060 7.750 4.100 2 2.8 2 28 F2238.UB.076.ZU3.U66 3.000 1.250 3.000 2.500 3 3.2 3 16 LP 1504 SP .1204.. F2238.UB.076.ZU3.U76 3.000 1.250 3.500 3.000 3 4.0 3 21 F2238.UB.102.ZU4.U76 4.000 1.500 4.000 3.000 4 8.8 4 28 F2238.UB.102.Z.04.107 4.000 1.500 5.250 4.000 4 11.4 4 40 Shell Mill Mount -Lc- -l4- Bodies and assembly parts are included in the scope of delivery. For assembly aids, see page G 105. For special clamping screws for arbour mounted tools, see page G 115. For pull studs for steep tapers, see page H 42. Lc U F 262
