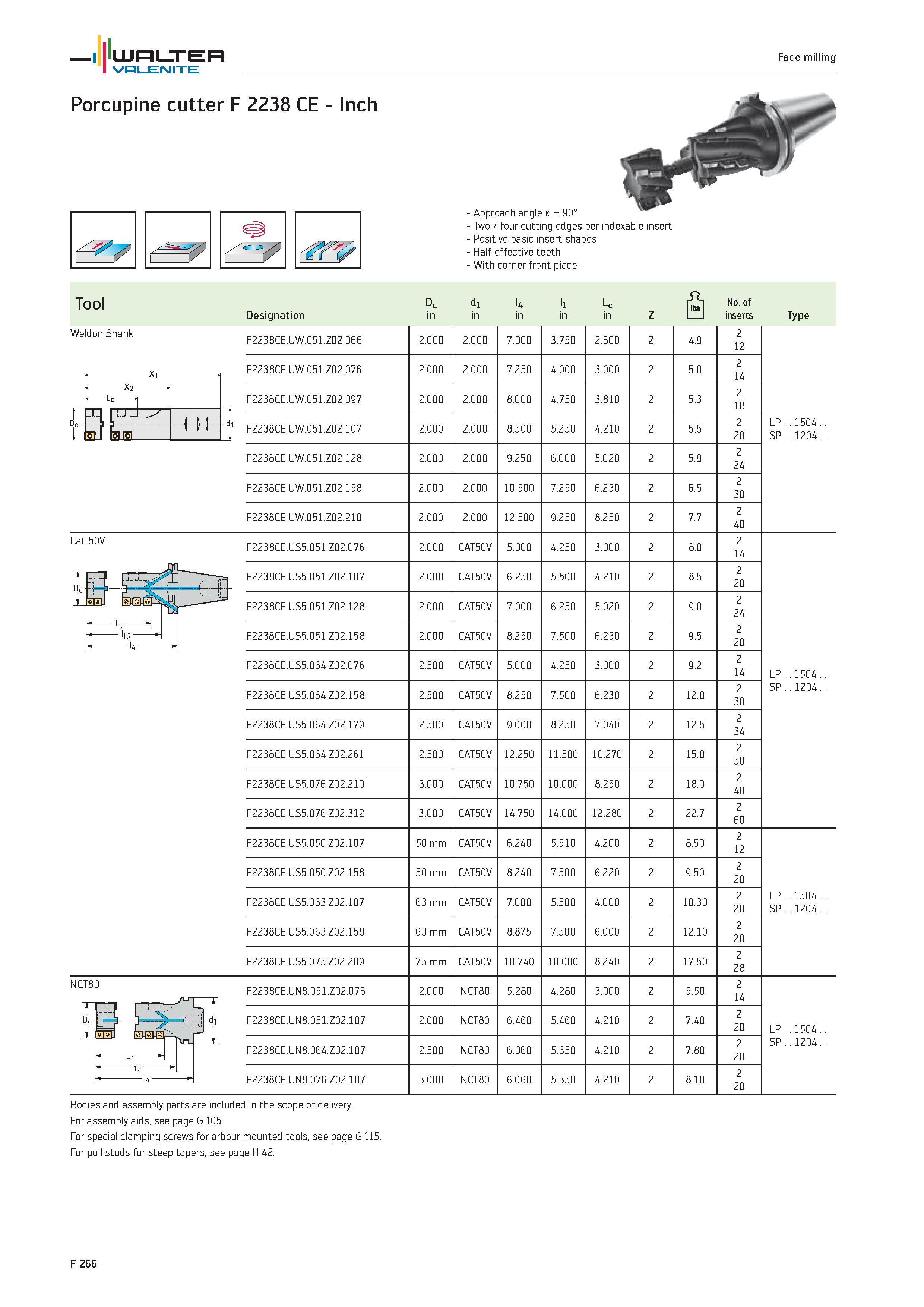

WALTER Valenite Face milling Porcupine cutter F 2238 CE Inch "7 Approach angle k 90° Two / four cutting edges per indexable insert Positive basic insert shapes Half effective teeth With corner front piece Tool Dc dl l4 ll Lc 2 No- of Designation in Z 1 1 inserts Type Weldon Shank J Li -BE F2238CE.UW.051.ZU2.U66 2.000 2.000 7.000 3.750 2.600 2 4.9 2 12 LP..1504.. SP .1204.. F2238CE.UW.051.ZU2.U76 2.000 2.000 7.250 4.000 3.000 2 5.0 2 14 F2238CE.UW.051.ZU2.U97 2.000 2.000 8.000 4.750 3.810 2 5.3 2 18 F2238CE.UW.051.ZU2.1U7 2.000 2.000 8.500 5.250 4.210 2 5.5 2 20 F2238CE.UW.051.ZU2.128 2.000 2.000 9.250 6.000 5.020 2 5.9 2 24 F2238CE.UW.051.Z02.158 2.000 2.000 10.500 7.250 6.230 2 6.5 2 30 F2238CE.UW.051.Z02.210 2.000 2.000 12.500 9.250 8.250 2 7.7 2 40 F2238CE.US5.051.Z02.076 2.000 CAT5UV 5.000 4.250 3.000 2 8.0 2 14 LP..1504.. SP .1204.. F2238CE.US5.051.Z02.107 2.000 CAT5UV 6.250 5.500 4.210 2 8.5 2 20 F2238CE.US5.051.Z02.128 2.000 CAT5UV 7.000 6.250 5.020 2 9.0 2 24 F2238CE.US5.051.Z02.158 2.000 CAT5UV 8.250 7.500 6.230 2 9.5 2 20 F2238CE.US5.064.Z02.076 2.500 CAT5UV 5.000 4.250 3.000 2 9.2 2 14 F2238CE.US5.064.Z02.158 2.500 CAT5UV 8.250 7.500 6.230 2 12.0 2 30 F2238CE.US5.064.ZU2.179 2.500 CAT5UV 9.000 8.250 7.040 2 12.5 2 34 F2238CE.US5.064.Z02.261 2.500 CAT5UV 12.250 11.500 10.270 2 15.0 2 50 F2238CE.US5.076.Z02.210 3.000 CAT5UV 10.750 10.000 8.250 2 18.0 2 40 F2238CE.US5.076.Z02.312 3.000 CAT5UV 14.750 14.000 12.280 2 22.7 2 60 F2238CE.US5.050.Z02.107 50 mm CAT5UV 6.240 5.510 4.200 2 8.50 2 12 LP .1504.. SP .1204.. F2238CE.US5.050.Z02.158 50 mm CAT50V 8.240 7.500 6.220 2 9.50 2 20 F2238CE.US5.063.Z02.107 63 mm CAT50V 7.000 5.500 4.000 2 10.30 2 20 F2238CE.US5.063.Z02.158 63 mm CAT50V 8.875 7.500 6.000 2 12.10 2 20 F2238CE.US5.075.Z02.209 75 mm CAT50V 10.740 10.000 8.240 2 17.50 2 28 F2238CE.UN8.051.Z02.076 2.000 NCT8U 5.280 4.280 3.000 2 5.50 2 14 LP..1504.. SP .1204.. F2238CE.UN8.051.Z02.107 2.000 NCT8U 6.460 5.460 4.210 2 7.40 2 20 F2238CE.UN8.064.Z02.107 2.500 NCT8U 6.060 5.350 4.210 2 7.80 2 20 F2238CE.UN8.076.Z02.107 3.000 NCT8U 6.060 5.350 4.210 2 8.10 2 20 Cat 50V Dc u NCT8U Bodies and assembly parts are included in the scope of delivery. For assembly aids, see page G 105. For special clamping screws for arbour mounted tools, see page G 115. For pull studs for steep tapers, see page H 42. L F 266
