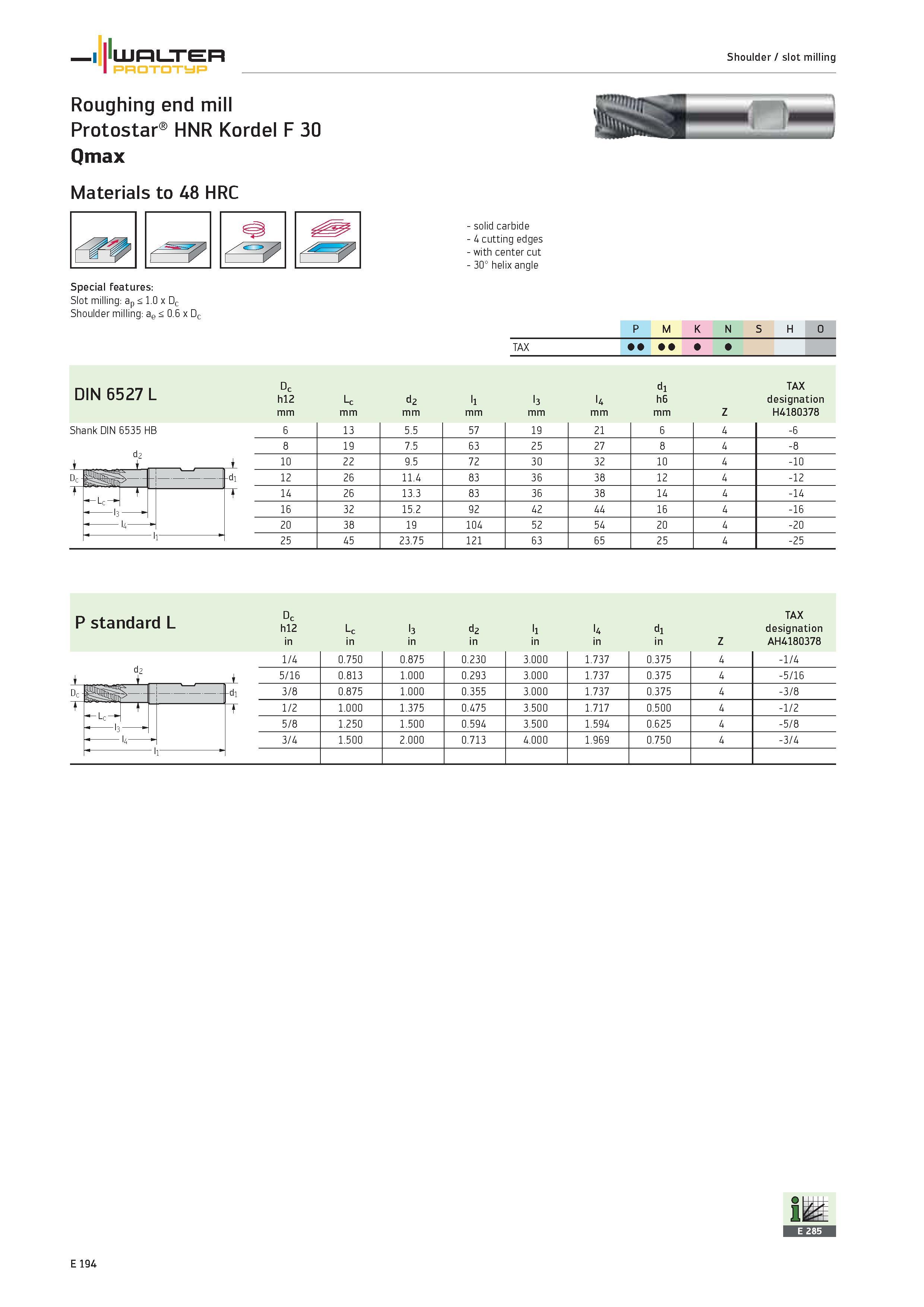

WALTER PROTOTYP Shoulder / slot milling Roughing end mill Protostar HNR Kordel F 30 Qmax Materials to 48 HRC 7 Special features Slot milling ap < 1.0 x Dc Shoulder milling ae < 0.6 x Dc solid carbide 4 cutting edges with center cut 30° helix angle 1 P M K N S H O TAX DIN 6527 L Shank DIN 6535 HB d1 TAX h12 Lc d2 l1 l3 l4 h6 designation mm Z H4180378 6 13 5.5 57 19 21 6 4 -6 8 19 7.5 63 25 27 8 4 -8 10 22 9.5 72 30 32 10 4 -10 12 26 11.4 83 36 38 12 4 -12 14 26 13.3 83 36 38 14 4 -14 16 32 15.2 92 42 44 16 4 -16 20 38 19 104 52 54 20 4 -20 25 45 23.75 121 63 65 25 4 -25 D c P standard L TAX Lc t t 13 l4 h12 Lc l3 d2 l1 U d1 designation in Z AH4180378 1/4 0.750 0.875 0.230 3.000 1.737 0.375 4 -1/4 5/16 0.813 1.000 0.293 3.000 1.737 0.375 4 -5/16 3/8 0.875 1.000 0.355 3.000 1.737 0.375 4 -3/8 1/2 1.000 1.375 0.475 3.500 1.717 0.500 4 -1/2 5/8 1.250 1.500 0.594 3.500 1.594 0.625 4 -5/8 3/4 1.500 2.000 0.713 4.000 1.969 0.750 4 -3/4 D c
