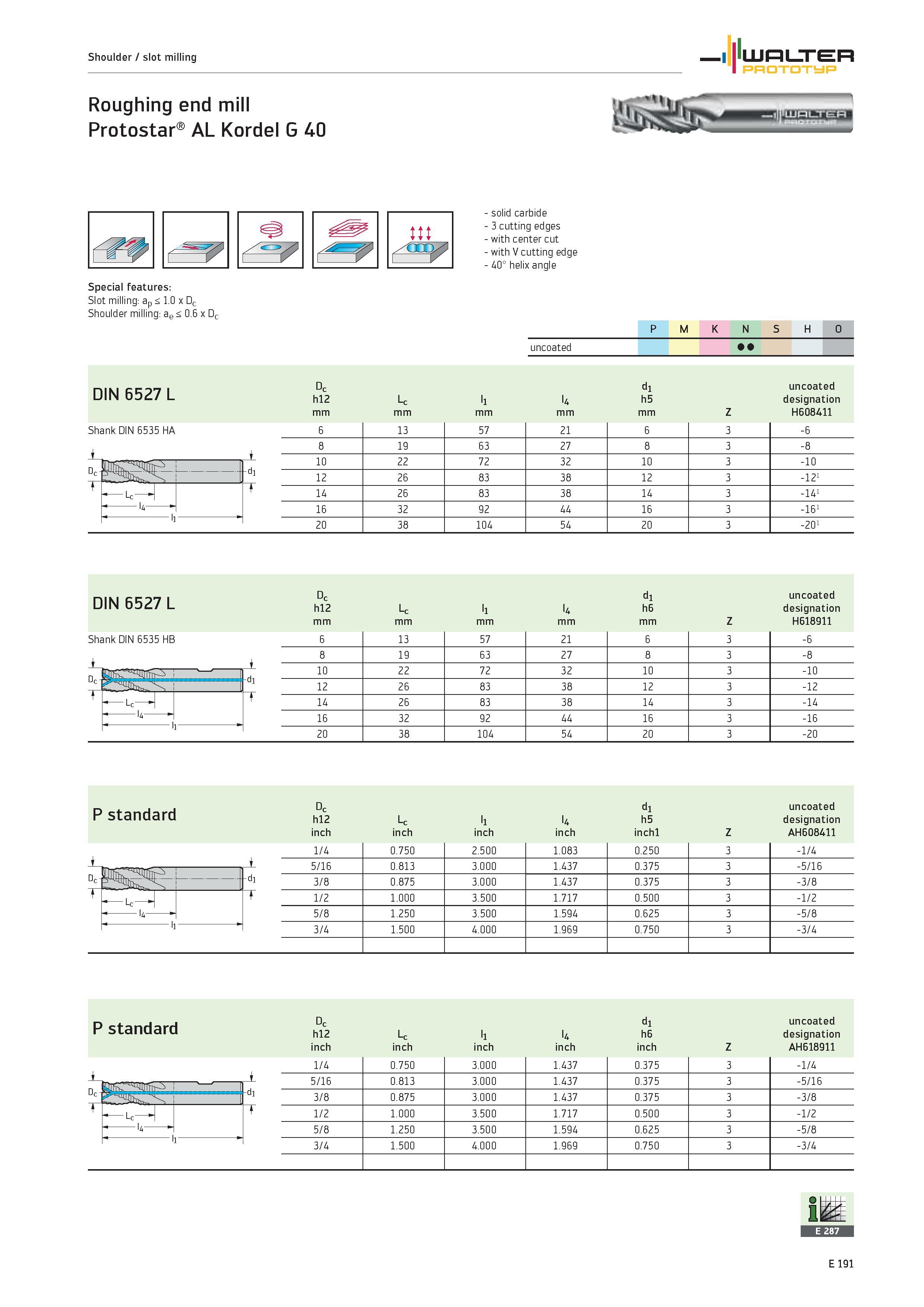

WALTER PROTOTYP Shoulder / slot milling Roughing end mill Protostar AL Kordel G 40 solid carbide 3 cutting edges with center cut with V cutting edge 40° helix angle Special features Slot milling ap < 1.0 x Dc Shoulder milling ae < 0.6 x Dc 1 P M K N S H O uncoated DIN 6527 L Dc h12 mm c mm l1 mm U mm d1 h5 uncoated designation H608411 Shank DIN 6535 HA 6 13 57 21 6 3 -6 8 19 63 27 8 3 -8 10 22 72 32 10 3 -10 Del -d 12 26 83 38 12 3 -121 t Lc -1 T 14 26 83 38 14 3 -141 16 32 92 44 16 3 -161 4 20 38 104 54 20 3 -201 Z mm DIN 6527 L c12 m q e Lc mm l1 mm U mm d1 h6 mm Z uncoated designation H618911 Shank DIN 6535 HB 1 6 13 57 21 6 3 -6 8 19 63 27 8 3 -8 T 10 22 72 32 10 3 -10 Dc SES ; d 12 26 83 38 12 3 -12 Lc -I T 14 26 83 38 14 3 -14 16 32 92 44 16 3 -16 20 38 104 54 20 3 -20 P standard Dc h12 inch Lc inch l1 inch U inch d1 h5 inch1 Z uncoated designation AH608411 1/4 0.750 2.500 1.083 0.250 3 -1/4 5/16 0.813 3.000 1.437 0.375 3 -5/16 Dei d 3/8 0.875 3.000 1.437 0.375 3 -3/8 t Lc t 1/2 1.000 3.500 1.717 0.500 3 -1/2 5/8 1.250 3.500 1.594 0.625 3 -5/8 l 3/4 1.500 4.000 1.969 0.750 3 -3/4 P standard d Dc h12 inch Lc inch l1 inch l4 inch h1 Z uncoated designation AH618911 1/4 0.750 3.000 1.437 0.375 3 -1/4 5/16 0.813 3.000 1.437 0.375 3 -5/16 3/8 0.875 3.000 1.437 0.375 3 -3/8 1/2 1.000 3.500 1.717 0.500 3 -1/2 5/8 1.250 3.500 1.594 0.625 3 -5/8 3/4 1.500 4.000 1.969 0.750 3 -3/4 Dc Lc E 191
